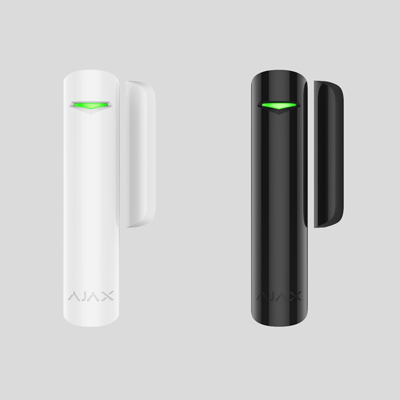

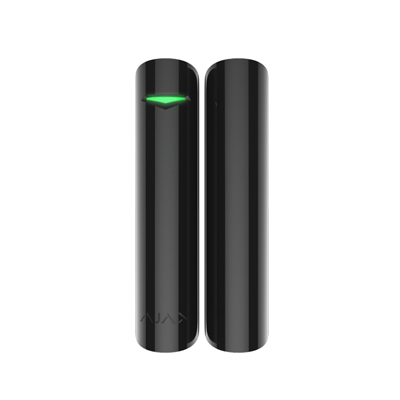

DoorProtect
Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features

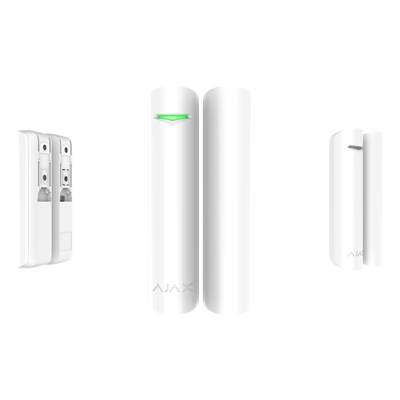

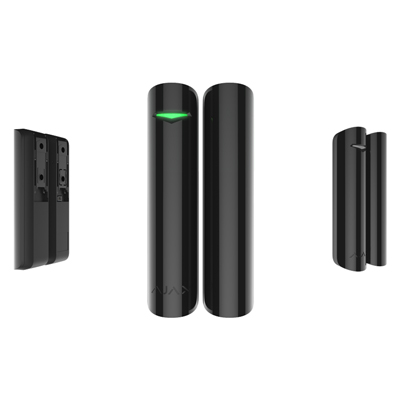

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up

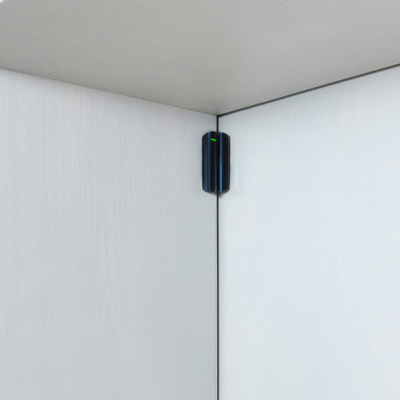

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Type of detector | Wireless |
|---|
| Installation method | Indoors |
|---|---|
| Compatibility | Operates with Hub, Hub Plus, ocBridge Plus, uartBridge |
| Sensing element | Reed switch |
| Alarm signal delivery time | 0.15 s |
| Temperature sensor | Available |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Activation threshold | Small magnet — 1 cm Big magnet — 2 cm |
| Classification | Point magnetic and contact radio channel security detector |
| Weight | 29 g |
|---|---|
| Dimensions | Diameter: 20 mm Height: 90 mm |
