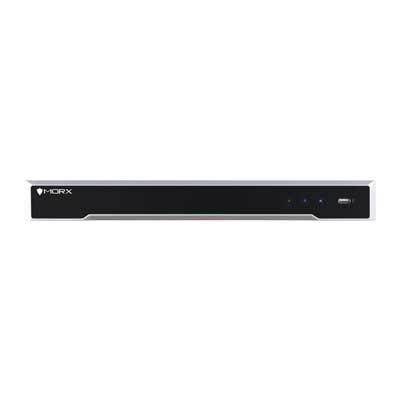

Sweep barriers with the model of the 16-channel 4K network recorder, which allows high-quality recording from widescreen IP surveillance cameras of eight megapixel resolution. The parameters of the incoming and outgoing stream are respectively 160 and 160 megabits per second. In addition to a maximum of eight megapixel resolution, support is also in the formats 5, 3, 2, 1 megapixels. Guaranteed recording in smaller resolutions: 2CIF, VGA, 4CIF, DCIF, QCIF, CIF. Environment features support alarm detection VCA and VCA search.
The image is displayed on a monitor or TV screen through a connection via HDMI (up to 4K (3840x2160)) and a VGA (1920x1080p) connector. Playback is possible on four 4K channels and 16 channels of 1080p format. To organize storage on board the recorder, there are two slots for connecting two hard drives with a maximum capacity of 8TB each. A network connection is made through the gigabit RJ45 port (10M / 100M / 1000M).
The recorder complements the presence of four alarm inputs and one output, thereby allowing for joint work with equipment from the alarm systems. To supply power, you need an adapter with a working DC voltage of 12 volts. The power consumption is 15 watts.
Professional and Reliable
New Logical and Visualized GUI Design
Dual-OS Design to Ensure High Reliability of System Running
ANR Technology to Enhance the Storage Reliability When the Network is Disconnected
Video Input and Transmission
Up to 16-ch 12 MP IP Cameras can be Connected
Connectable to the Third-Party Network Cameras
Compression and Recording
H.265+ Compression Effectively Reduces the Storage Space up to 75%
Full Channel Recording at up to 12MP Resolution
HD Video Output
HDMI and VGA Independent Outputs Provided
HDMI Video Output at up to 4K (3840 × 2160) Resolution
Storage and Playback
Up to 2 SATA Interfaces for HDD Connection
Smart Search for Efficient Playback
8/16-ch Synchronous Playback at up to 1080p Resolution
Normal/Important/Custom Video Playback
Important Files Management
HDD Health Monitoring
Smart &POS Function
Supports Multiple VCA (Video Content Analytics) Events
Smart Search for the Selected Area in the Video; and Smart Playback to Improve the Playback Efficiency
Supports VCA Search for Fire/Ship/Temperature/Temperature Difference Detection Triggered Video Files
POS Information Overlay on Live View and Playback
POS Triggered Recording and Alarm
Network & Ethernet Access
Morx-Connect for Easy Network Management
Gigabit Ethernet Network Interface
| IP Video Input | 16-ch |
|---|---|
| Up to 12 MP Resolution | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Incoming Bandwidth | 160 Mbps |
|---|---|
| Outgoing Bandwidth | 256 Mbps |
| Remote Connection | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| CVBS Output (Optional) | 1-ch, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI Output Resolution | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output Resolution | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding Format | H.265/ H.265+/H.264/H.264+/MPEG4 |
|---|---|
| Live View / Playback Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/ VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) |
| Network Protocols | TCP/IP, DHCP, Morx-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
|---|
| SATA | 2 SATA Interfaces for 2HDDs |
|---|---|
| Capacity | Up to 8TB Capacity for Each HDD |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
|---|---|
| USB Interface | Front Panel: 1 × USB 2.0; Rear Panel: 1 × USB 3.0 |
| Alarm in/out | 4/1 |
| Power Supply | 12 VDC |
|---|---|
| Power | ≤ 40 w |
| Consumption (Without Hard Disk) | ≤ 15 w |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 385 mm Chassis |
| Dimensions(W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
| Weight (Without Hard Disk) | ≤ 3 kg (6.6 lb) |
