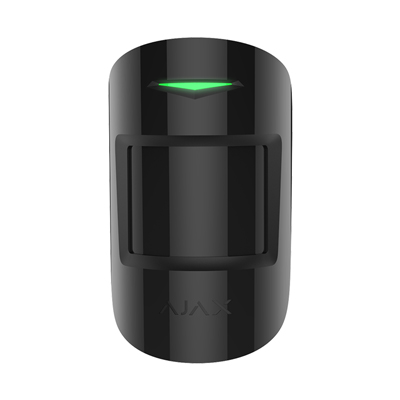

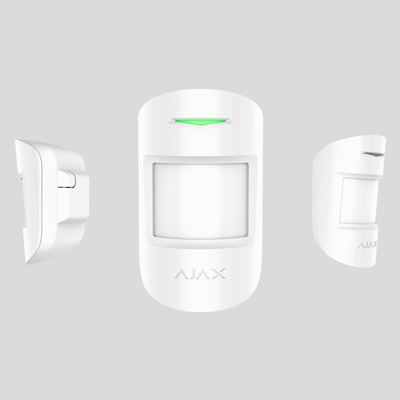

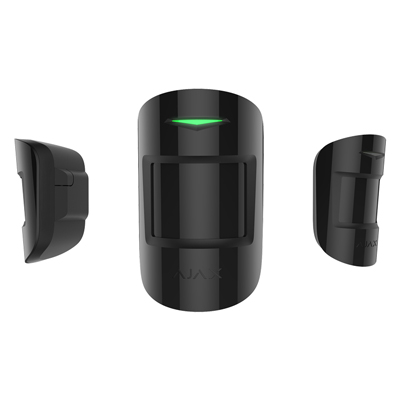

Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion. Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections.
Principle of operation
Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference.
Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections.
Installation and set up

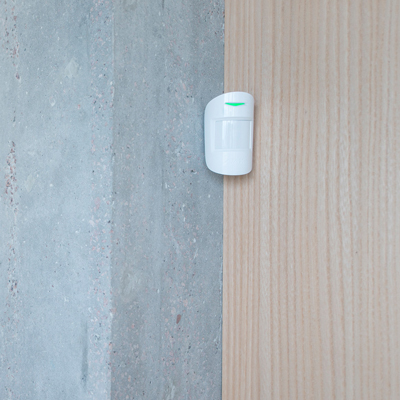

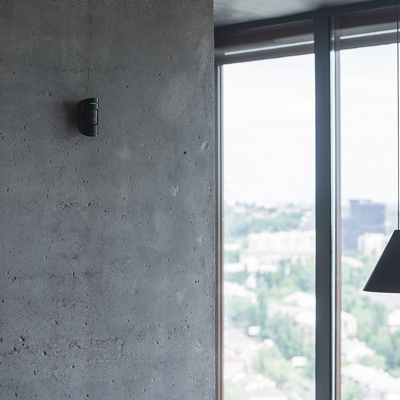

Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the SmartBracket mount.
|Type of detector||Wireless|
|Compatibility||Operates with Hub, Hub Plus, ocBridge Plus, uartBridge|
|Sensing element||PIR sensor, microwave sensor (24 GHz)|
|Alarm signal delivery time||0.15 s|
|Motion detection distance||Up to 12 m|
|Detection angles||Horizontal — 88.5° Vertical — 80°|
|Sensitivity||Adjustable, 3 levels|
|Recommended installation height||2.4 m|
|Pet immunity||Weight — up to 20 kg Height — up to 50 cm|
|Permissible humidity||Up to 75%|
|Anti-sabotage||Protection against fraud Jamming detection Tamper-resistant|
|Classification||Electro-optical combined radio channel security detector|
|Power supply||Battery: CR123A battery Power supply voltage: 3 V Battery life — up to 7 years|
