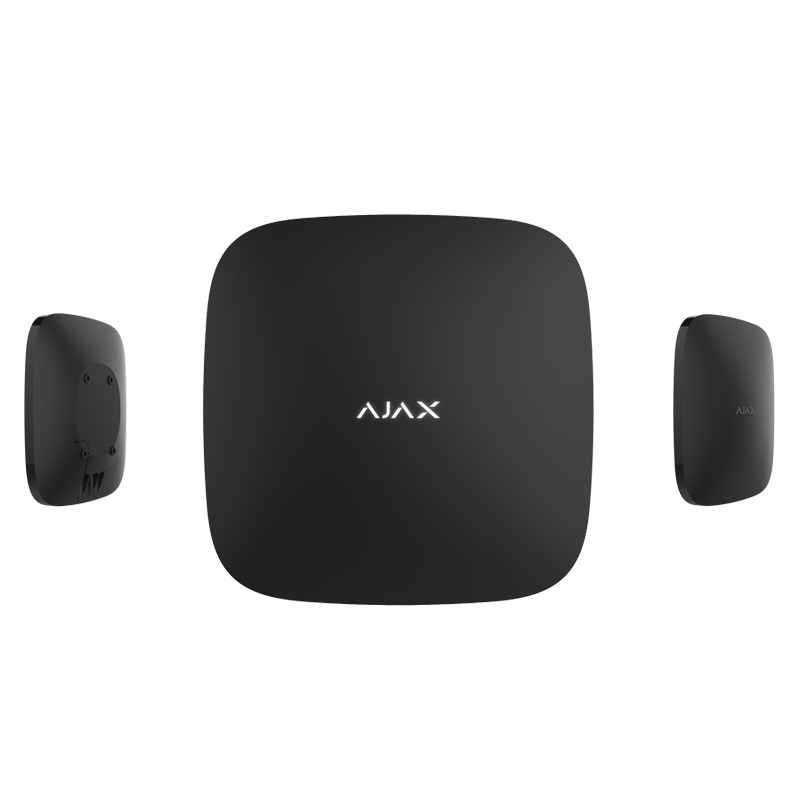

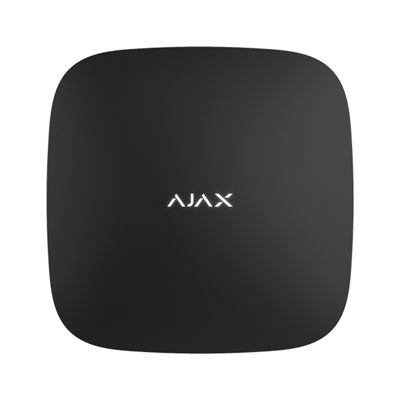

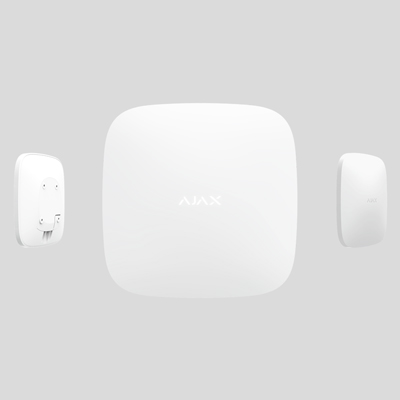

Ajax-hub
The Hub intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station.
Principle of operation
The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds.
Features
The device uses Jeweller radio technology to monitor the detectors and ensure a quick response to danger. It switches the entire system to clear frequencies during jamming. The device is protected against viruses at software level.
Installation and set up

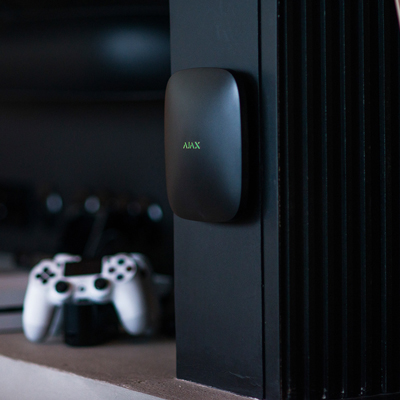

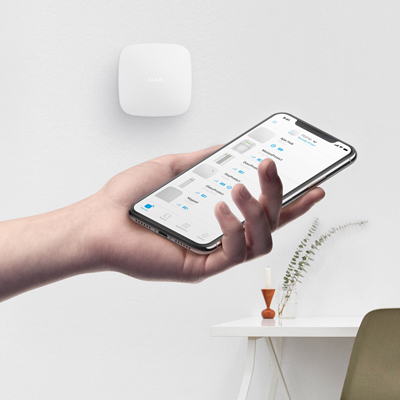

Ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.
| SIM card support | Yes |
|---|
| Maximum number of devices connected to the hub | 99 |
|---|---|
| Maximum number of users | 50 |
| Maximum number of rooms | 50 |
| Maximum number of groups | 9 |
| Mobile applications | iOS 9.1 and later Android 4.1 and later |
| Communication channels | Ethernet, GSM (850/900/1800/1900 MHz) |
| Alarm signal | Delivery time: 0.15 s Types of notifications: SMS message, call, push |
| Communication with Central Monitoring Station | Contact ID |
| Operating temperature range | +5°С to +40°С |
| Video surveillance | IP video cameras with RTSP |
| Classification | The radio channel central unit with GSM and Ethernet modules |
| Power supply | Mains supply: 110−250 V Battery backup: Li-Ion 2 А/h Up to 15 hours of offline operation when Ethernet is switched off |
|---|---|
| Weight | 350 g |
| Dimensions | 162.7×162.7×35.9 mm |
| Processor | ARM |
| Operating System | Hub OS |
| Jeweller radio technology | Communication range with detectors — up to 2,000 m in an open space Two-way communication between devices Operating frequencies — 868.0-868.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Frequency hopping |
