ML-15HR
Outdoor panel with output of signal on the DVR for recording on motion
Color CMOS camera
Backlight of the button
Resolution 800 TVL
First impression

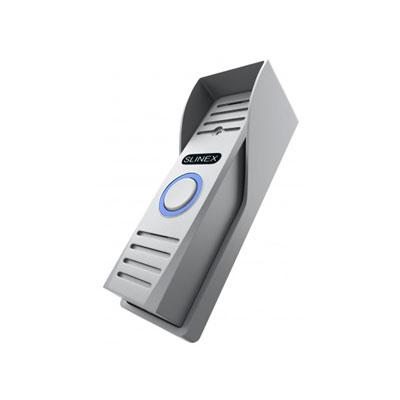

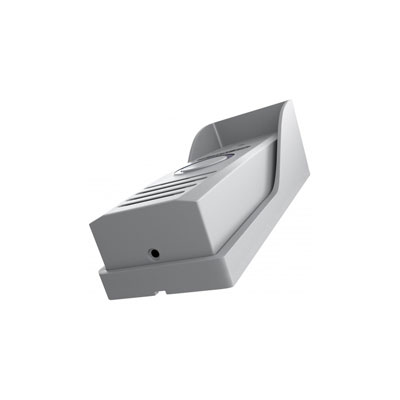

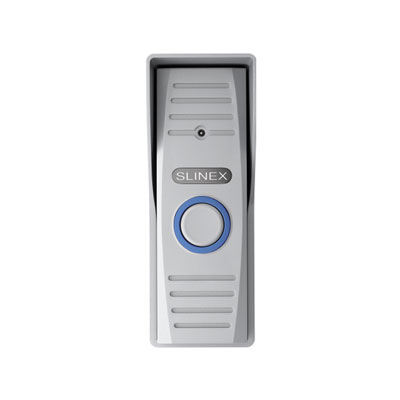

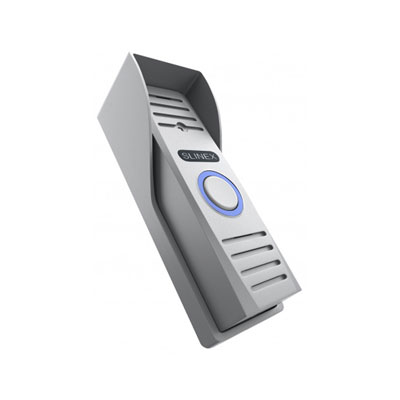

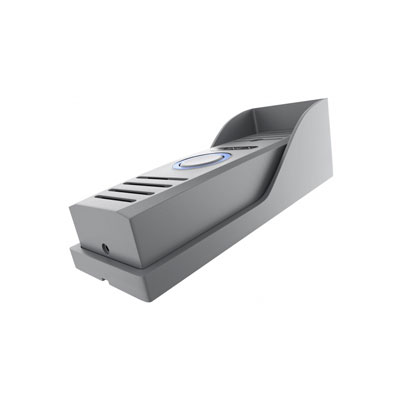

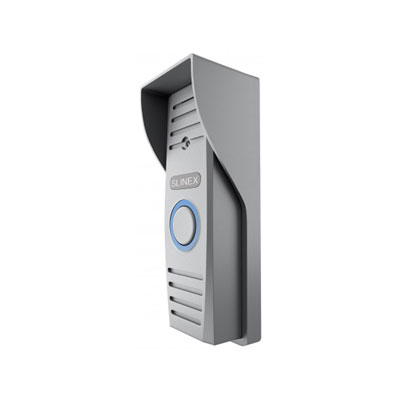

Slinex МL-15HR is a classic individual outdoor panel in common form factor "Tower". Outwardly, it does not stand out, because all the most interesting and useful parts are placed inside. The device’s body is made of extra strong metal alloy presented in several colors.
Due to some features, which we will discuss further on, the ML-15HR is a unique outdoor panel in its price segment.
Where to use
Thanks to its exterior, the panel is very versatile in use. You can install it both in an office building at the entrance to the floor or cabinet or at the gate on the driveway to a private house. Regardless of the installation place, the panel will be a reliable assistant to your security and provide access control to the building.
This model has several important distinctions from others. The first feature is the presence of a constant video signal. In most panels, photo/video recording starts when the call button is pressed or after the motion detecting function is activated. An ML-15HR has a special power wire for the camera within the panel, through which it can be powered from a separate power source and receive a video signal continuously. The presence of constant signal gives the opportunity to record video to other devices, for example DVR (Digital Video Recorder), without interruption. The recording will be performed regardless of whether the call was made from the panel.
Another distinguishing characteristic is a camera with an improved resolution. While camera resolution is typically 420 TV lines in the same price range with ML-15HR, this device has the feature of 800 TVL.
Additionally
Rain cover
Angle
Unique Features
Backlight of the button
Output of signal on the DVR for recording on motion
| Horizontal viewing angle | 138º |
|---|---|
| Device type | Outdoor panel for 2 subscribers |
| Body structure | Metal alloy |
| Camera resolution | 960 TVL |
| Type of sensor | 1/4" CMOS |
| Protection class | IP65 |
| Dimensions | 110×185×34 mm |
| Cards type | EM-Marin, Mifare, and NFC |
| Power supply | +12V |
| Operating temperature | -40 – +65 °С |
| Memory capacity | 248 user cards |
| Colors | Silver |
| Night backlight | IR LED, up to 1.5 m |
| Minimal illumination | 0,01 Lux |
