$81.00 $101.00

Anti-vandal outdoor panel in a classic body

Compact design сolor

CMOS camera

Resolution 800 TVL

First acquaintance

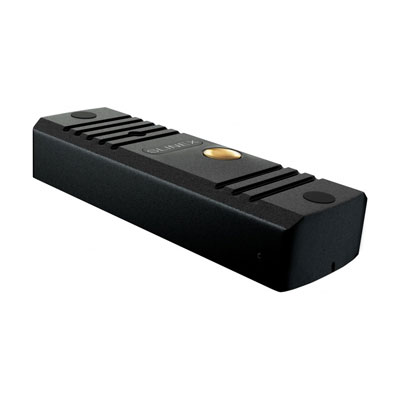

Slinex ML-16HR is a compact single-user outdoor panel in a classic body. The panel has many advantages such as increased camera resolution of 800 TVL, a unique intelligent IR illumination, anti-vandal body, and color CMOS sensor.

The panel can be called the golden mean, combining the balance of functionality, great exterior, and moderate price. ML-16HR is an analogue outdoor panel, but you can easily convert it into IP with the help of a specially designed adapter Slinex XR-30IP.

Where it can be used

This panel is suitable for use inside any room or outside the building. You can install it as an additional protection in front of the apartment door in a multistoried building or mount it in front of the entrance to a private house. Due to its small size (41×122×23 mm), the panel can easily be placed in narrow apertures from 5 cm in width. The panel is designed for connection to 4-wire intercoms.

The operating temperature range is quite wide; it does not lose its productivity characteristics in the mode from -40˚С to +65˚С.

The main feature is its unique capacity to recognize the time when camera illuminating is necessary. The panel has the built-in light sensor responsible for controlling the IR highlight. The range of illumination is more than one meter, ensuring the acquired image and video are sufficient for face recognition even in the darkness.

Another feature is the presence of two possible methods of installation: a wall-mount and flush-mount.

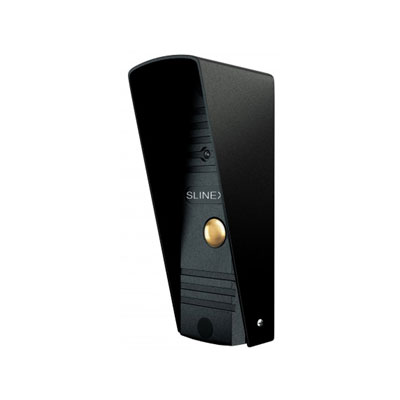

Rain cover

Angle bracket

Flush mount bracket

Horizontal viewing angle 65º
Type of sensor 1/3" CMOS
Protection class IP65
Camera resolution 800 TVL
Night backlight IR LED, up to 1.5 m
Power supply 12V DC
Dimensions 41×122×23 mm
Minimal illumination 0.01 Lux
Colors Black
Operating temperature -40 – +65 °С
Body structure Metal alloy
