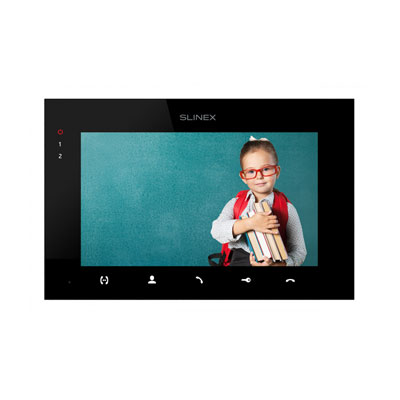

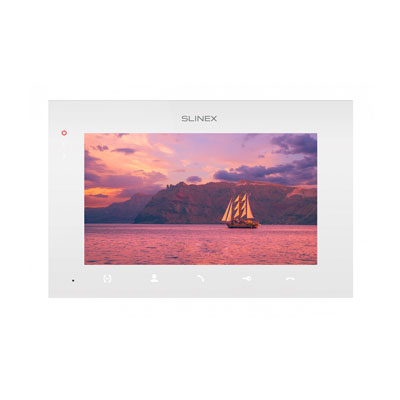

SQ-07MT
AHD ultra-thin and functional monitor
Software motion detection
Touch screen
Support AHD, CVBS, TVI, CVI
Setting the duration of the call
The intercom has not only an ultra-thin body but also a touch screen. Now it is even more convenient, faster and easier to control your intercom. SQ-07MT HD is equipped with motion detection software. By configuring the detection on any of the cameras or outdoor panels the monitor will respond to motion and automatically record video on an external memory.
Additionally
Three volume modes according to time
Mode “Do not disturb”
Unique Features
Support for call panels and high-resolution cameras of standards AHD, CVBS, TVI, CVI, with a resolution of up to 1080p (2 megapixel)
MP3 ringing tones
Software motion detection
Call melody duration setting
Photo frame
Time display in standby mode
Turn off button’s backlight
| Display | 7”, color TFT with touch screen |
|---|---|
| Dimensions | 197×127×20 mm |
| Screen resolution | 1024×600 |
| Outdoor panels quantity | 2 |
| Additional video cameras quantity | 2 |
| Memory | Support of microSD card up to 64GB |
| Power consumption | Up to 7 W |
| Power supply | AC 100-240V or DC 13.5V |
| Intercom | SL-10MT HD, SL-07MT HD, SQ-07MT HD, SM-07M, SQ-04M, up to 4 monitors in the intercom. |
| Installation type | Wall mount |
| Colors | White Black |
