MORX CC04 Four Port Fixed Reader
UHF Solution
- Four Port Fixed Reader
- Impinj E710 chip engine
- Max inventory speed 800 tags/s
- Support multiple c#, java, vc language for development
- Communication : USB, RS232, TCP/IP, GPIO
- Operating Voltage DC 12V/2A power adapter
Asset Tracking
Inventory
LAN Connection
RFID
UHF
USB
Warehouse
Online Support 24/7
- RFG CC04 is a UHF four‑port fixed reader built on the Impinj E710 engine, designed for high‑speed, high‑volume RFID applications.
- Supports up to 800 tag inventories per second, making it suitable for dense tag environments such as warehouses and production lines.
- Die‑cast aluminum housing with IP55 protection ensures reliable operation in industrial and semi‑outdoor conditions.
- Provides flexible deployment with four external antenna ports, allowing coverage of multiple zones or portals from a single reader.
- Supplied with SDK, demo software, and APIs to simplify integration into enterprise and industrial systems.
- UHF operation in 902–928 MHz (US) and 865–868 MHz (EU), compliant with ISO 18000‑6C / EPC GEN2, RF output power adjustable from 0–33 dBm.
- High inventory performance: up to 800 tags/s, with data cache for 600 EPCs (128‑bit) and reading distance up to 25 m (depending on antenna and tags).

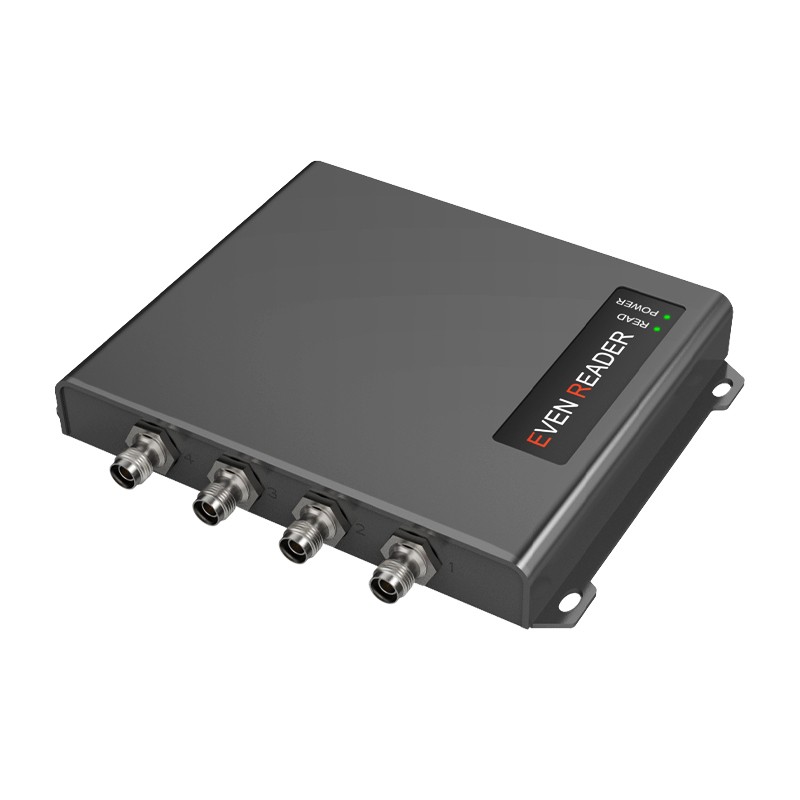

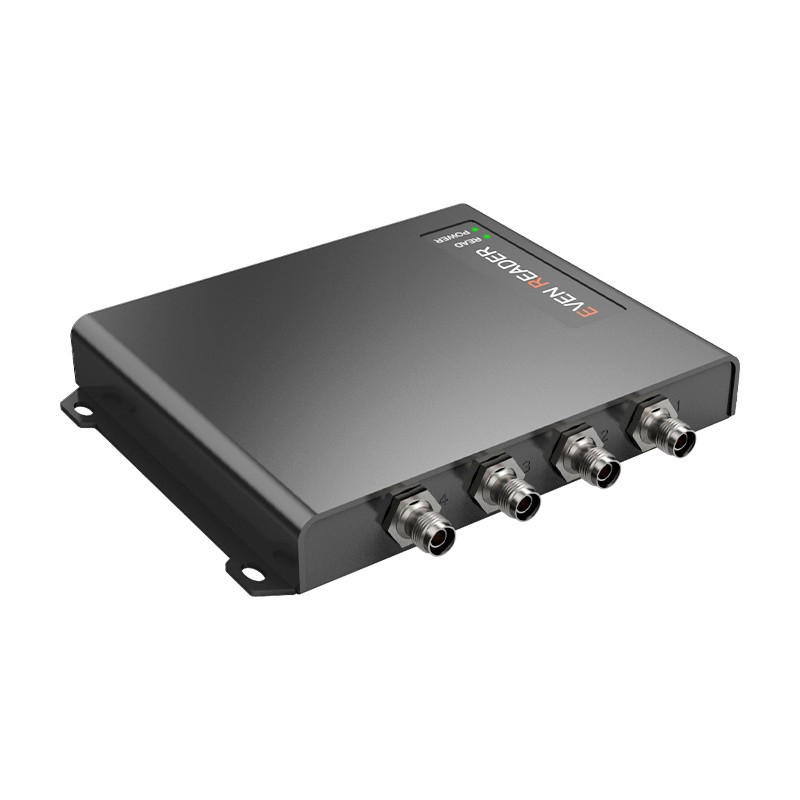

- Four RP‑TNC female antenna ports supporting multi‑antenna anti‑collision polling inventory.

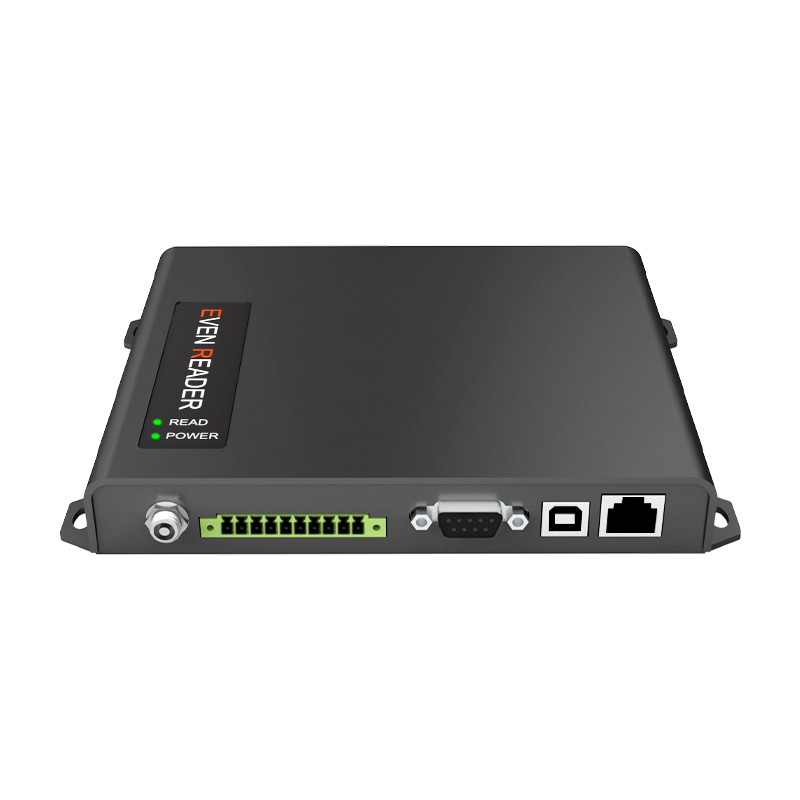

- Interfaces: USB, RS232, TCP/IP, GPIO, with optional PoE (mode A/mode B af), plus 2× GPI and 2× GPO for external device control.
- Compact die‑cast aluminum enclosure (184 × 161.7 × 26 mm), 12 V/2 A supply, IP55, −10 °C to +60 °C operation, remote firmware upgrade, and SDK for C#, Java, VC, Android.
- Warehouse inventory management using multiple antennas at dock doors, aisles, and pallet positions.
- Production control and WIP tracking on manufacturing lines with zone‑based reading and GPIO‑triggered events.
- Asset tracking systems for tools, equipment, and returnable transport items across large facilities.
- Laundry and textile management with antennas mounted at chute entries, conveyors, and sorting points.
- Intelligent cabinet and waste collection management where multiple antennas cover compartments, bins, or collection points.
| Engine | Impinj E710 chip |
| Frequency | 902~928MHz (US), 865~868MHz (EU) |
| Protocol | ISO18000-6C (EPC GEN2) |
| RF Output Power | 0dbm—33dbm(adjustable) |
| Inventory speed | 800 tags/s |
| Data Cache | 600pcs @ 128bits EPC |
| Reading Distance | 0—25 meter |
| Anti-collision | Multi-antenna ports, polling fast inventory |
| Work Mode | Active mode, Answer mode |
| RSSI | Support |
Physical Specification
| Material | Die-cast Aluminum |

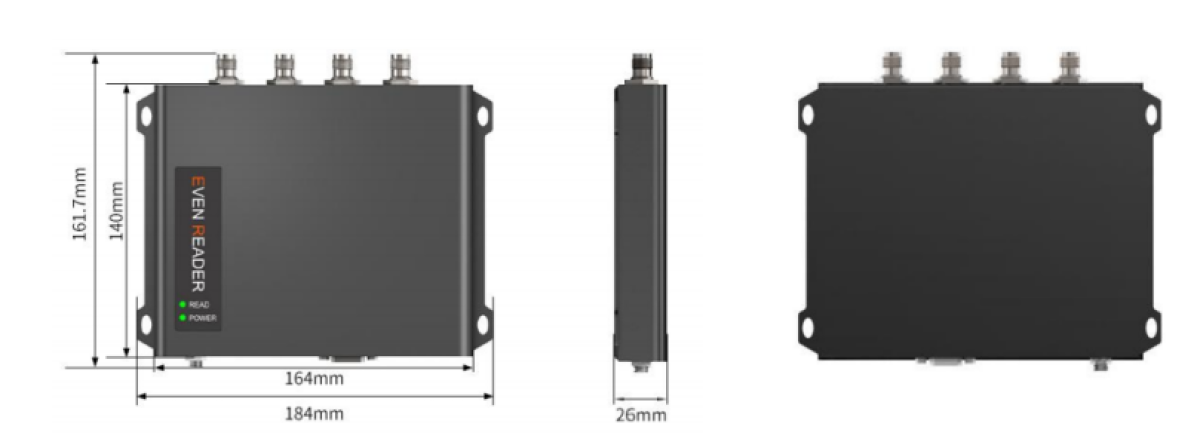

| Dimension | 184*161.7*26mm |
| Net Weight | 0.6kg |
| Package size | 200*255*100mm |
| Gross weight | 1.3kg |
Data Communication

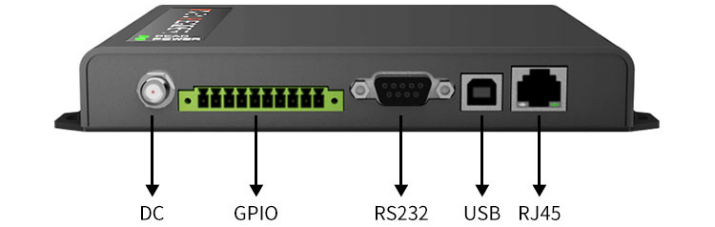

| Standard Interface | USB, RS232, TCP/IP, GPIO |
| Customized Interface | POE(mode A/mode B af) |
| GPIO Interface | 2 sets of GPI & 2 sets of GPO |
| Antenna Port | 4 Channel RP TNC Female |
| Power Supply | 12V 2 A |
| Current Consumption | 0.5~1.2A |
Development Environment
| SDK | Include Demo Software, API, Sample, User Manual |
| Development Language | Support C#, java-jni, java-linux, VC, Android |
| Hardware Firmware | Support Remote upgrade |
Working Environment
| IP Grade | IP55 |
| Operating temperature | -10-+60o C |
| Storage temperature | -20-+75o C |
