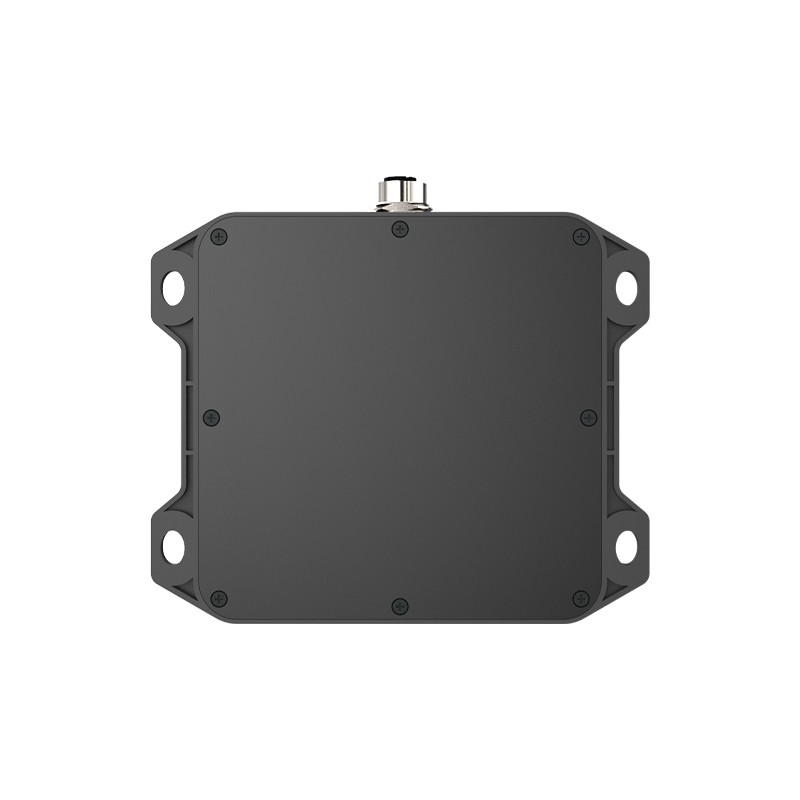

MORX UHF Industrial Reader

MORX UHF Industrial Reader

MORX UHF Industrial Reader

UHF Solution

Morx

UHF Industrial Grade Reader

  • Communication Interface:RS232/RS485/RJ45/POE (optional)
  • Reading distance: 0~2m (related to card reader parameter configuration and tag type)
  • GPIO: 2 sets of trigger signal input, 2 sets of relay signal output
RFID

RFID

TCP IP

TCP IP

UHF

UHF

Online Support 24/7

Online Support 24/7

  • UHF Industrial Reader is a 2 m range, industrial‑grade UHF RFID reader designed for automated production lines and harsh environments.
  • Built with an IP67‑rated enclosure, it withstands dust, moisture, and extreme temperatures for reliable 24×7 operation.
  • Optimized for short‑to‑medium range identification, making it ideal for station‑level tagging and verification rather than long‑range portals.
  • Supports industrial protocols like Modbus and Profinet (customized), enabling direct integration with PLCs and factory automation systems.
  • Compact form factor with built‑in antenna allows easy mounting on machines, conveyors, and fixtures close to the read point.
  • Compliant with EPC Global UHF Class 1 Gen2 / ISO 18000‑6C, operating in 865–868 MHz (EU) and 902–928 MHz (US) bands with RF power adjustable from 0–33 dBm.
  • Built‑in 5 dBi antenna providing 0–2 m read range and 0–1 m write range, depending on configuration and tag type.
  • Industrial interfaces including RS232, RS485, RJ45, and optional PoE, with support for Modbus/Profinet and 10/100 Mbps Ethernet.
  • GPIO with trigger and relay support (1 input, 1 output; up to 2 inputs and 2 relay outputs in the extended spec), plus LED indicators and buzzer for status.
  • Wide 9–24 V DC supply, −40 °C to 70 °C operating temperature, IP67 protection, and SDK support for VB, Python, Java, Delphi, and C# for easy integration.
  • Automated production lines for station‑level WIP tracking, part verification, and machine triggering via GPIO/relay.
  • Industrial asset and tool tracking where readers are mounted close to workbenches, machines, or storage locations.
  • Conveyor and sorting systems that require short‑range tag reads for routing, validation, or packaging checks.
  • Intralogistics and small cell manufacturing zones where compact, rugged readers are needed near operators or equipment.
  • Harsh‑environment tracking applications (e.g., wash‑down, outdoor industrial areas) that require IP67 protection and industrial communication protocols.
Specification
Model number UHF Industrial Reader
Air interface agreement EPC Global UHF class1 Gen2/1S0 18000-6C
Frequency range 902-928MHz or 865-868MHz
RF output power 0-33dBm±ldBm
Maximum receiving sensitivity -75 dbm; Maximum return loss: 10 dbm
Reading distance 0-2m (related to reader parameter configuration, tag type)
Write distance 0-1m (related to reader parameter configuration, tag type)
Number of antennas Built-in 5dbi antenna
Communication Interface RS232, RS485, RJ45,P0E(for optional)
Protocol support Modubus/Profinet(customized)
Reader Size 305*305*75mm
Communication rate Serial communication rate 9600~115200bps, RJ45 communication rate 10/100Mbps

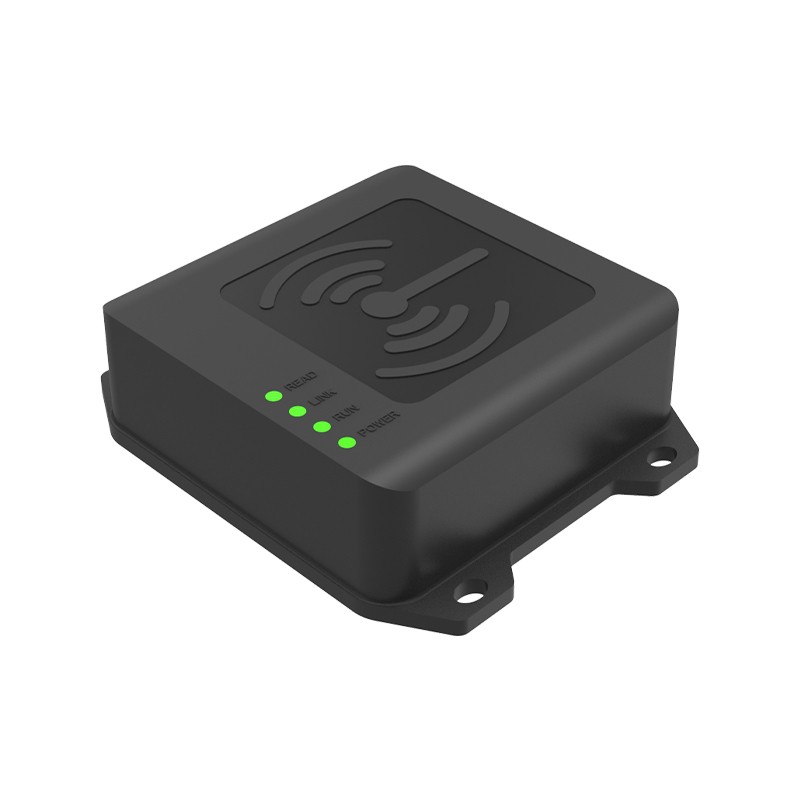

Work status display mode 4 LED indicator, buzzer
GPIO 1 inputs, 1 outputs(support customized)
Firmware upgrade support
SDK VB, Python, Java, Delphi, c# etc
Size 115 (length) * 95 (width) * 35(height) mm
Power supply Working voltage DC9-24V
Packed weight 450g
Humidity 5% ~ 95%, non-condensing
Protection level IEC IP67
Operating temperature -40°C ~ 70°C
Storage temperature -40°C ~ 85°C
Connector form Round waterproof M12 pin female seat
Compliance certification FCC certification, CE certification

Downloads

Connection Diagram

Connection Diagram
