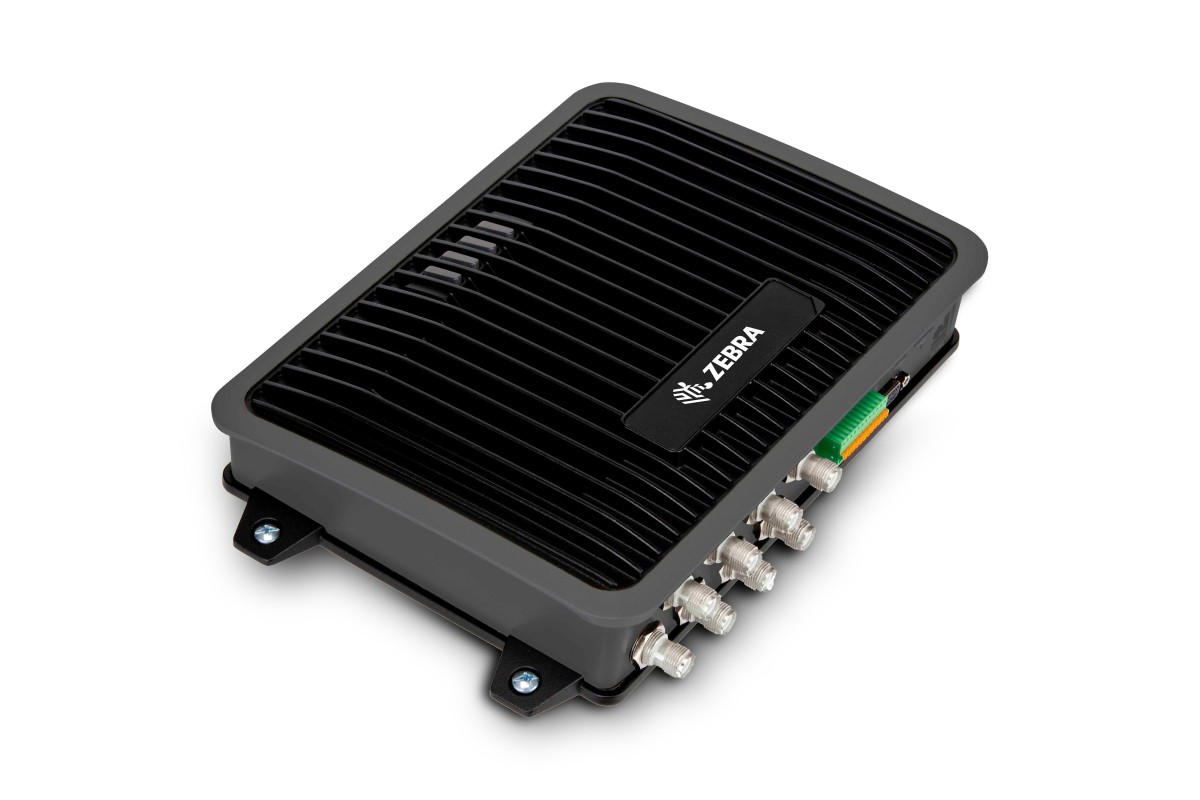

Zebra FX 9600

Zebra FX 9600

Zebra FX 9600

UHF Solution

Morx

Four port fixed reader, Processor Texas Instruments AM3505 (600 MHz)


  • Memory Flash 512 MB; DRAM 256 MB
  • Operating System Linux
  • Firmware Upgrade Web-based and remote firmware upgrade capabilities, Host Applications – .NET, C and Java EMDK
  • Embedded Applications – C and Java SDK

To achieve maximum visibility and efficiency in your most rugged environments, your business needs an RFID reader that can keep up with the high volume and wide variety of pallets, cases and tagged items that go in, out and through your warehouse and dock doors each day. The Zebra FX9600 Fixed UHF RFID Reader delivers the performance and features you need to handle it all. With support for Power over Ethernet, IP53 sealing and up to eight RF ports, the FX9600 brings a new level of cost efficiency to passive UHF asset tracking and inventory management, without compromising on performance. Industry-leading read rates, long read ranges and exceptional RF sensitivity ensure you can automate inventory management — from receiving and putaway to picking and shipping — without errors and without bottlenecks. The result? Increased efficiency and accuracy every time your inventory is touched, reduced labor costs and the delivery of the right product to the right customer, on time, every time. When you need industry-best RFID performance, the FX9600 delivers.

Warehousing

  • Inventory management

Physical Characteristics

Dimensions

10.75in. L X 7.25in. W X 2.0 in. D

27.3 cm L X 18.4 cm W X 5.0 cm D

Weight Approx 4.4lbs/2.13kg
Housing MaterialDie-cast aluminium, meets IP53 standards
Visual Status IndicatorsMulticolor LEDs: Power, Activity, Status and Application

RFID Characteristics

Max Receive Sensitivity -86 dBm monostatic
Air ProtocolsISO 18000-63 (EPC Class 1 Gen 2 V2)
Frequency (UHF Band)

Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz

US (only) Reader: 902 - 928 MHz

Transmit Power Output0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply

Connectivity

Communications10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)
General Purpose I/O4 inputs, 4 outputs, optically isolated (Terminal Block)
Power SupplyPOE (802.3af)POE+ (802.3at) +24V DC(UL Approved)
Antenna PortsFX9600-4: 4 monostatic ports; (Reverse Polarity TNC)FX9600-8: 8 monostatic ports; (Reverse Polarity TNC)

Environmental

Operating Temp.-4° to +131° F/-20° to +55° C
Storage Temp.-40° to +158° F/-40° to +70° C
Humidity5-95% non-condensing
SealingIP53

Hardware, OS, and Firmware Management

ProcessorTexas Instruments AM3505 (600 MHz)
MemoryFlash 512 MB; DRAM 256 MB
Operating SystemLinux
Firmware UpgradeWeb-based and remote firmware upgrade capabilities


Management ProtocolsRM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP
Network ServicesDHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP
Network StackIPv4 and IPv6
SecurityTransport Layer Security Ver 1.2, FIPS-140
API SupportHost Applications — .NET, C and Java EMDKEmbedded Applications — C and Java SDK
