Button
Home Automation
Wireless panic button / smart button
Principle of operation

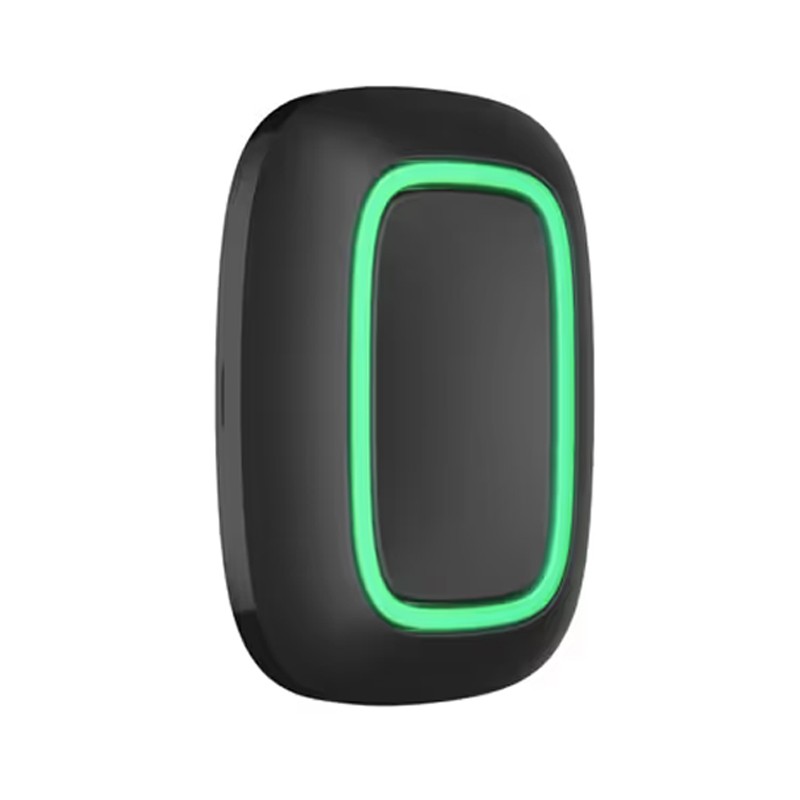

Works as a wireless button that sends a command to the Ajax system when pressed. It can be used as a panic button or to control automation and security modes.
Features
Supports different operation modes, including panic alarm and control mode for scenarios and devices.
Installation and set up

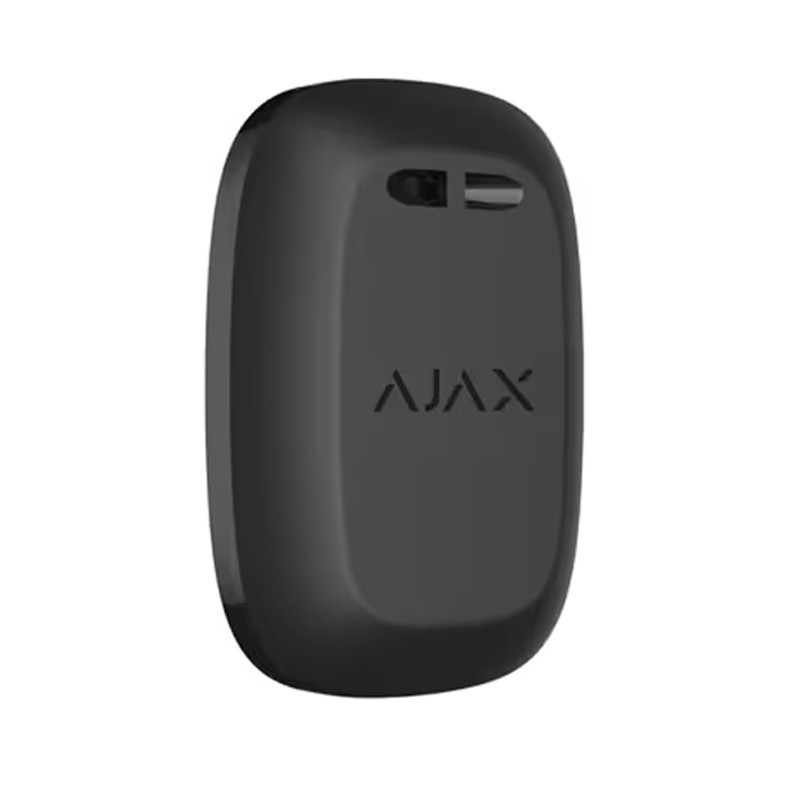

Ready to use out of the box. The battery is pre-installed, and the button can be used handheld or fixed in place using a holder.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,300 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Key features | |
|---|---|
| Number of buttons | 1 |
| Adjustable event types |
If the Custom event type is selected, event notifications will not be sent to the security company monitoring station, and system users will not receive an SMS. |
| LED backlight indicating command delivery | The LED brightness is adjusted in Ajax apps. |
| Protection against accidental pressing | long or double press |
| Supervising feature | Button will update the status of its battery every day. This feature is available with OS Malevich 2.16 and higher. |
| Sabotage protection | |
|---|---|
| Protection against spoofing | device authentication |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 1 × CR2032A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 5 years Learn More |
| Button’s operating voltage range | 1.8−3.3 V⎓ |
| Button’s nominal operating voltage | 3 V⎓ |
| Quiescent button’s current consumption at nominal voltage | 0.5 μA When the Battery charge auto-check toggle is disabled. 2.02 μAWhen the Battery charge auto-check toggle is enabled. |
| Maximum button’s current consumption at nominal voltage | 27.8 mA |
| Full battery capacity | 235 mAh |
| Low battery voltage | 2.2 V⎓ |
| Low battery recovery voltage | 2.3 V⎓ |
| End-of-life battery voltage | 1.8 V⎓
Device is switched off. |
| End-of-life battery capacity | 40 mAh |
| Manufacturer | Panasonic or Renata |
| Enclosure | |
|---|---|

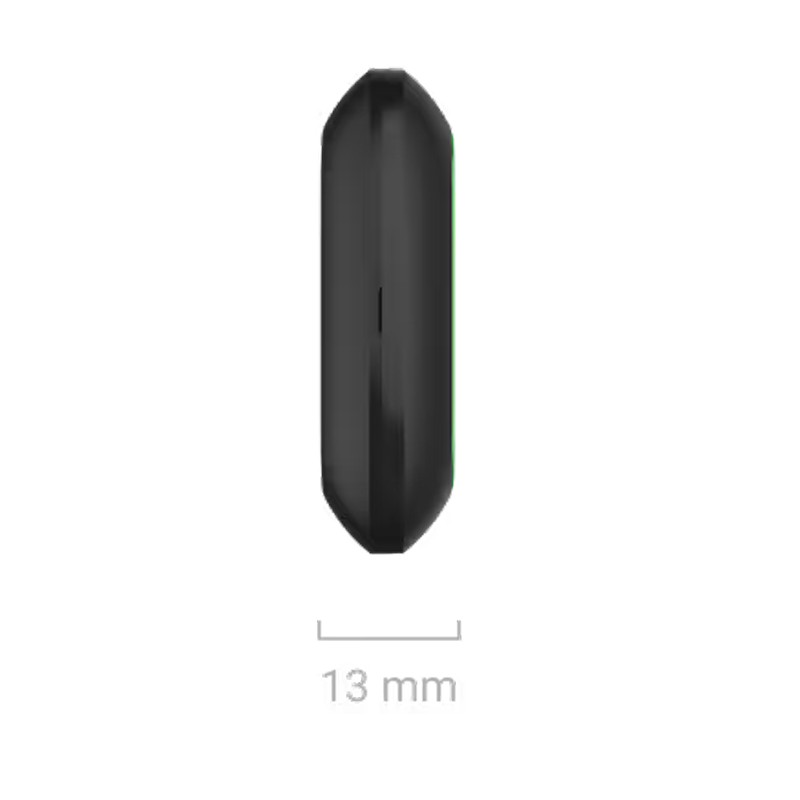

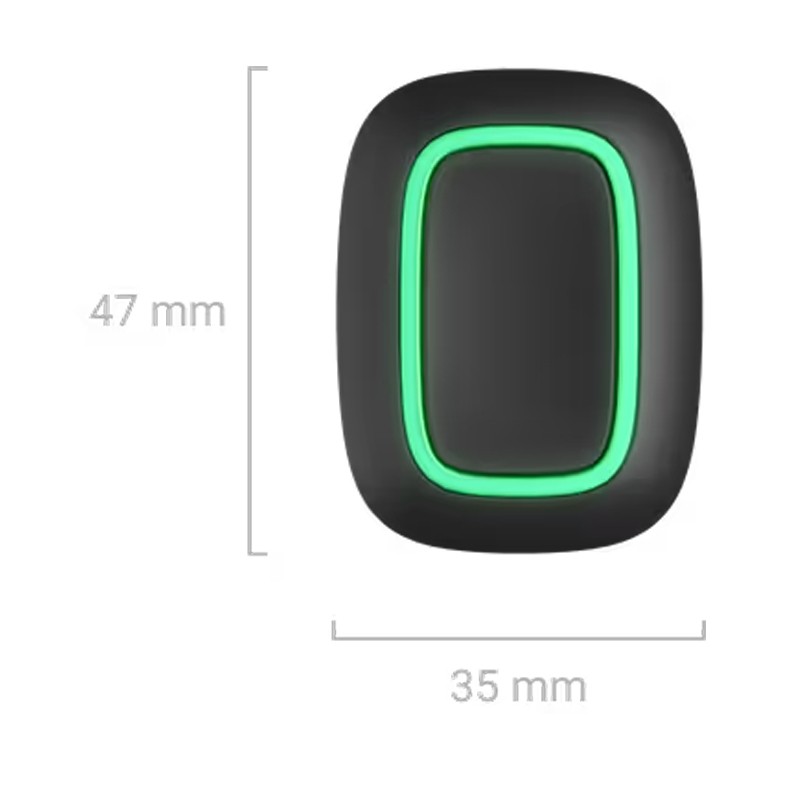

| Dimensions | 47 × 35 × 13 mm |
| Weight | 16 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP55 |
| Complete set | |
|---|---|
| Complete set |
Button Jeweller CR2032 battery (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
