Curtain Outdoor
Home Automation

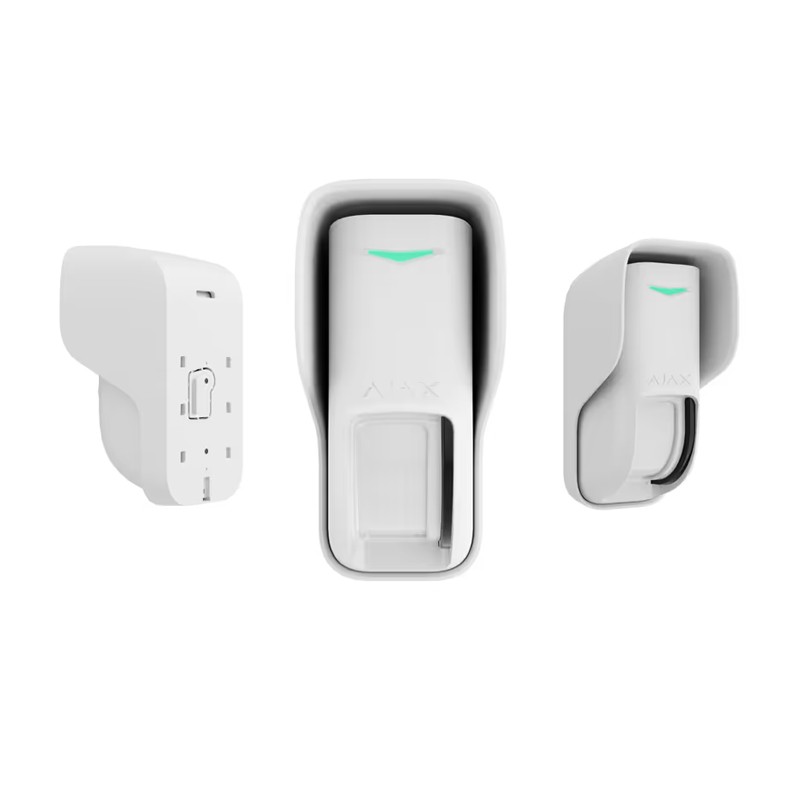

Wireless curtain motion detector for outdoor and indoor use
Principle of operation
Detects movement using narrow-angle PIR sensors that create two curtain-type detection zones along the protected area.
Features
Features a pet immunity switch that allows adjusting the detector to reduce reactions to animals while maintaining reliable perimeter protection.
Installation and set up
Ready to use out of the box. The battery is pre-installed, and the detector is mounted in minutes using the mounting bracket.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the detector and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology for uploading firmware updates. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Radio communication range | up to 1,700 m Between the detector and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Detection | |
|---|---|
| Sensitive element |
2 × PIR sensors 1 × K-band microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference. Operation frequency: 24 GHz. |
| Motion detection distance | up to 8–12 m
When installed at a height of 1–2.4 m. Adjusted with a slider at the detector enclosure. Learn more |

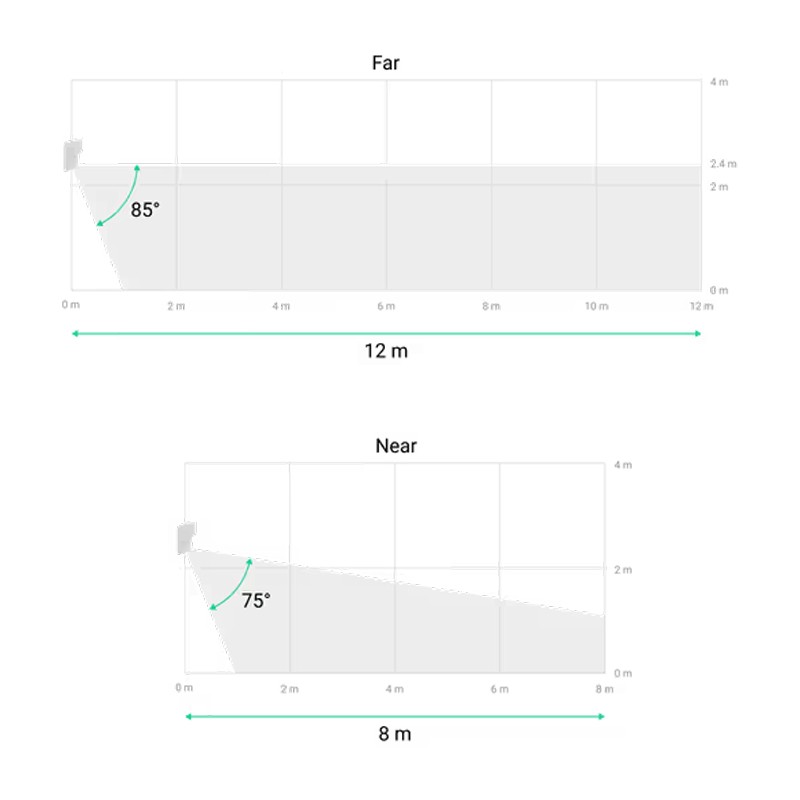

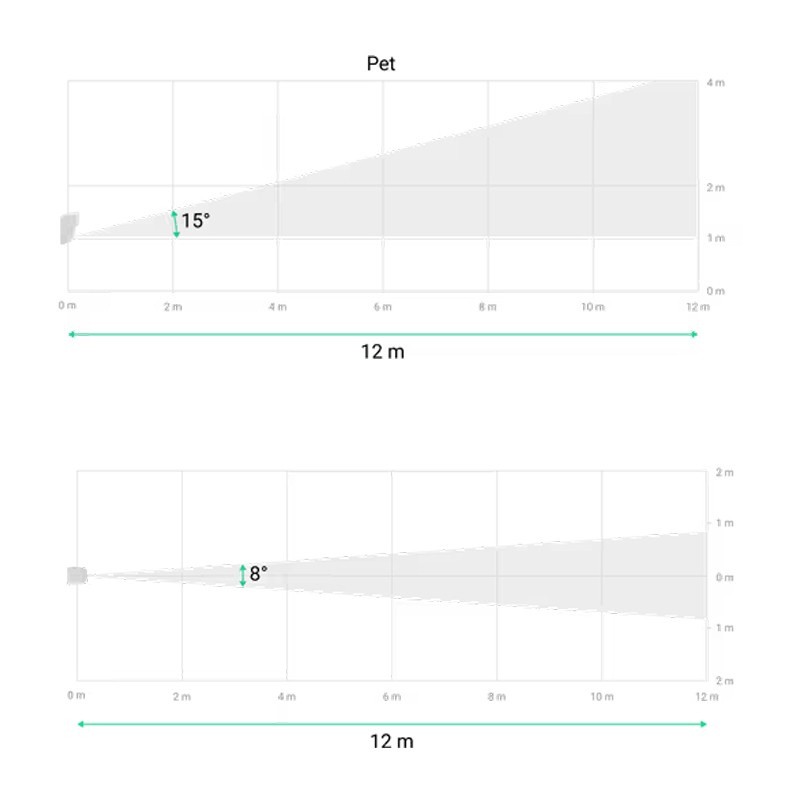

| Motion detection angles | horizontal — 8° vertical — 85°/75°/15° |
| Motion detection speed | 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels
Adjusted by a PRO or user with admin rights in Ajax apps. |
| Pet immunity |
height: up to 100 cm weight: irrelevant The detector should be installed at a height of 1 meter, and the slider on its enclosure should be set to the Pet position. |
| False alarm prevention |
Dual motion detection technology SmartDetect Software algorithm. Learn More |
| Temperature compensation | Effective motion detection at temperatures from −25 °C to +60 °C Learn more |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Anti-masking system | detects attempts to block the detector view Learn More |
| Accelerometer | alarm when the detector is moved
Must be activated when the detector is installed on third-party brackets. |
| Holding screw | To secure the detector on SmartBracket or hood. |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller settings. Learn more |
| Power supply | |
|---|---|
| Battery | 2 × CR123A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3 years Learn More |
| Detector’s operating voltage range | 4.1−6.2 V⎓ |
| Detector’s nominal operating voltage | 6 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 37 μA |
| Maximum detector’s current consumption at nominal voltage | 600 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 4.48 V⎓ |
| Low battery recovery voltage | 5.14 V⎓ |
| End-of-life battery voltage | 4.1 V⎓
Device is switched off. |
| End-of-life battery capacity | 170 mAh |
| Manufacturer | Huiderui or Panasonic |
| Enclosure | |
|---|---|

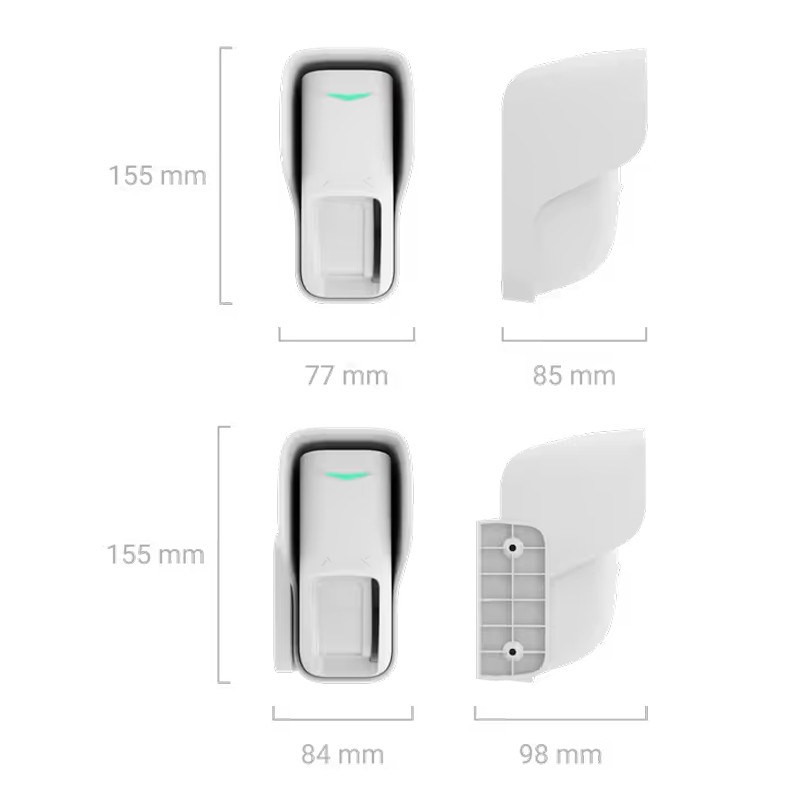

| Dimensions | 155 × 77 × 85 mm |
| Dimensions with hood and angle mount | 155 × 84 × 98 mm |

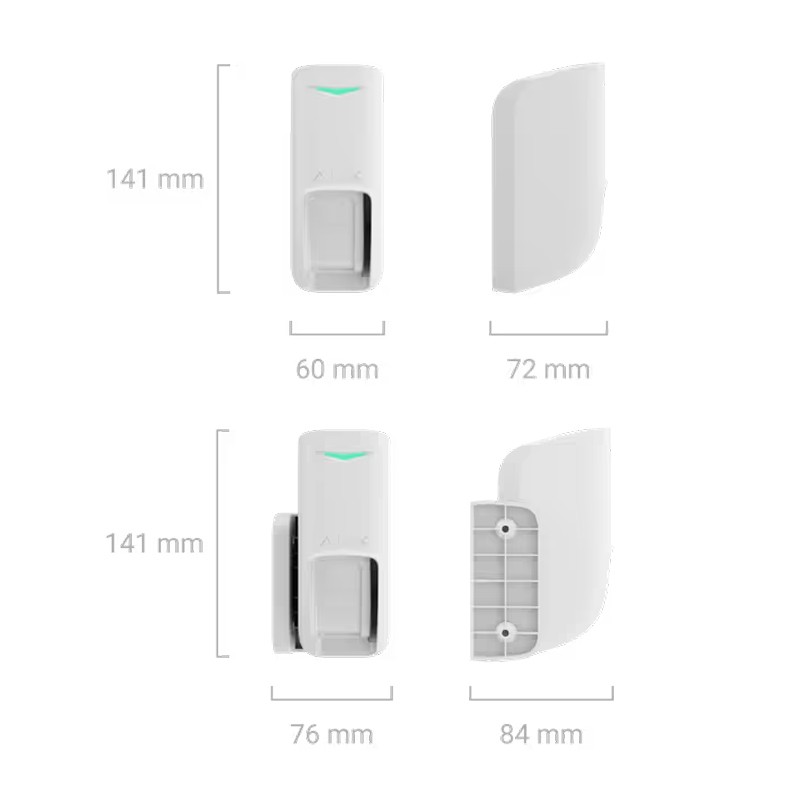

| Dimensions without hood | 141 × 60 × 72 mm |
| Dimensions without hood and with angle mount | 141 × 76 × 84 mm |
| Weight with hood | 299 g |
| Weight without hood | 223 g |
| Weight of angle mount | 34 g |
| Operating temperature range | from −25 °C to +60 °C |
| Operating humidity | up to 95% |
| Protection class | IP55 |
| Complete set | |
|---|---|
| Complete set |
Curtain Outdoor Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Angle mount Hood Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
