Door Protect
Home Automation
Wireless opening detector
100% Money Back Guarantee
Free Shipping
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless opening detector
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features

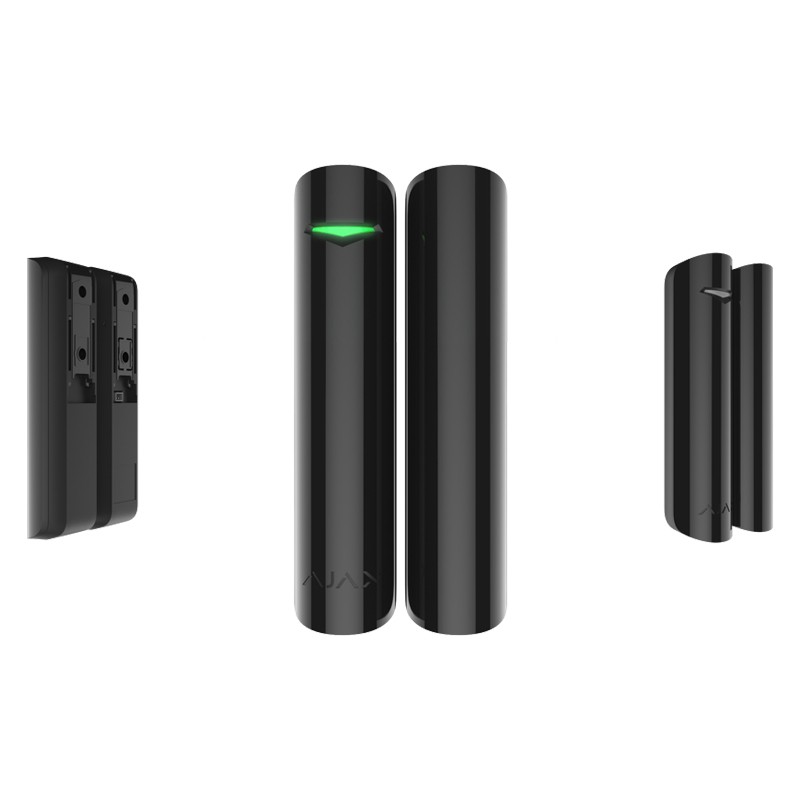

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the smart bracket in just a few minutes.
| Communication | |
|---|---|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW
Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range |
up to 1,200 m
Between detector and control panel (or range extender) in an open space. Calculate the radio signal range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. Learn more |
| Detection | |
|---|---|
| Sensitive element | 1 × reed switch |
| Magnets |
Small and big magnets are included
The small magnet operates up to 1 cm, the big magnet up to 2 cm. |
| Protection against reed switch chattering | The detector ignores vibrations lasting up to 0.15 s. |
| Input for additional detector |
Wired detector with NC (normally closed) contact type How to connect a third-party wired detector |
| Chime |
When the system is disarmed, the siren notifies when opening detectors are triggered. Learn more |
| Recommendations | |
|---|---|
| Installation |

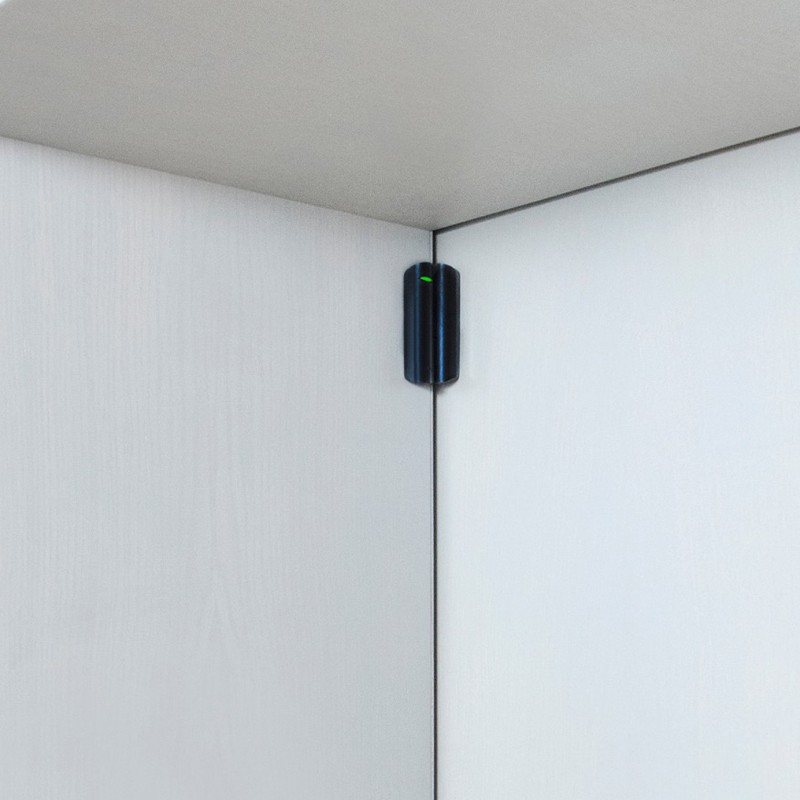

Do not install the detector using both magnets at the same time. Attach the magnet to the moving part of the door/window to the right of the detector. The device is designed for indoor use only. |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the detector or remove it from the mounting panel. Learn more |
| Protection against spoofing | Device authentication |
| Communication loss detection |
after 36 s Depends on Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 1 × CR123A (pre-installed), Type C |
| Calculated battery life | up to 7 years |
| Nominal voltage | 3 V⎓ |
| Quiescent current | 17.5 μA |
| Maximum current | 21.4 mA |
| Battery capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| End-of-life voltage | 2.1 V⎓ (device is switched off) |
| End-of-life capacity | 300 mAh |
| Manufacturer | Huiderui |
| Enclosure | |
|---|---|
| Detector dimensions | 90 × 20 × 20 mm |
| Big magnet dimensions | 90 × 20 × 20 mm |
| Small magnet dimensions | 55 × 11 × 6 mm |
| Weight | 29 g |
| Operating temperature | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50 |

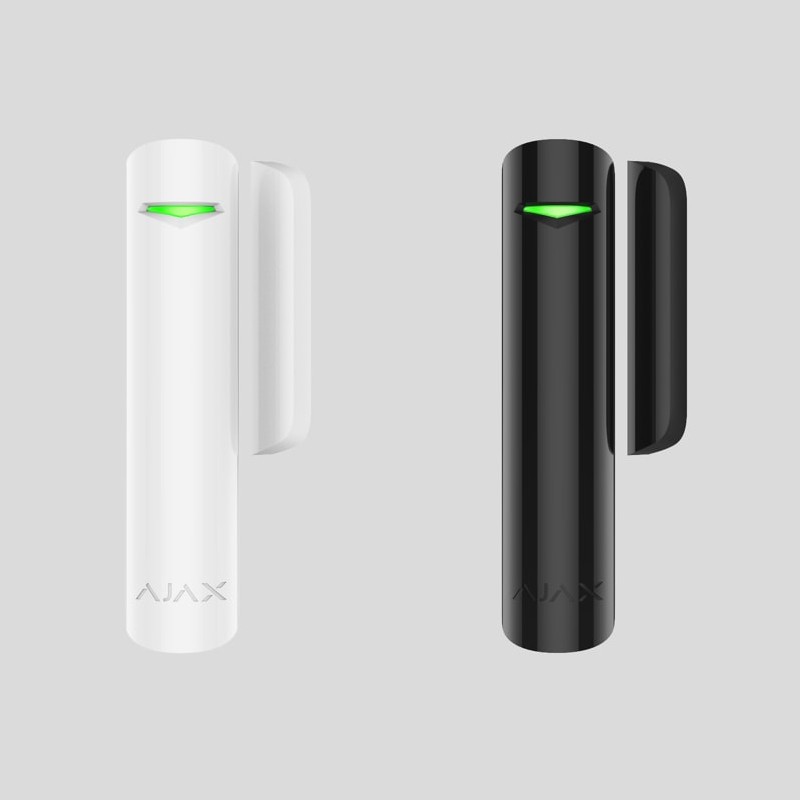

| Colors | Black, White |
| Complete set | |
|---|---|
| Package contents |
DoorProtect Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Big magnet Small magnet Outside-mounted terminal clamp Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty |
24 months Learn more |
