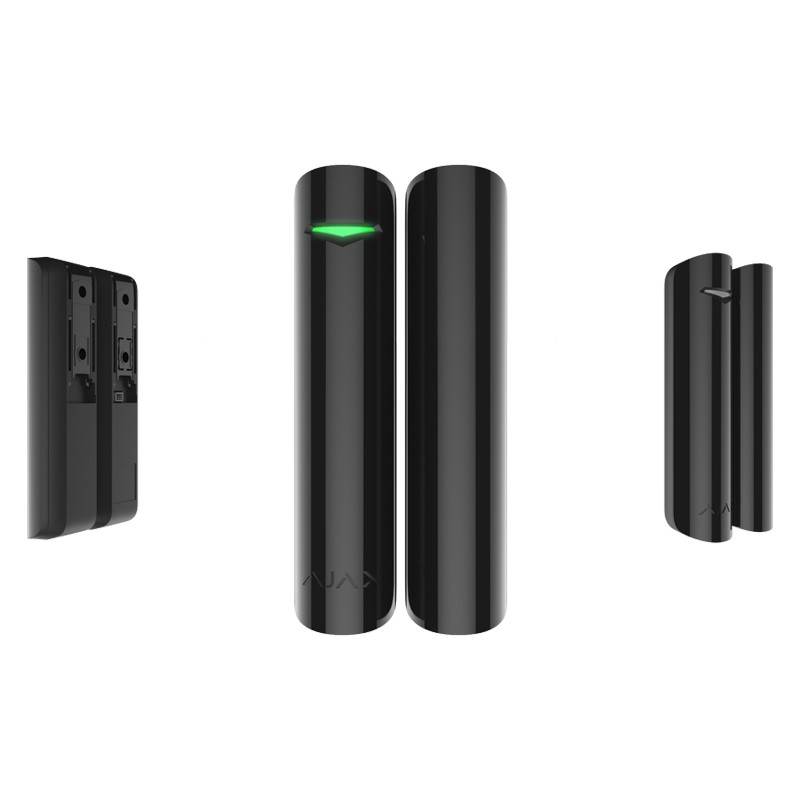

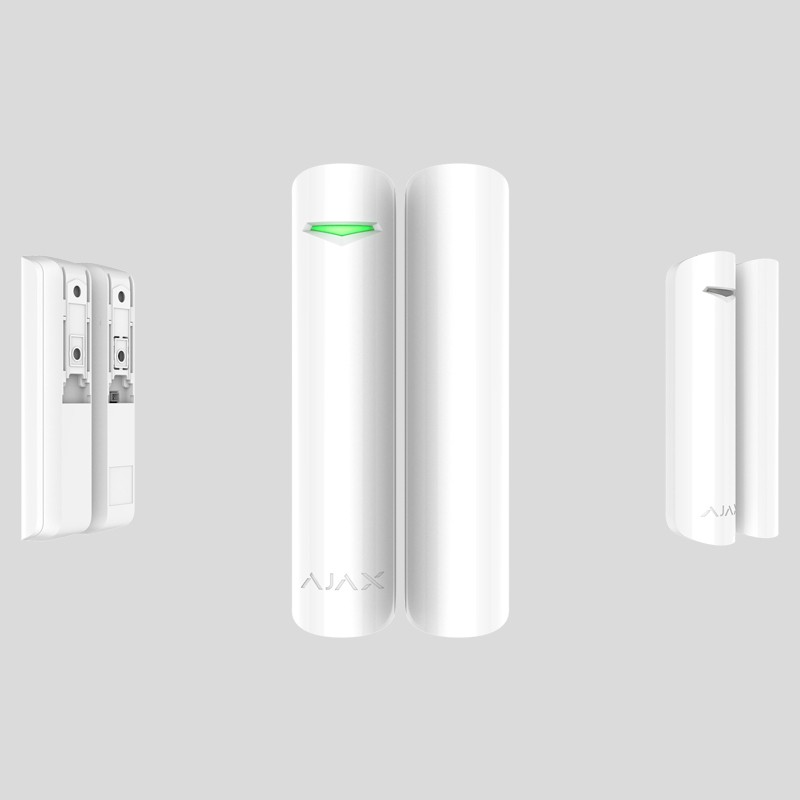

Wireless opening detector with shock and tilt sensors
100% Money Back Guarantee
Free Shipping
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless opening detector with shock and tilt sensors
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the smart bracket in just a few minutes.
| Communication | |
|---|---|
| Jeweller communication technology |
Proprietary wireless technology to transmit alarms and events. Features:
|
| Radio frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,200 m Between the detector and a hub (or range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception.
Learn more |
| Detection | |
|---|---|
| Sensitive elements |
1 × accelerometer 1 × reed switch The magnet should be installed to the right of the detector. |
| Additional detector connection |
Third-party wired detector with NC contact How to connect |
| Shock sensitivity | 3 levels (adjustable in Ajax app) |
| Ignore single shock | Configurable in Ajax app |
| Tilt sensor activation threshold | from 5° to 25° (adjustable in Ajax app) |
| Recommendations | |
|---|---|
| Installation |

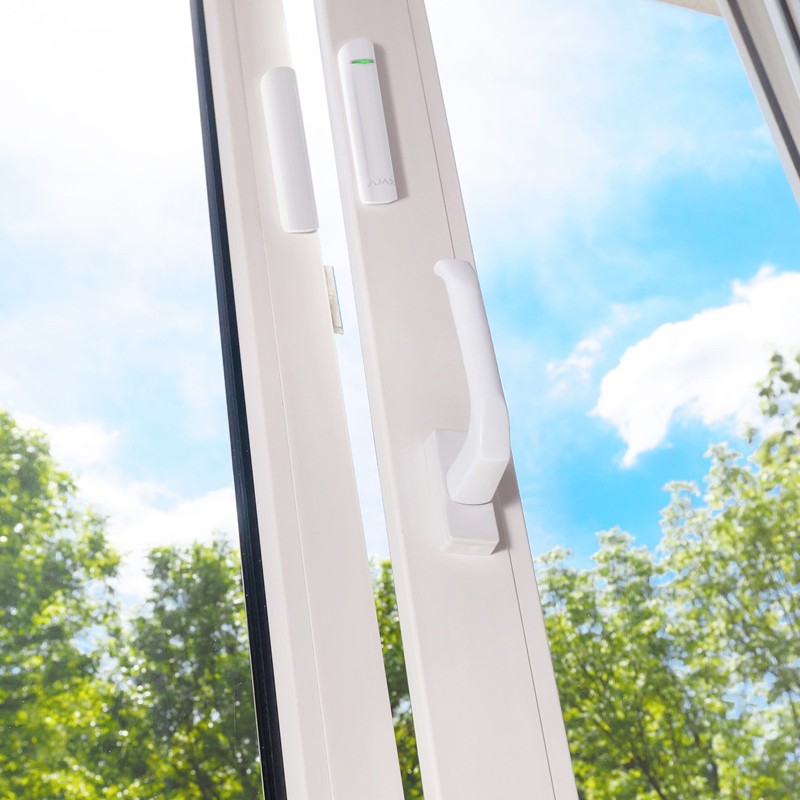

The magnet is mounted to the right of the detector. It can be placed horizontally. Do not install the detector with the LED indicator facing down. Device is designed for indoor use only. |
| Anti-sabotage protection | |
|---|---|
| Tamper alarm |
Notifications of attempts to tear off the detector or remove it from the mounting panel.
Learn more |
| Protection against spoofing | Device authentication |
| Power supply | |
|---|---|
| Battery | 1 × CR123A (pre-installed), Type C |
| Calculated battery life | up to 5 years |
| Nominal voltage | 3 V⎓ |
| Quiescent current | 11.8 μA |
| Maximum current | 24 mA |
| Battery capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| End-of-life battery voltage | 2.1 V⎓ (device is switched off) |
| Manufacturer | Huiderui |
| Enclosure | |
|---|---|
| Dimensions | Ø 20 × 90 mm |
| Weight | 29 g |
| Operating temperature | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50 |
| Colours | Black, White |
| Complete set | |
|---|---|
| Package contents |
DoorProtect Plus Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Big magnet Small magnet Terminal for wired detector Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty |
24 months Learn more |
