Principle of operation
Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling.
Features
Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks
Installation and set up

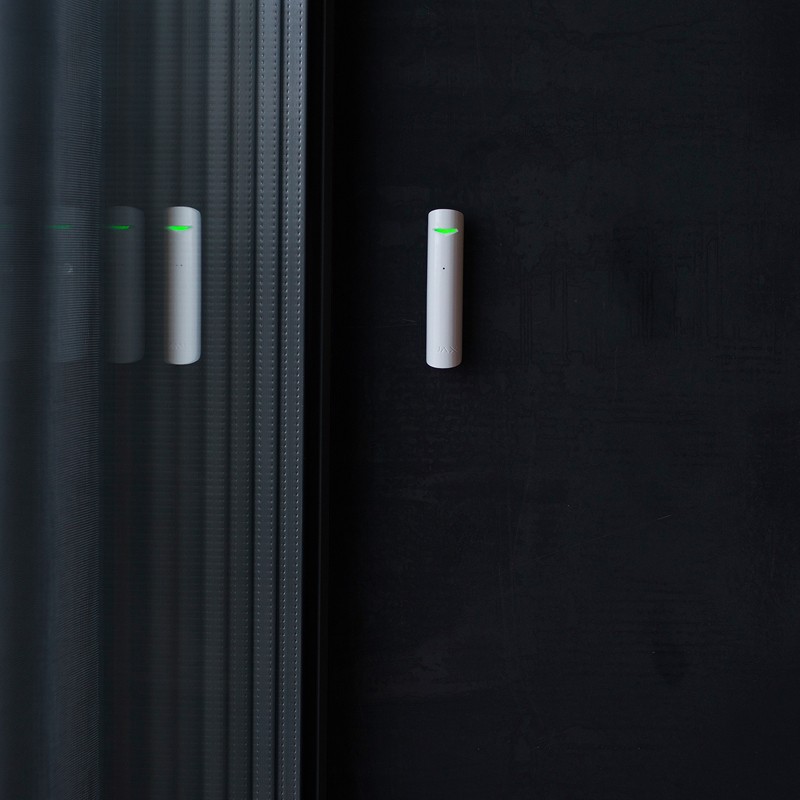

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the smart bracket in just a few minutes.
| Communication | |
|---|---|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,000 m
Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn more |
| Detection | |
|---|---|
| Sensitive element | Electret microphone |
| Glass break detection distance | from 0.3 to 9 m |
| Glass break detection angle | horizontal: 180° |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in the Ajax app. |
| False alarm prevention |
DualTone Two-factor software algorithm for glass break verification by low and high sound frequencies. |
| Input for additional detector |
Wired detector with NC (normally closed) contact type How to connect a third-party wired detector |
| Recommendations | |
|---|---|
| Usage |
The device will not detect glass breaking if the glass is covered with shockproof, sunscreen, decorative, or any other film. The device is designed for indoor use only. |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | Device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 1 × CR123A (pre-installed) |
| Calculated battery life |
up to 7 years Learn more |
| Operating voltage range | 2.1–3.3 V⎓ |
| Nominal voltage | 3 V⎓ |
| Quiescent current | 18 μA |
| Maximum current | 21 mA |
| Manufacturer | Huiderui or Duracell |
| Enclosure | |
|---|---|
| Dimensions | 90 × 20 × 20 mm |
| Weight | 30 g |
| Operating temperature | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50 |

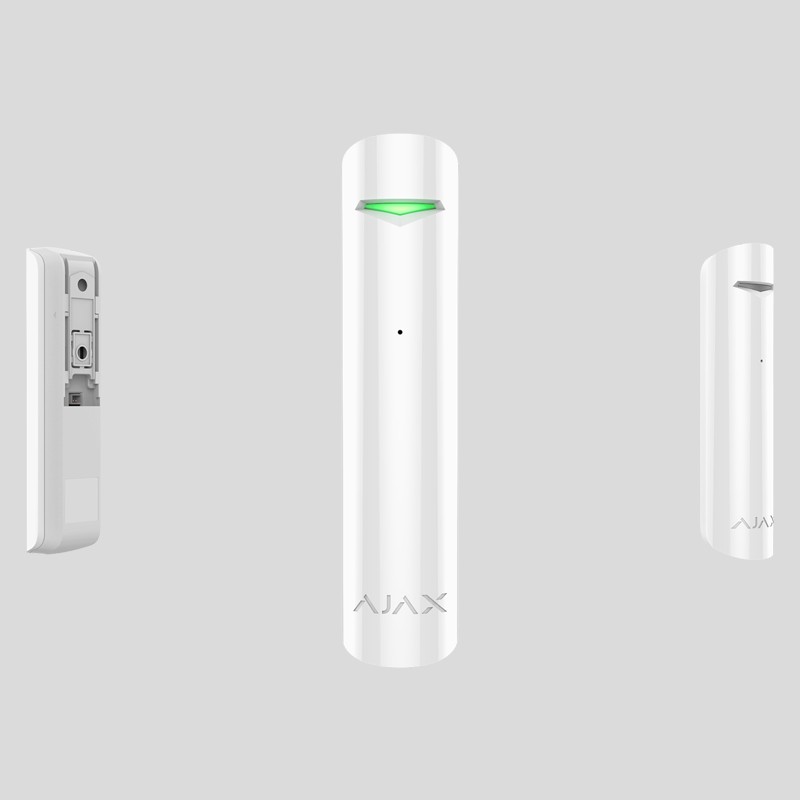

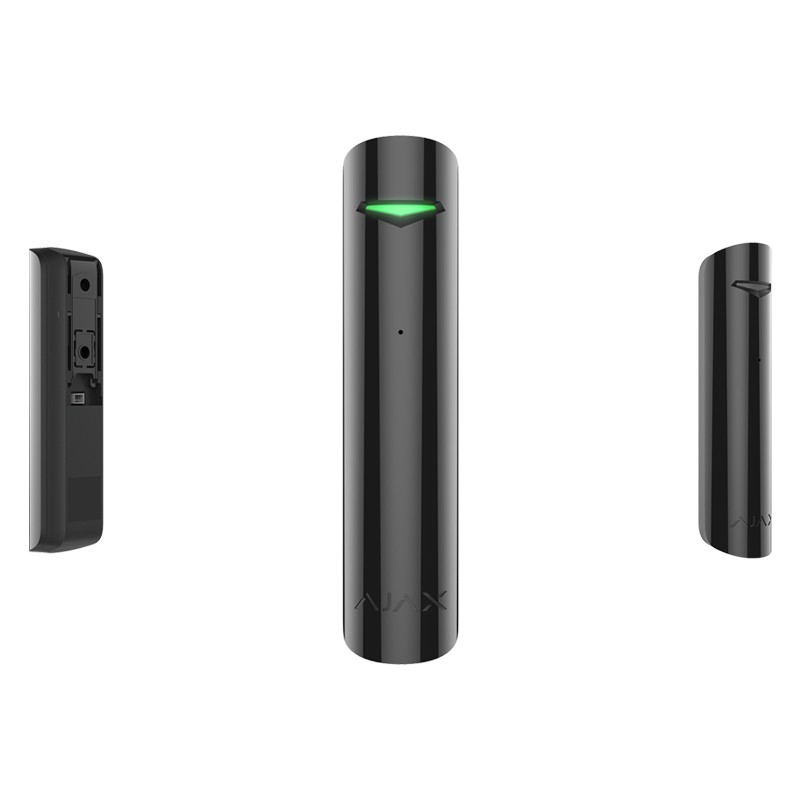

| Colors | Black, White |
| Complete set | |
|---|---|
| Package contents |
GlassProtect Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Cable for connecting third-party devices Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty |
24 months Learn more |
