Home Automation
Wireless control panel. Connectable via Ethernet & two SIM cards (4G)
Wireless alarm control panel for professional installations both residential and office environments. Communication is via Ethernet and/or Dual SIM 4G. The bidirectional radio link between detectors and accessories uses its own in-house protocol called Jeweller, which works in the 865-867 MHz frequency, and has obtained Grade 2 certification.
The wireless link achieves great reliability thanks to its advanced Jeweller protocol with high security AES encryption. The unique instant and intelligent monitoring system detects inhibition of the signal identifying a specific downtime and in turn reduces maintenance costs as it significantly extends the life of the batteries of the detectors without compromising security. The wireless signal is able to cover distances up to 2 km in open space. It also includes features to ease the installation such as the Smart-Bracket or the simple linking of detectors to the alarm system.
It allows up to 100 wireless zones with the possibility of grouping these devices up to 9 different groups, where the different actions can be carried out; armed, partially armed, disarmed. These Ajax wireless devices have different possible configurations such as 24 hours zone, zone with time delay of entry or exit...
The panel has an AC power input 110-240 V and also a rechargeable backup battery with duration of up to 16 hours.
The triple Ethernet and dual SIM 4G communication is its main advantage for remote access, both for the user and the installer, as it allows connection through the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the whole system, manage users and their permissions, add devices, group them in different areas and modify their settings.
The Ajax users will enjoy multiple advantages, as they can receive reliable and instant notifications in both desktop software and mobile applications.
As an additional complement to the Ajax alarm system, from the mobile application you can add up to 25 IP cameras or video recorder channels to be able to verify the video stream live.
| Capacity | |
|---|---|
| Wireless Ajax devices | up to 100 Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders. More about devices |
| IP cameras or DVRs | up to 25
|
| Users | up to 50
|
| Automation scenarios |
up to 32
|
| Security groups | up to 9 Learn more |
| Rooms | up to 50 |
| Wireless communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit alarms and events. Key features:
Learn More |
| Frequency band | 865.0-867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range | up to 2,000 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. Learn More |
| Polling interval | from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted communication | Block encryption with a dynamic key protects all the stored and transmitted data. |
| Frequency hopping |
Prevents radio interference and radio signal interception. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency band | 865.0-867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Featured automatic power control to reduce power consumption and noise interference. |
| Radio communication range | up to 1,700 m
Between the hub and connected devices (in an open space). Maximum range depends on the connected device. Learn More |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Communication channels | |
|---|---|

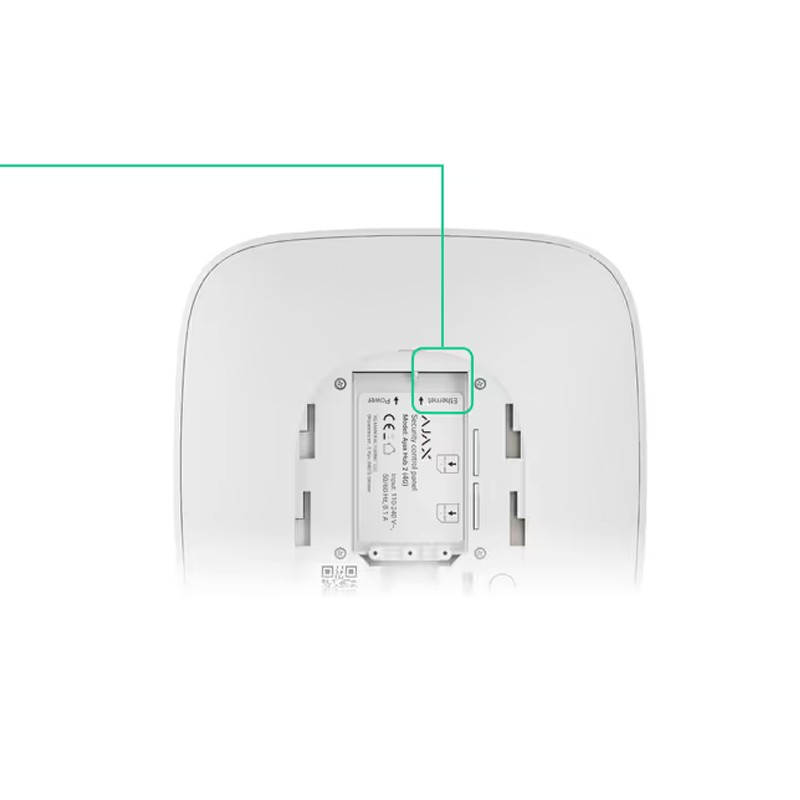

| Ethernet | 1 8P8C socket Up to 100 Mbps. |

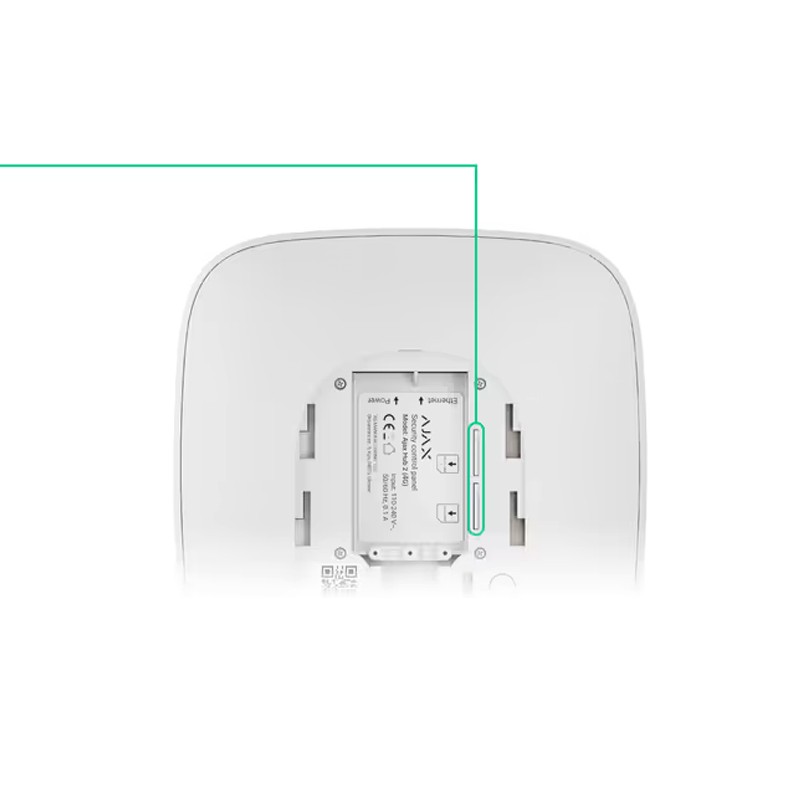

| Cellular | 2 micro-SIM slot |
| Cellular bands | 2G GSM900/DCS1800 (B3/B8) 3GWCDMA 850/900/2100 (B1/B5/B8) 4G(LTE)FDD B1/B3/B5/B7/B8/B20 |
| Automatic switching | Between Ethernet and SIM — instantly. Between 4G (LTE), 3G, and 2G networks of one SIM — instantly. Between SIMs — up to 4 minutes. |
| Communication channels prioritization |
Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet. |
| Notifications | |
|---|---|
| Notification types |
|
| Event types |
The notification types are configured individually for each user. |
| Photo verification | |
|---|---|
| Photo verification types |
The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher. More about photo by scenarioMore about photo on demand More about photo by schedule |
| Photo delivery time |
up to 9 s
by default. Learn More |
| Photo resolution | up to 640 × 480 pixels
Depends on the detector. |
| Number of photos in a series | from 1 to 5 pictures |
| Monitoring | |
|---|---|
| Supported protocols |
|
| Event types |
|
| Power supply | |
|---|---|
| Main | 110–240 V~, 50/60 Hz
Up to 10 W of mains power consumption. |
| Backup | 3.55–4.2 V⎓
Built-in rechargeable battery Li-ion 2 Аh. Up to 15 hours of offline operation when Ethernet is disconnected. The Battery Power Saver feature allows extending the backup battery life. Learn MoreThe hub has a 3-pin battery. To replace the hub battery, use the same one. Learn More |
| Alternative |
6 V⎓
Connected via an alternative power supply unit 6V PSU (type A) which is sold separately. 12–24 V⎓Connected via an alternative power supply unit 12–24V PSU (type A) which is sold separately. Learn More |
| Anti-sabotage | |
|---|---|
| Tamper alarm | The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Frequency hopping | The hub sends notifications to all users and the security company about jamming or losing connection with the devices. Learn More |
| Enclosure | |
|---|---|

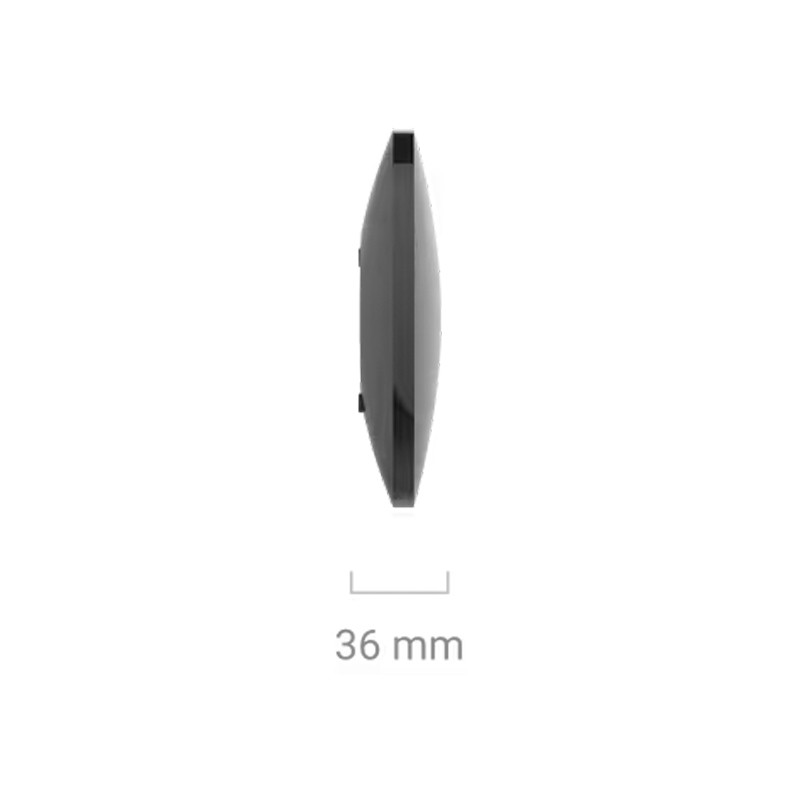

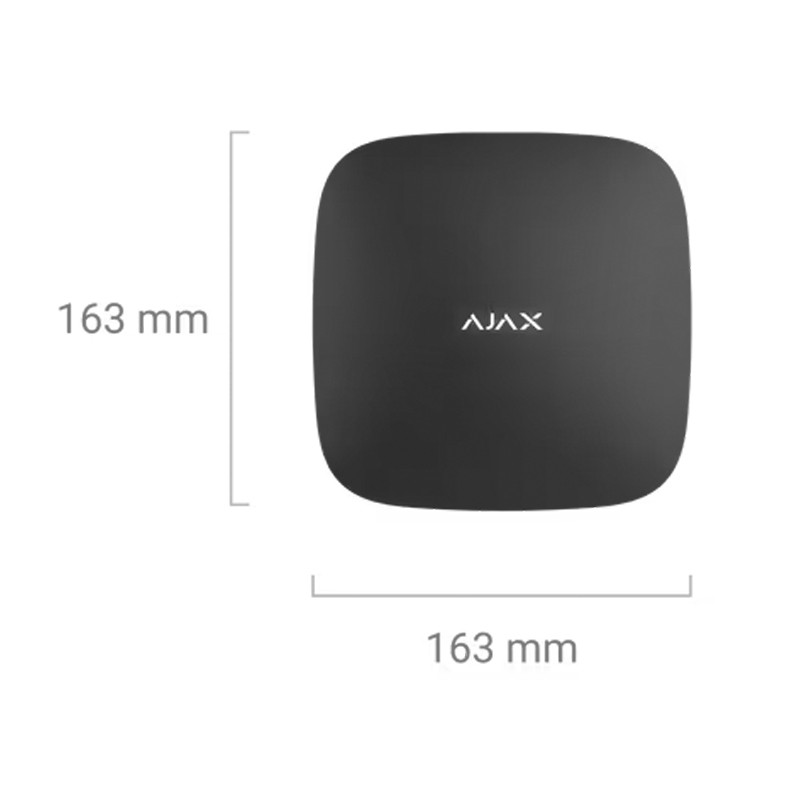

| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | |
|---|---|
| Complete set |
Hub 2(4G) Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM card (depends on the sales region) User Manual |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
