Hub2 Plus
Home Automation
Wireless control panel. Connectable via Wi-Fi, Ethernet, and two SIM cards (2G/3G/LTE)
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless control panel. Connectable via Wi-Fi, Ethernet, and two SIM cards (2G/3G/LTE)

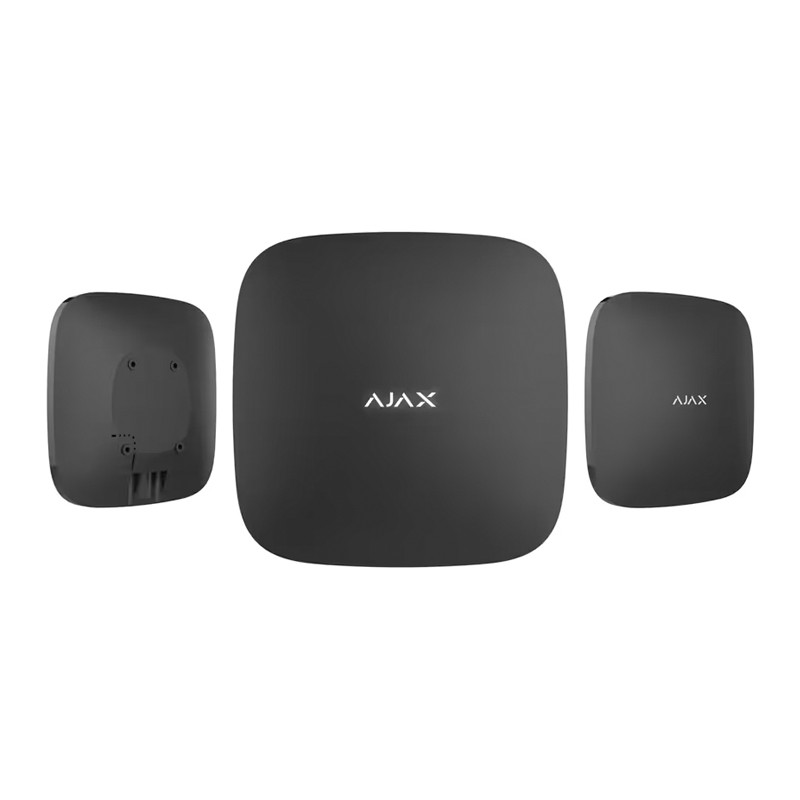

Wireless alarm control panel for professional installations in both residential and commercial settings. Communication is via Wi-Fi, Ethernet, and/or 4G with Dual SIM. The supervised bidirectional link between detectors and accessories is established via radio frequency using its proprietary Jeweller protocol in the 865-867 MHz band, achieving Grade 2 certification.
The wireless connection achieves high reliability thanks to its advanced Jeweller protocol with high-security AES encryption. The unique, intelligent, instant monitoring system detects signal jamming by identifying periods of inactivity and reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open spaces. It also includes features to facilitate installation, such as the Smart-Bracket and easy pairing of detectors to the alarm system.
It allows for up to 200 wireless zones, enabling the grouping of these devices into up to 25 different groups, which can then be armed, partially armed, or disarmed. These Ajax wireless devices offer various configuration options, such as 24-hour zones, zones with entry or exit delays, and more.
The panel features a 110-240V AC power input and a rechargeable backup battery with up to 15 hours of operation.
Quadruple Wi-Fi, Ethernet, and dual 4G SIM connectivity is its main advantage for remote access, both for the user and the installer, as it allows connection via the AJAX PRO Desktop PC software and the Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professional) mobile apps for iOS and Android. These applications allow for complete system configuration, user and permission management, device addition, grouping into rooms, and modification of device settings.
Ajax users will enjoy numerous advantages, including reliable and instant notifications on both the desktop software and mobile apps.
As an added feature to the Ajax alarm system, up to 100 IP cameras or video recorder channels can be added via the mobile app for live video streaming.
| Capacity | |
|---|---|
| Wireless Ajax devices | up to 200 Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders. More about devices |
| IP cameras or DVRs | up to 100
|
| Users | up to 200
|
| Automation scenarios |
up to 64
|
| Security groups | up to 25 Learn more |
| Rooms | up to 50 |
| Wireless communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit alarms and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range | up to 2,000 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. Learn More |
| Polling interval | from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Featured automatic power control to reduce power consumption and noise interference. |
| Radio communication range | up to 1,700 m
Between the hub and connected devices (in an open space). Maximum range depends on the connected device. Learn More |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. Learn More |
| Communication channels | |
|---|---|

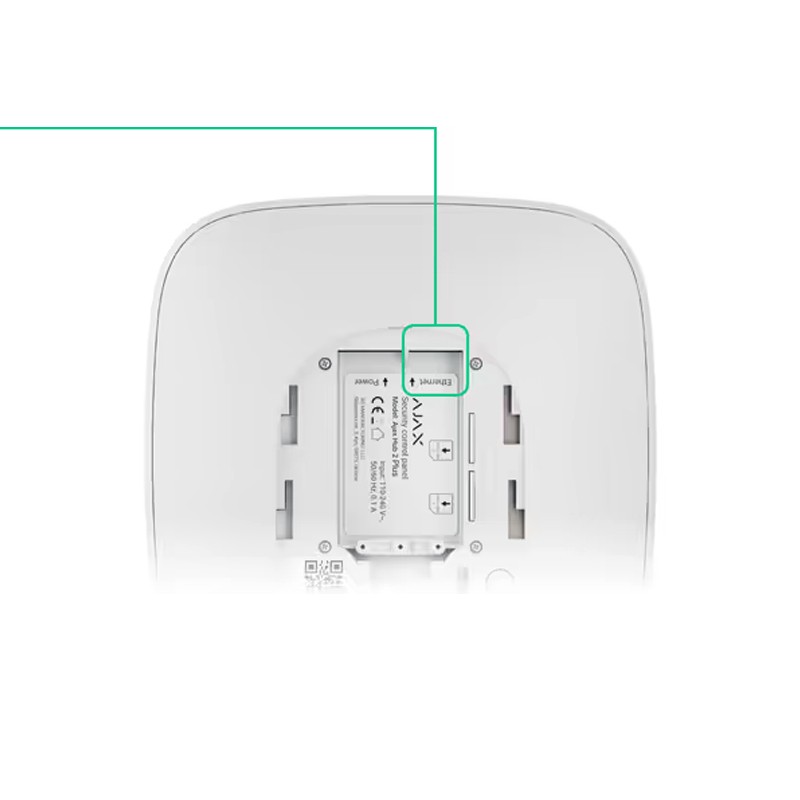

| Ethernet | 1 8P8C socket Up to 100 Mbps. |
| Cellular | 2 micro-SIM slot |
| Cellular bands | 2G GSM900/DCS1800 (B3/B8) 3GWCDMA 850/900/2100 (B1/B5/B8) 4G(LTE)FDD B1/B3/B5/B7/B8/B20 Wi-Fi802.11 b/g/n module up to 600 Mbps. |
| Automatic switching between communication channels | Instant switching between Ethernet, Wi-Fi and SIM. Instant switching between 4G (LTE), 3G, and 2G networks of one SIM. Switching between SIMs takes up to 4 minutes. |
| Communication channels prioritization |
Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet. |
| Notifications | |
|---|---|
| Notification types |
|
| Event types |
The notification types are configured individually for each user. |
| Photo verification | |
|---|---|
| Photo verification types |
The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher. More about photo by scenarioMore about photo on demand More about photo by schedule |
| Photo delivery time |
up to 9 s
by default. Learn More |
| Photo resolution | up to 640 × 480 pixels
Depends on the detector. |
| Number of photos in a series | from 1 to 5 pictures |
| Monitoring | |
|---|---|
| Supported protocols |
|
| Event types |
|
| Power supply | |
|---|---|
| Main | 110–240 V~, 50/60 Hz
Up to 10 W of mains power consumption. |
| Backup | 3.55–4.2 V⎓
Built-in rechargeable battery Li-ion 3 Аh. Up to 15 hours of offline operation when Ethernet is disconnected. Learn MoreThe hub has a 3-pin battery. To replace the hub battery, use the same one. Learn More |
| Alternative |
6 V⎓
Connected via an alternative power supply unit 6V PSU (type A) which is sold separately. 12–24 V⎓Connected via an alternative power supply unit 12–24V PSU (type A) which is sold separately. Learn More |
| Anti-sabotage | |
|---|---|
| Tamper alarm | The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication
Proprietary authentication algorithms make it impossible to spoof the hub or connected devices. Learn More |
| Frequency hopping | The hub sends notifications to all users and the security company about jamming or losing connection with the devices. Learn More |
| Enclosure | |
|---|---|

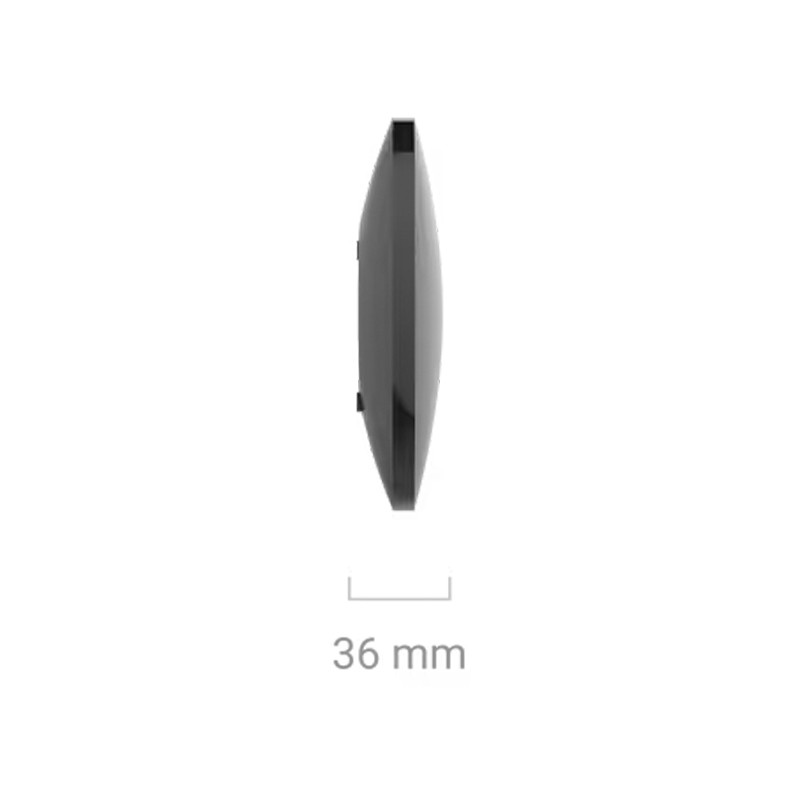

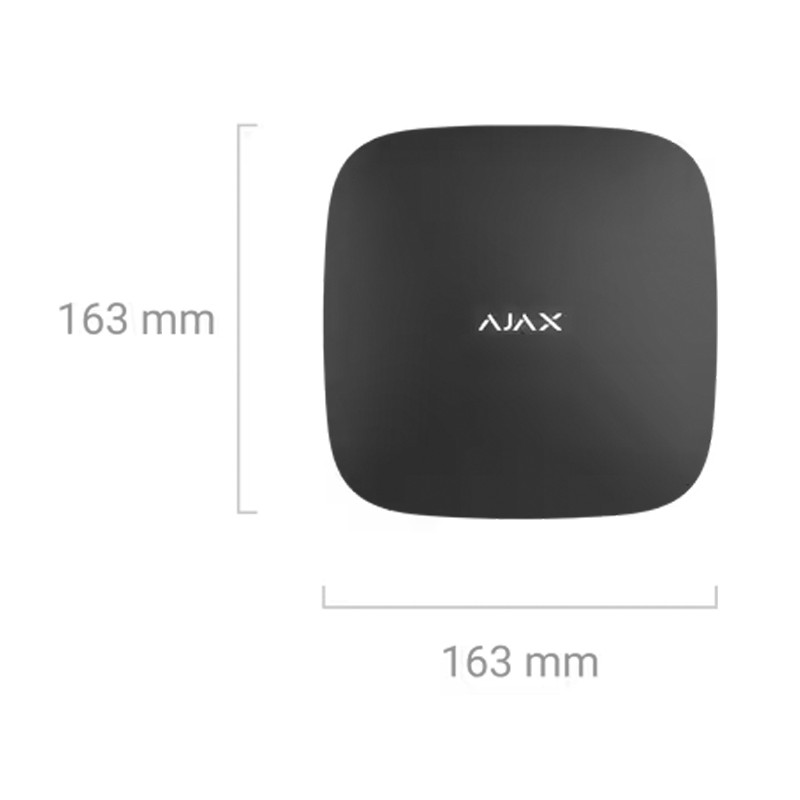

| Dimensions | 163 × 163 × 36 mm |
| Weight | 351 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | |
|---|---|
| Complete set |
Hub 2 Plus Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM card (depends on the sales region) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
