Junction Box
Home Automation
Mount
Mounting box for security IP camera

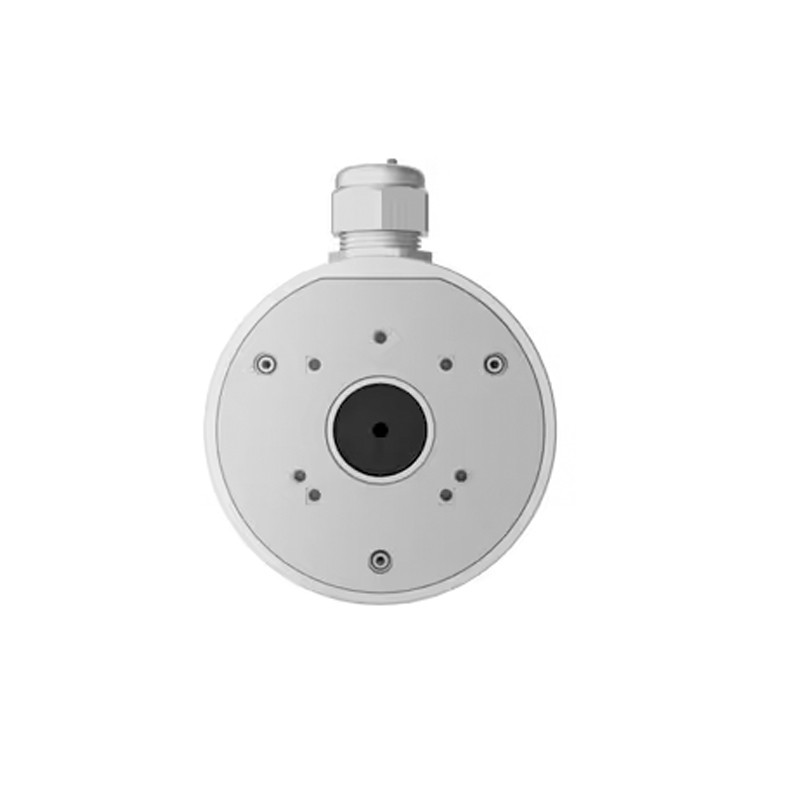

JunctionBox (118×59) is a waterproof mounting box for the Ajax IP cameras’ cable management. It provides convenient installation of devices on concrete walls, ceilings, or columns outdoors and indoors. The mounting box has the PG21 cable gland to protect the cable from damage, loss of insulation, and excessive bending during installation and operation. The sealing ring for one or two cables into the cable gland prevents water, dust, and other contaminants from entering the camera mounting box.
| Compatibility | |
|---|---|
| Compatibility |
BulletCam DomeCam Mini TurretCam |
| Key features | |
|---|---|

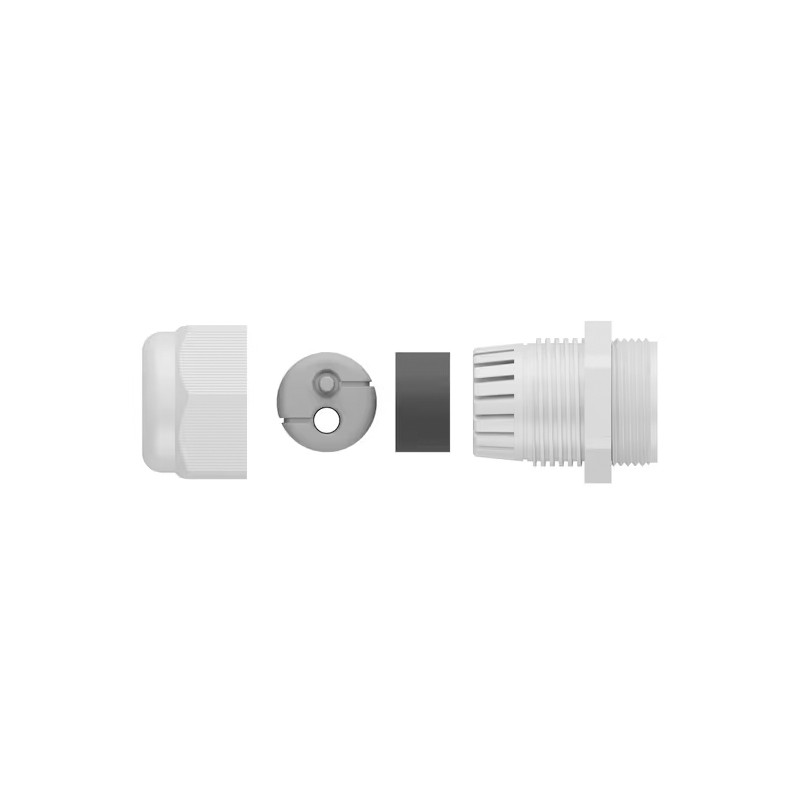

| Cable gland | PG21
To protect the cable from damage, loss of insulation, and excessive bending during installation and operation. |
| Sealing ring | for 1 or 2 cables
To prevent water, dust, and other contaminants from entering the camera mounting box. |
| Mounting wire | to secure the lid during installation
The mounting wire prevents the lid from falling off the camera mounting box until it is secured with screws. |
| Grounding terminal | Grounding is carried out by a specialist in compliance with local electrical safety rules and regulations. |
| Product | |
|---|---|

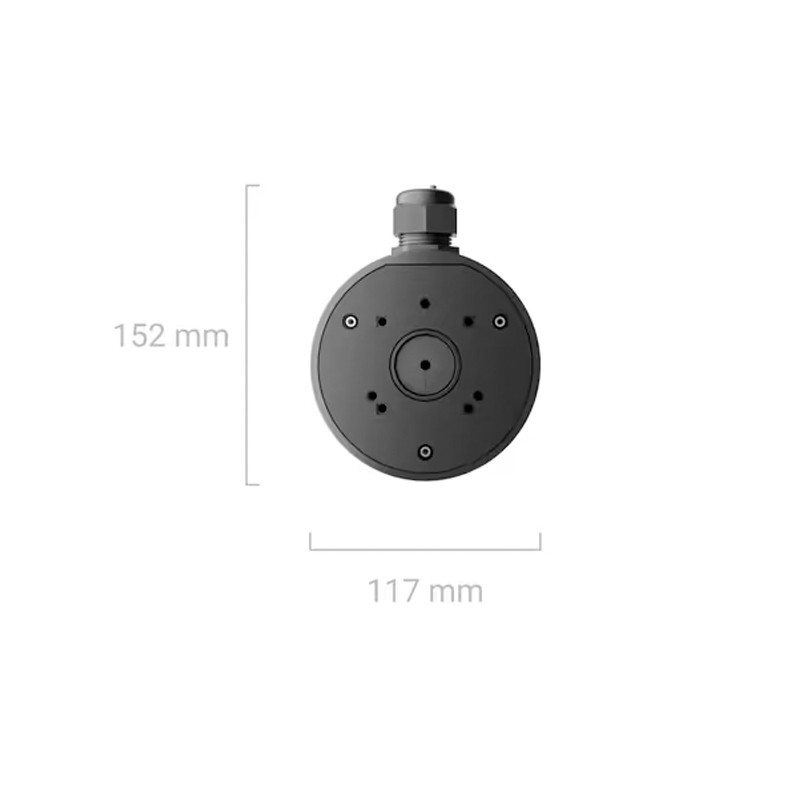

| Dimensions | 152 × 117 × 59 mm |
| Weight | 468 g |
| Operating temperature range | from −40 °C to +60 °C |
| Operating humidity | 90% |
| Complete set | |
|---|---|
| Complete set |
JunctionBox (118×59) Installation template Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
