KeyPad Plus
Home Automation

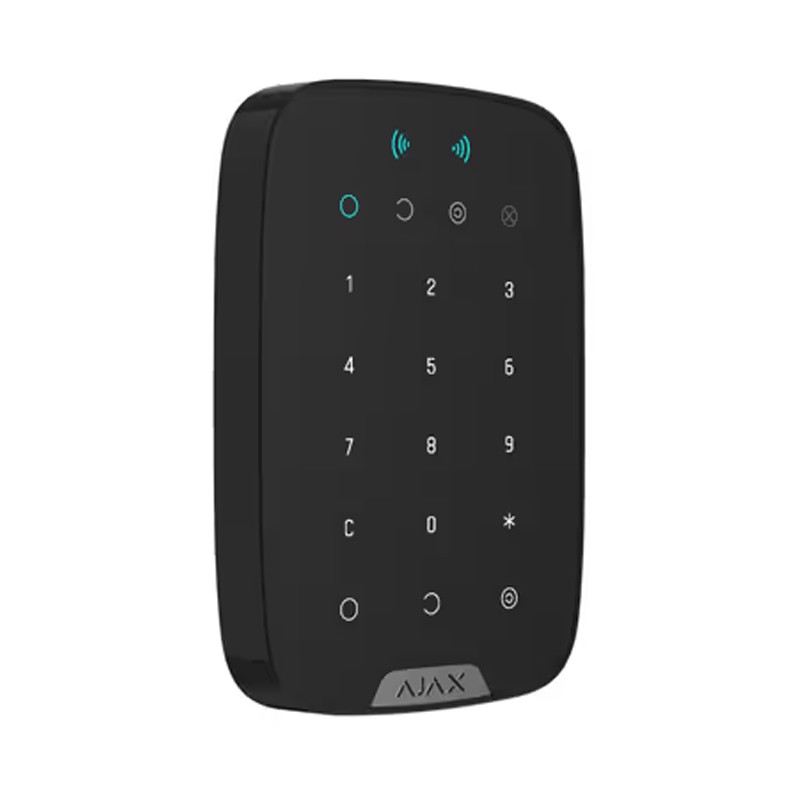

Wireless touch keypad with support for encrypted contactless cards and key fobs
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless touch keypad with support for encrypted contactless cards and key fobs
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Key features | |
|---|---|
| Sensor type | capacitive |
| Malfunctions and security mode indication | When KeyPad Plus is active, it notifies with an LED indication of the security mode, problems with detectors, or communication loss with the hub. |
| Functional button |
Operates in one of the modes. alarmThe system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system. mute fire alarmMutes interconnected fire detectors alarms. Learn moreoff The button is disabled. |
| Control | codes Pass cards Tag key fobs The functionality of the cards/key fobs is the same, but they differ in design. Learn more about PassLearn more about Tag |
| Access via DESFire® |
EV1, EV2
The technology is based on the ISO 14443 international standard and combines 128-bit encryption and copy protection. |
| Access codes |
up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad codeOne code per KeyPad Plus |
| Duress codes | up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad codeOne code per KeyPad Plus. |
| Codes for unregistered people | up to 99 personal codes For people who are not registered in the system. The number of such codes depends on the hub model. |
| Group security management | Enter the general keypad code and the group ID to manage group security. |
| Sabotage protection | |
|---|---|
| Protection against code guessing | KeyPad Plus locks for 3-180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute.The lock time is adjusted by PRO or user with admin rights in the Ajax app |
| Tamper alarm | Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 4 × AA
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3.5 years |
| Keypad’s operating voltage range | 2.25–3.3 V⎓ |
| Keypad’s nominal operating voltage | 3 V⎓ |
| Quiescent keypad’s current consumption at nominal voltage | 0.064 mA |
| Maximum keypad’s current consumption at nominal voltage | 165 mA |
| Full battery capacity | 12,000 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End-of-life battery voltage | 2.25 V⎓
Device is switched off. |
| End-of-life battery capacity | 500 mAh |
| Manufacturer | Huiderui Energizer |
| Enclosure | |
|---|---|

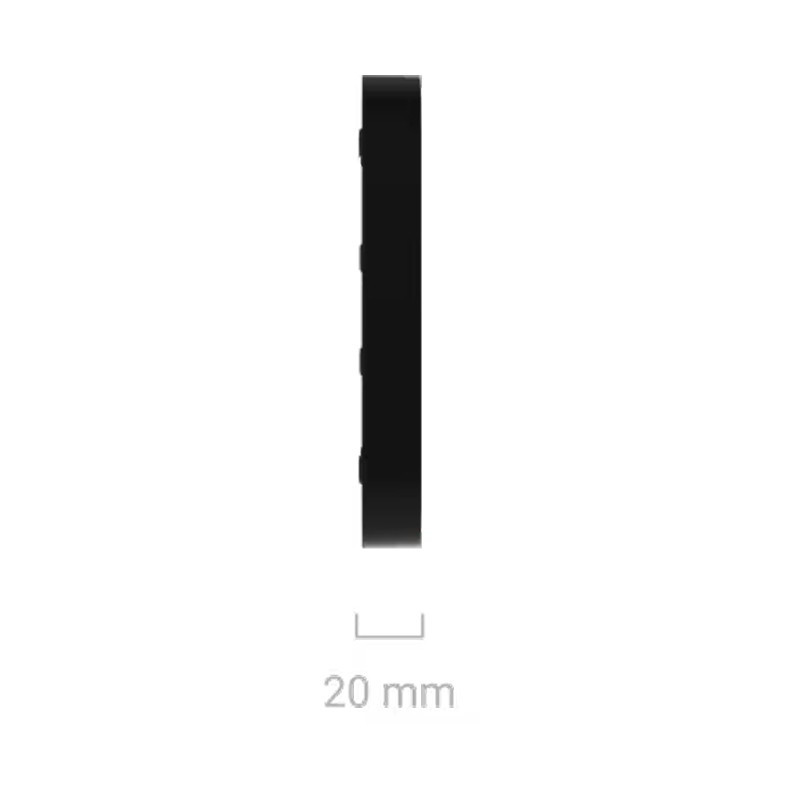

| Dimensions | 165 × 113 × 20 mm |
| Weight | 267 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Complete set | |
|---|---|
| Complete set |

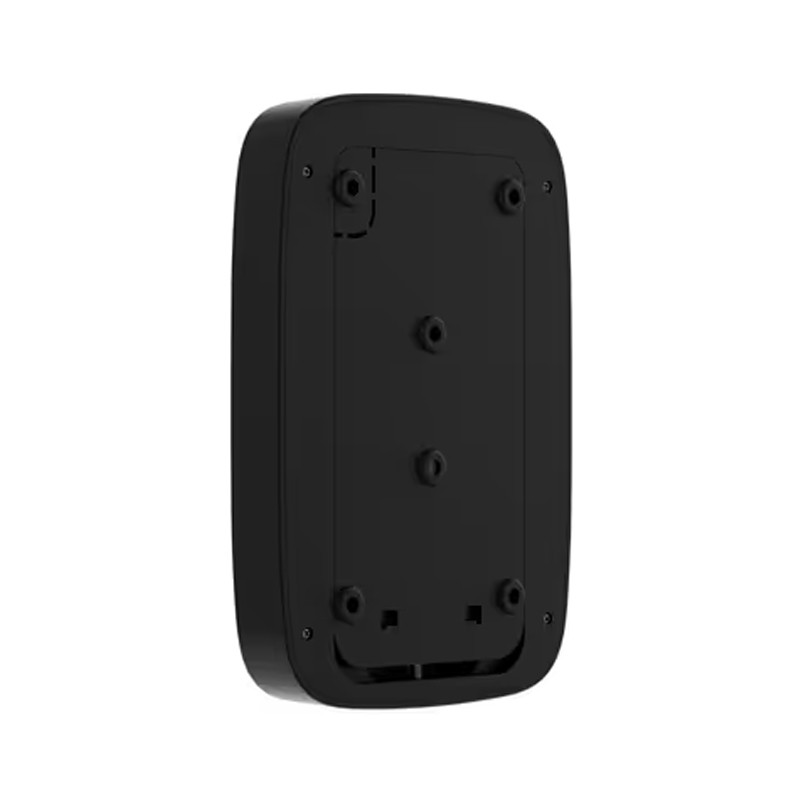

KeyPad Plus Jeweller SmartBracket mounting panel 4 AA batteries (pre-installed) Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
