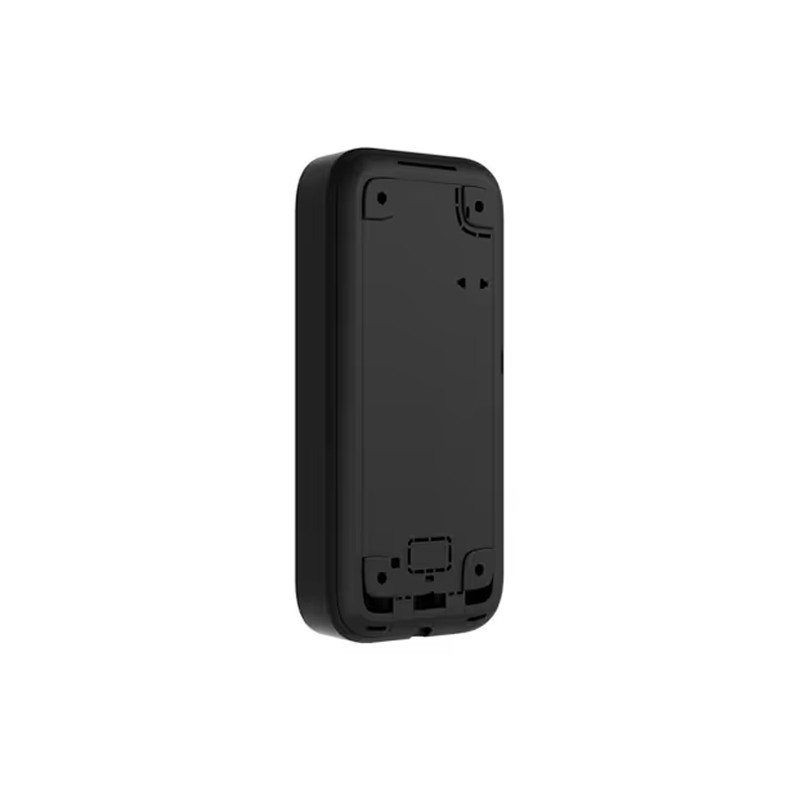

KeyPad TouchScreen
Home Automation
Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology for transmitting the list of the groups, rooms and detectors to form the list of malfunctions. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Radio signal range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Display | |
|---|---|
| Diagonal | 5″ |
| Matrix type | IPS |
| Resolution | 480 × 854 px |
| Sensor | capacitive |
| Brightness settings |
If Auto Adjust is enabled, the display brightness depends on the light conditions. This saves battery power. |
| Backlight lifetime | 30,000 hours Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
| User interface |
|
| Key features | |
|---|---|
| Panic buttons |
Sending an alarm or calling for help from the separate keypad tab. |
| Control |
|
| Contactless access | DESFire® EV1, EV2 ISO14443-А (13.56 MHz) |
| Access codes | up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad codePer each KeyPad TouchScreen. |
| Duress codes |
up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad codePer each KeyPad TouchScreen. |
| Codes for unregistered people |
up to 99 personal codes For people who are not registered in the Ajax system. The number of such codes depends on the hub model. |
| Arming without entering a code | The enabled feature allows the user to arm the system without entering a code or presenting the access device. |
| Group management | Changing the security mode of the groups to which the user has access from the keypad’s display. Learn more |
| Scenarios management | A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices. Learn more |
| Indication of malfunctions and security mode |
If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays. |
| Fire alarm muting | Turns off the fire detectors alarm, including the interconnected alarm. Learn More |
| User pre-authorization | When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad. |
| Contactless authorization with a smartphone | A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher. |
| Auto screen wakeup | The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app. |
| Remote firmware update | When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps.
The keypad must be connected to an external power supply to update the firmware. Learn More |
| ACE Type | type B |
| Sabotage protection | |
|---|---|
| Unauthorized access auto-lock | The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app. |
| Tamper alarm | Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. Learn more |
| Holding screw | To secure the keypad on SmartBracket. |
| Protection against spoofing | device authentication |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 6 × AA
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 1.5 years With default settings and up to 4 interactions with a keypad per day. |
| Keypad’s operating voltage range | 10.5–14 V⎓, up to 0.4 A The batteries serve as a backup when the external power supply is connected. |
| Keypad’s nominal operating voltage | 12 V⎓ |
| Quiescent keypad’s current consumption at nominal voltage | 46 mA |
| Maximum keypad’s current consumption at nominal voltage | 1.5 mA |
| Full battery capacity | 2,650 mAh |
| Low battery voltage | 6.6 V⎓ |
| Low battery recovery voltage | 8.1 V⎓ |
| End-of-life battery voltage | 4.92 V⎓
Device is switched off. |
| End-of-life battery capacity | 350 mAh |
| Enclosure | |
|---|---|
| Dimensions | 172 × 82 × 26 mm |
| Weight | 327 g |
| Operating temperature range | from -10°C to +40°C |
| Operating humidity | up to 75% |
| Complete set | |
|---|---|
| Complete set |
KeyPad TouchScreen Jeweller SmartBracket mounting panel 6 АА batteries (pre-installed) Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
