Home Automation

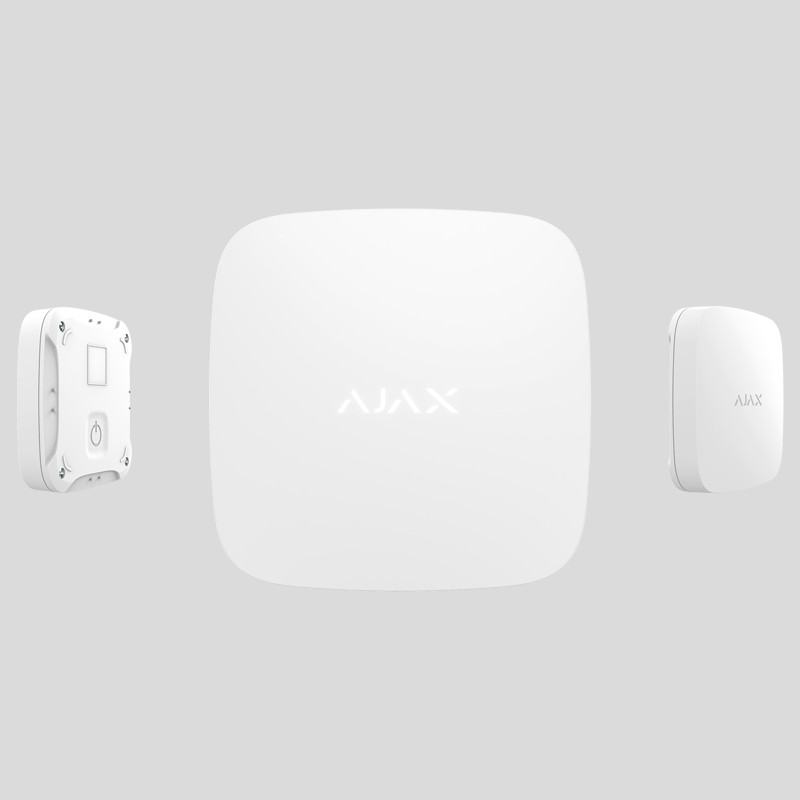

Wireless addressable leak detector
Principle of operation
The device detects first signs of flooding as soon as water gets on one of the four pairs of contacts on the bottom of the detector.
Features
The device has IP65 enclosure protection, meaning it is completely protected against dust and moisture.
Installation and set up
It can be installed in just one minute. The detector only has to be placed on the floor under a washing machine, dishwasher, bathtub or heating radiator.
| Communication | |
|---|---|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,300 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn more |
| Key features | |
|---|---|
| Always active | Detects water leaks 24/7/365 |
| First flooding signs detection | All four sides of the device have contact pairs. LeaksProtect Jeweller detects the first signs of flooding as soon as water reaches at least one of them. |
| Detection time |
within 0.15 s The detector sends an alarm as soon as it becomes wet on either side. |
| Tool-free installation | Place LeaksProtect Jeweller on the floor under a washing machine, dishwasher, bathtub, or heating radiator. |
| Remote control and configuration |
via Ajax apps Ajax apps provide information about the device, including current state, battery charge status, and communication with a hub. |
| LED indication | The LED is placed under the Ajax logo and reports the detector’s states. |
| Automation scenarios |
LeaksProtect Jeweller can trigger automation scenarios, for example, activating WaterStop Jeweller to shut off water supply in case of flooding. Learn more |
| Recommendations | |
|---|---|
| Installation | The device is designed for indoor use only. |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to violate the enclosure integrity. Learn more |
| Protection against spoofing | Device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 2 × AAA (pre-installed), Type C |
| Calculated battery life | up to 5 years |
| Operating voltage range | 2.1–3.3 V⎓ |
| Nominal voltage | 3 V⎓ |
| Quiescent current | 14 μA |
| Maximum current | 33 mA |
| Battery capacity | 1,000 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End-of-life voltage | 2.1 V⎓ (device is switched off) |
| End-of-life capacity | 100 mAh |
| Manufacturer | Huiderui, Energizer |
| Enclosure | |
|---|---|
| Dimensions | 56 × 56 × 14 mm |
| Weight | 40 g |
| Operating temperature | from 0 °C to +50 °C |
| Operating humidity | up to 100% |
| Protection class | IP65 |

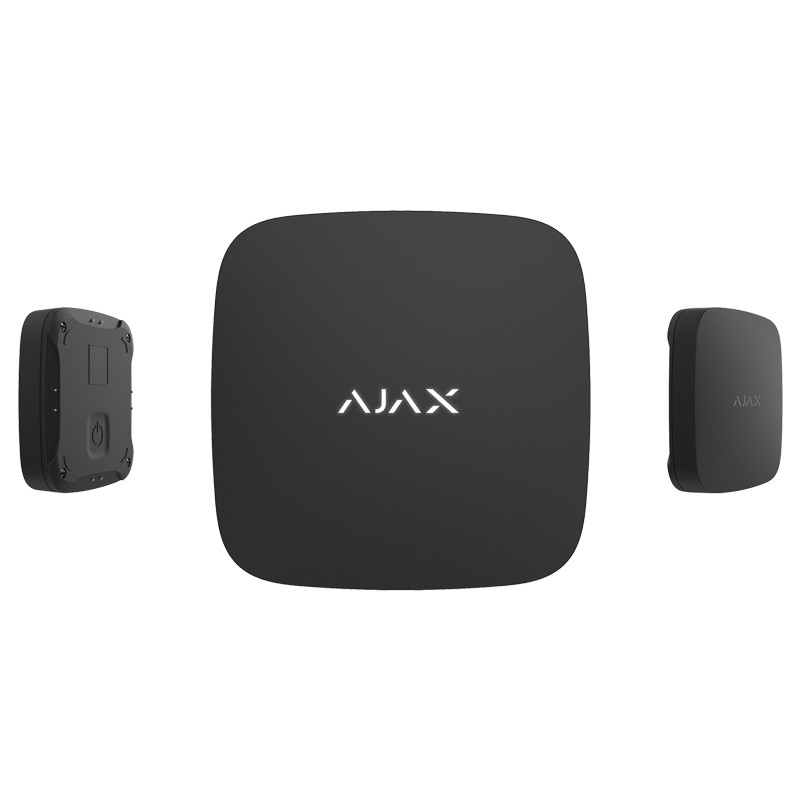

| Colors | Black, White |
| Complete set | |
|---|---|
| Package contents |
LeaksProtect Jeweller 2 × AAA batteries (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
