Wireless resettable button for manual fire alarm activation featuring programmable scenarios. Blue-colored version.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Key features | |
|---|---|
| Resettable frangible element | activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state. |
| Operating modes |
With appropriate settings, it activates an alarm or controls Ajax automation devices. |
| LED status indication | fire alarm malfunctions The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected. |
| Interconnected fire detectors alarms | by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens. Learn More |
| Critical alerts | The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected. |

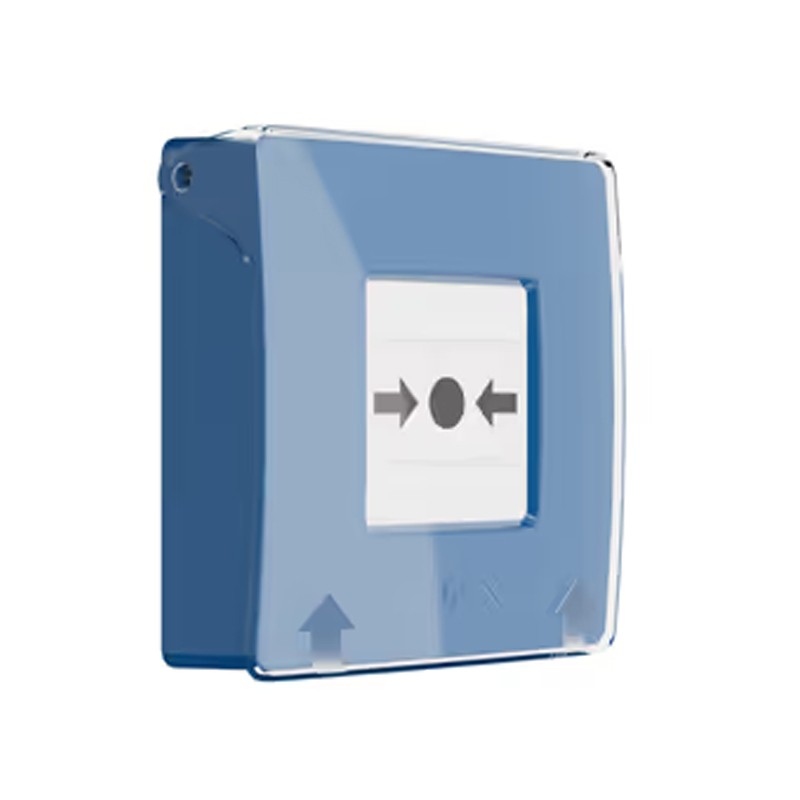

| Protection against accidental presses | Lift the transparent lid to access the frangible element. The lid protects against false button presses. |
| Alarm transmission to CMS | disabled by default |

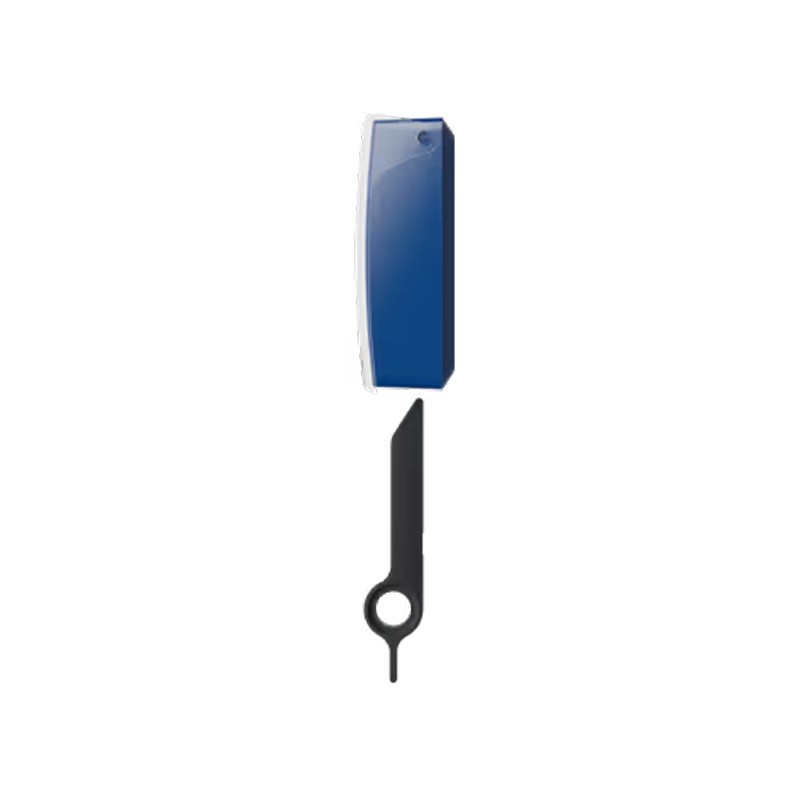

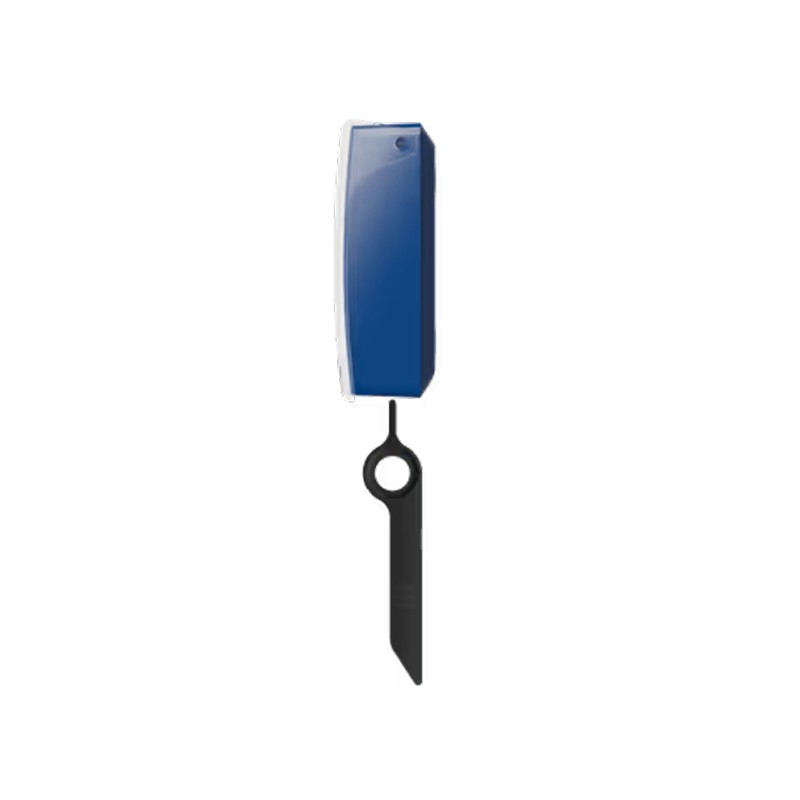

| Special tool (key) | |
|---|---|
| Button reset | after pressing
To reset the button, insert the special tool into the corresponding hole. |
| Hole in the enclosure | to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain. |

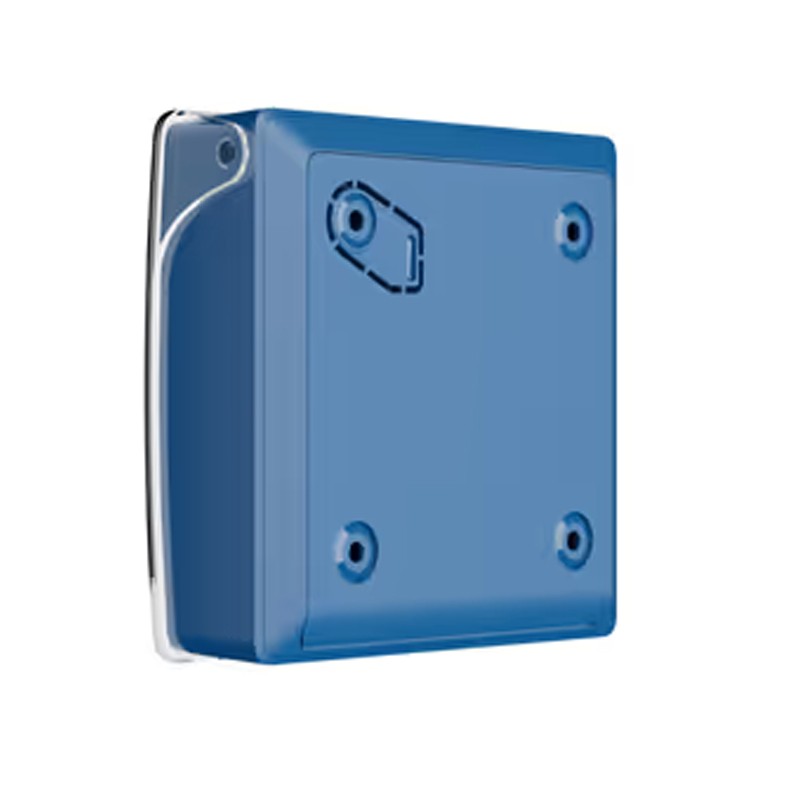

| Convenient dismantling | The special tool opens the lock to dismantle the device from SmartBracket mounting panel. |
| Sabotage protection | |
|---|---|
| Tamper alarm | Notifies on attempts to detach the button from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | via device authentication |
| Detection of communication failure | within 36 s The detection time depends on the Jeweller or Jeweller/Fibra settings. Learn More |
| Power supply | |
|---|---|
| Batteries | 2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years. |
| Enclosure | |
|---|---|

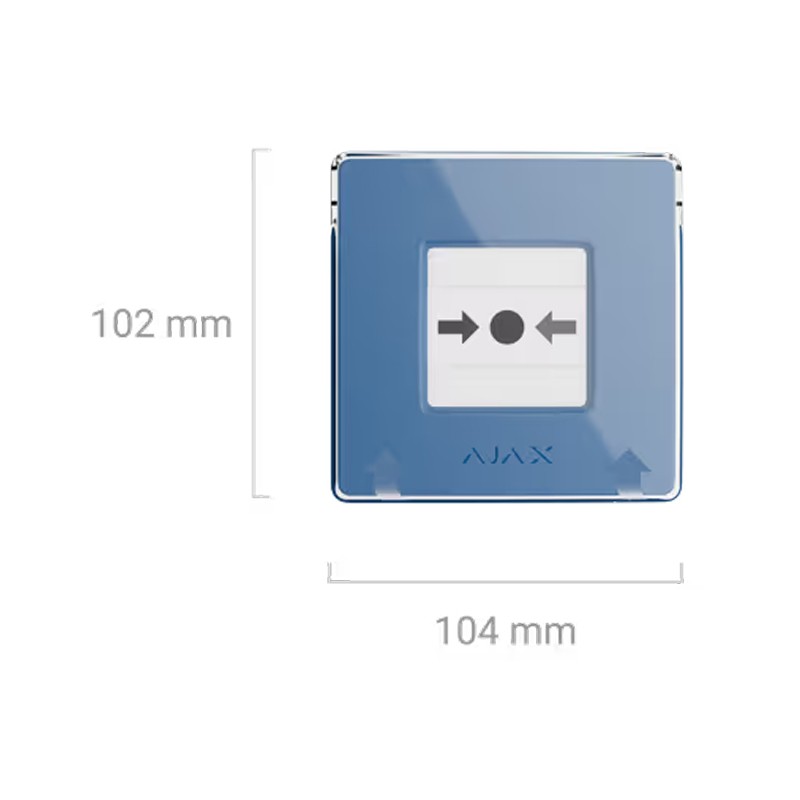

| Dimensions | 102 × 104 × 39 mm |
| Weight | 214 g |
| Operating temperature range | from 0°С to +50°С |
| Operating humidity | up to 80% |
| Complete set | |
|---|---|
| Complete set |
ManualCallPoint (Blue) Jeweller SmartBracket mounting panel Special tool (key) 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
