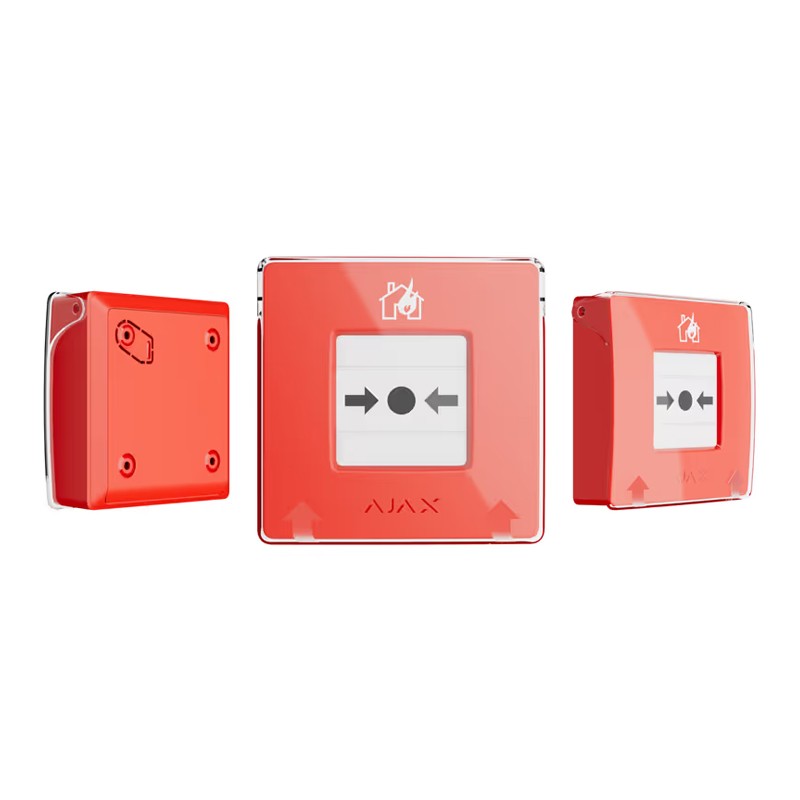

Manual Call Point (Red)
Home Automation
Wireless resettable button for manual fire alarm activation featuring programmable scenarios. Red-colored version.
Qr
Scenarios 9
Tamper
Principle of operation
Ajax ManualCallPoint (Red) Jeweller is a wireless manual alarm button used to trigger a fire alarm by pressing the button in case of emergency.
Features
Supports system-wide fire alarm activation and interlinked alerts with Ajax fire detectors.
Installation and set up
Ready to use out of the box. The battery is pre-installed, and the device is mounted in minutes using the mounting bracket.
Resettable frangible element
activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.
Operating modes
. fire alarm
. scenario trigger
. auxiliary alarm
. panic button
. gas leak alarm
. malfunction alert
. water leak alarm
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Key features | |
|---|---|
| Resettable frangible element | activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state. |
| Operating modes |
With appropriate settings, it activates an alarm or controls Ajax automation devices. |
| LED status indication | fire alarm malfunctions The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected. |
| Interconnected fire detectors alarms | by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens. Learn More |
| Critical alerts | The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected. |
| Protection against accidental presses | Lift the transparent lid to access the frangible element. The lid protects against false button presses. |
| Alarm transmission to CMS | can be disabled |

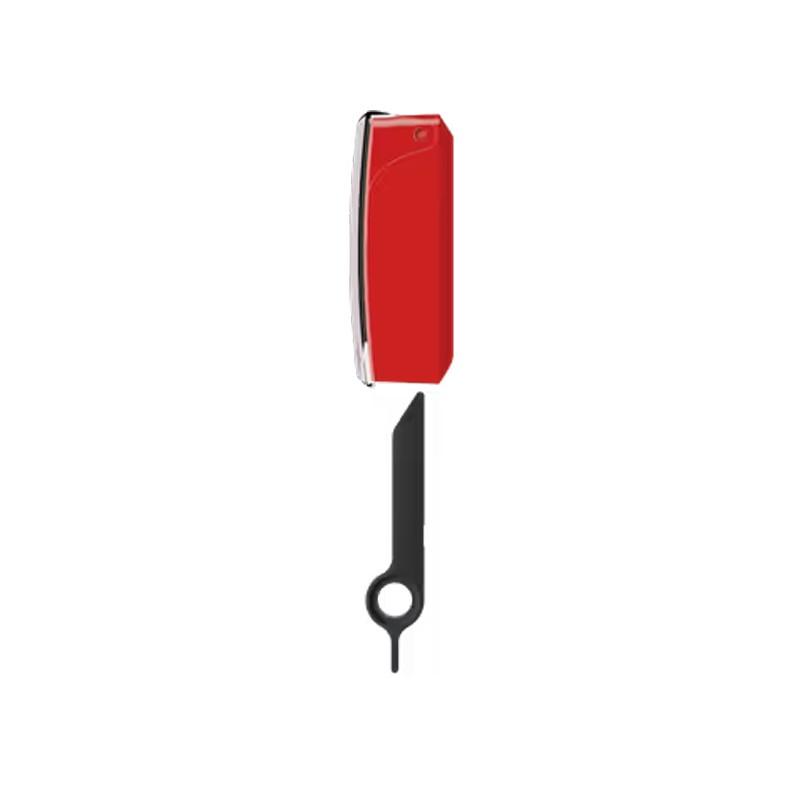

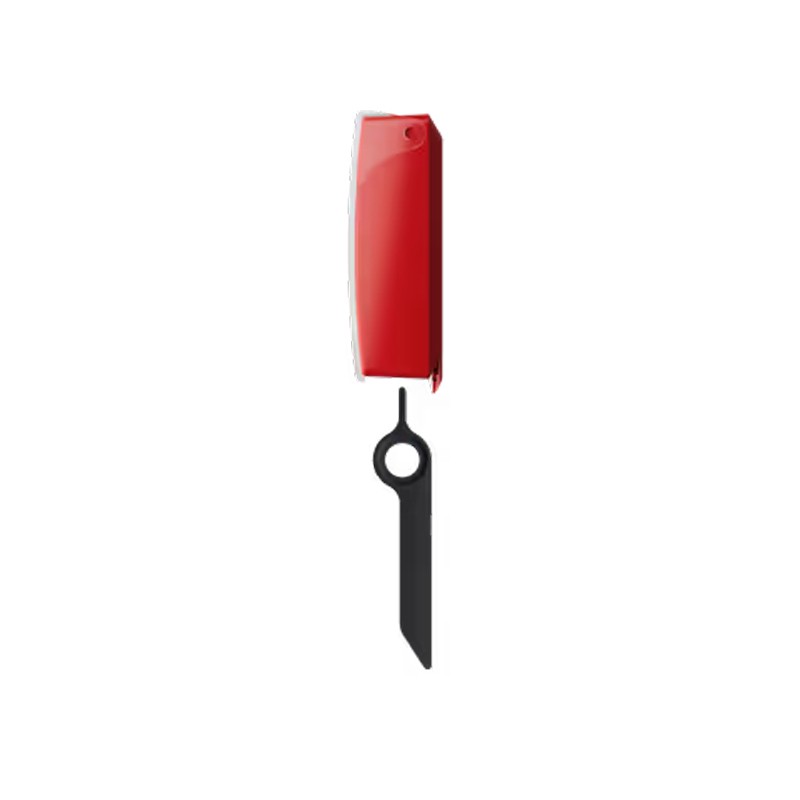

| Special tool (key) | |
|---|---|
| Button reset | after pressing
To reset the button, insert the special tool into the corresponding hole. |
| Hole in the enclosure | to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain. |
| Convenient dismantling | The special tool opens the lock to dismantle the device from SmartBracket mounting panel. |
| Sabotage protection | |
|---|---|
| Tamper alarm | Notifies on attempts to detach the button from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | via device authentication |
| Detection of communication failure | within 36 s The detection time depends on the Jeweller or Jeweller/Fibra settings. Learn More |
| Power supply | |
|---|---|
| Batteries | 2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years. |

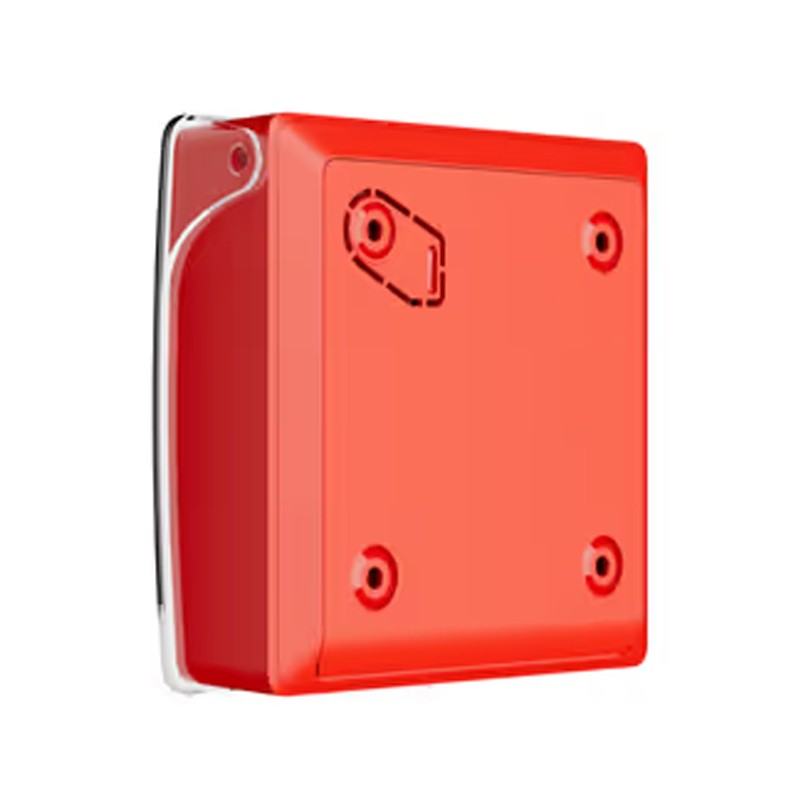

| Enclosure | |
|---|---|

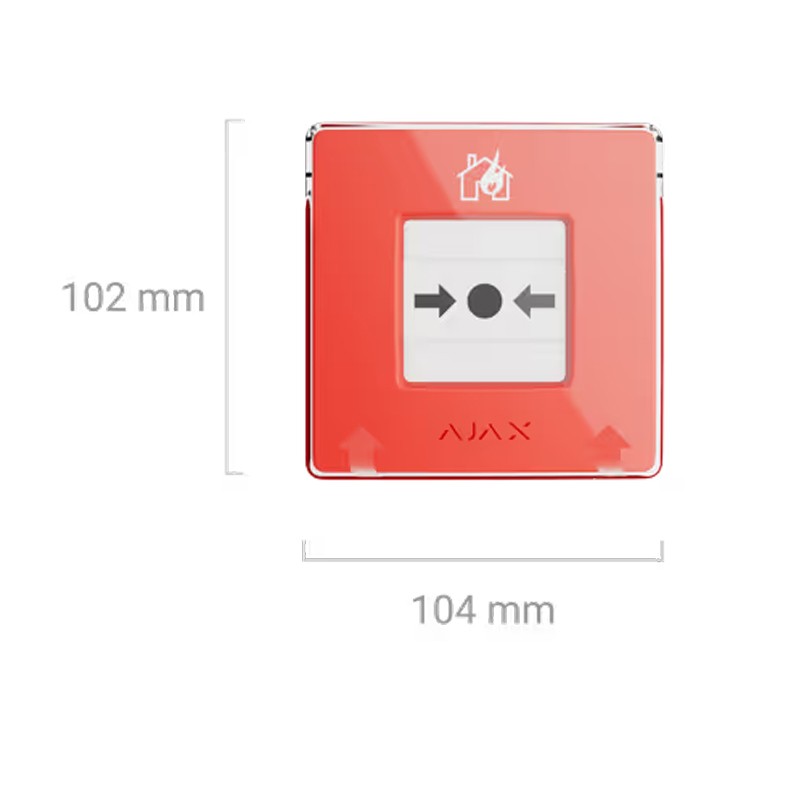

| Dimensions | 102 × 104 × 39 mm |
| Weight | 214 g |
| Operating temperature range | from 0°С to +50°С |
| Operating humidity | up to 80% |
| Complete set | |
|---|---|
| Complete set |
ManualCallPoint (Red) Jeweller SmartBracket mounting panel Special tool (key) 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
