• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

To prevent radio interference and jamming.

• Two-way communication.
• Block encryption featuring a dynamic key.
• Advanced anti-sabotage.
• Data packages reload in case of transmission errors.
• Photo delivery check.

Between detector and hub or range extender in an open space.

PIR sensor

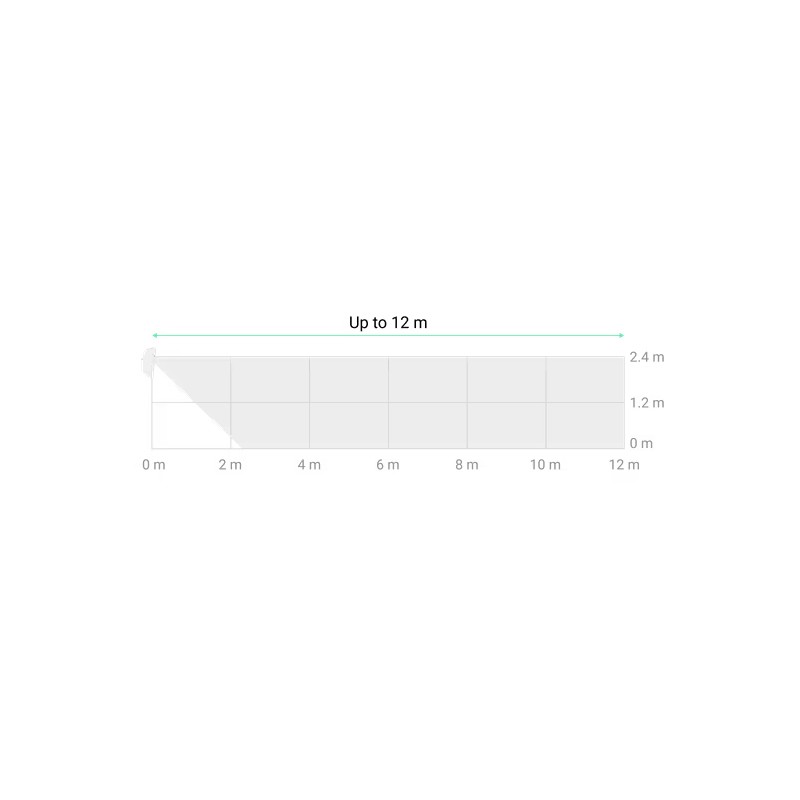

When installed at a height of 2.4 m.

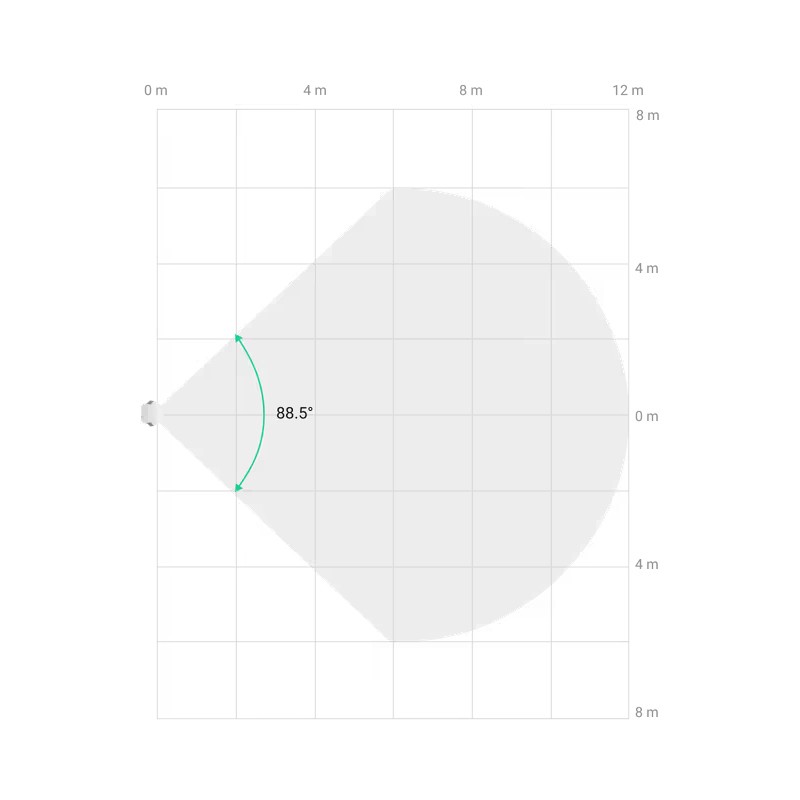

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Adjusted by a PRO or user with admin rights in Ajax apps.

Software algorithm.

The feature is available for devices with the 15.59.35.14 firmware version or later1.

1 Contact your Ajax supplier or authorized partner to check the availability in your region.

from 1 to 3 images with a resolution of 640 × 480 px

Adjusted by a PRO or user with admin rights in Ajax apps.

up to 7 s — 160 × 120 px resolution

up to 9 s — 320 × 240 px resolution

up to 20 s — 640 × 480 px resolution

When the hub is connected via Ethernet or 4G and the Wings signal strength between a hub and device is 2–3 bars. Photo delivery time when the detector is connected via a range extender is available here.

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Pre-installed.

up to 4 years

MotionCam Jeweller

SmartBracket mounting panel

Installation kit

2 × CR123A battery (pre-installed)

Quick start guide
