Motion Cam Outdoor
Home Automation
Wireless PIR motion detector that takes photos by alarm. For outdoor and indoor use
Principle of operation
Detects movement using two PIR sensors that register the temperature difference between a person and the background. When motion is detected, the built-in camera takes photos for visual alarm verification.
Features
Supports photo verification of alarms and sends images to the Ajax app for instant situation confirmation.
Installation and set up
Ready to use out of the box. The battery is pre-installed, and the detector is mounted in minutes using the SmartBracket mount.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Radio communication range | up to 1,700 m Between the detector and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Detection | |
|---|---|
| Sensitive element |
2 × PIR sensor |
| Photo by Alarm | A built-in camera is activated if the detector is armed and motion is detected. |
| Motion detection distance | up to 3–15 m
When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure. Learn more |

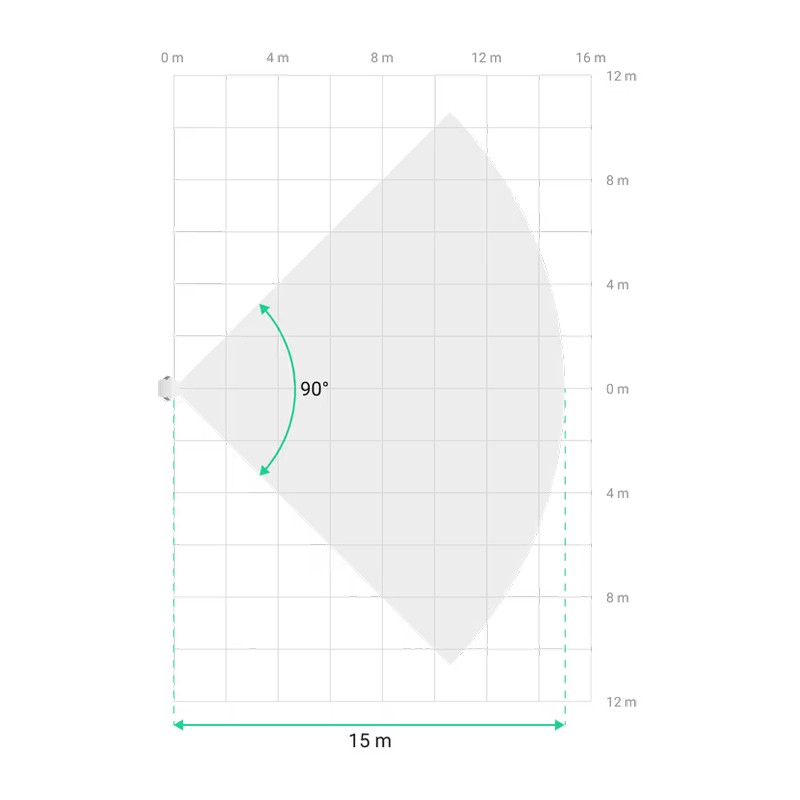

| Motion detection angles | horizontal — 90° |
| Camera angles | horizontal — 105° vertical — 50° |
| TV distortion | Barrel — 17% EBU standard. |
| Motion detection speed | from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels
Adjusted by a PRO or user with admin rights in Ajax apps. |
| Pet immunity |
height: up to 80 cm weight: not relevant Learn More |
| False alarm prevention |
LISA SmartDetect Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from −25 °C to +60 °C |
| Photo verification | |
|---|---|
| Photo by Alarm | A built-in camera is activated if the detector is armed and motion is detected. Learn more |
| Adjustable photo resolution | 640 × 352 px 320 × 176 px (by default) Adjusted by PRO or user with admin rights in the Ajax app. |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 images with a resolution 320 × 176 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Photo delivery time | up to 9 s — 320 × 176 px resolution up to 20 s — 640 × 352 px resolution Photo delivery time depends on the image resolution selected in the device settings. Learn More |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Anti-masking system | detects attempts to block the detector view Learn More |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller settings. Learn more |
| Power supply | |
|---|---|
| Battery | 4 × CR123A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3 years With Delay when entering feature disabled. Learn Moreup to 2.5 years With Delay when entering feature enabled. Learn More |
| Detector’s operating voltage range | 3.8−6.2 V⎓ |
| Detector’s nominal operating voltage | 6 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 23 μA |
| Maximum detector’s current consumption at nominal voltage | 906 mA |
| Full battery capacity | 3,200 mAh |
| Low battery voltage | 4.65 V⎓ |
| Low battery recovery voltage | 5 V⎓/td> |
| End-of-life battery voltage | 3.8 V⎓
Device is switched off. |
| End-of-life battery capacity | 500 mAh |
| Manufacturer | Huiderui or Panasonic |
| Enclosure | |
|---|---|

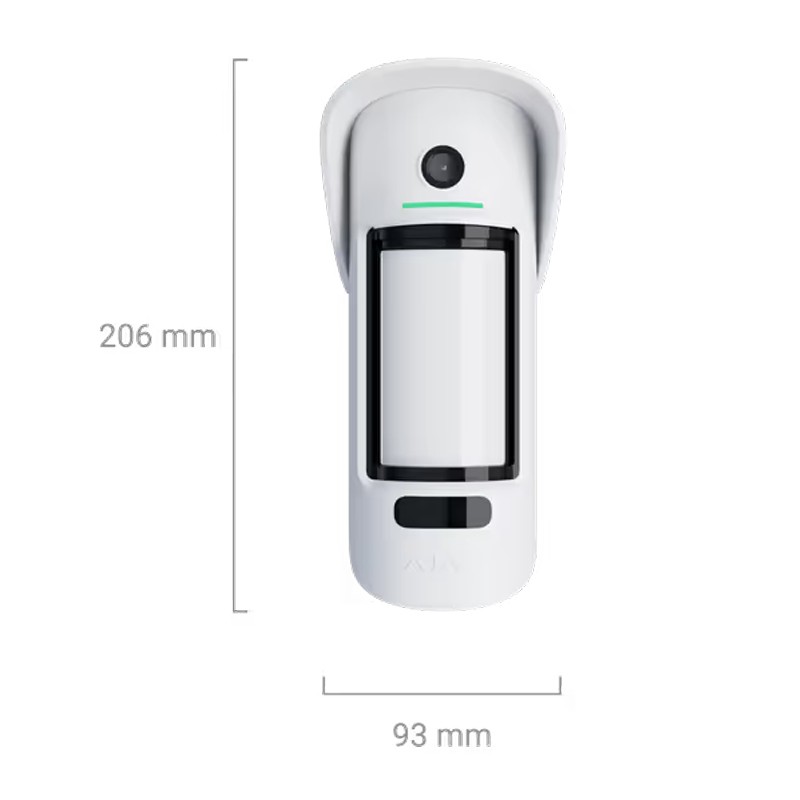

| Dimensions | 206 × 108 × 93 mm |
| Weight | 470 g |
| Operating temperature range | from −25°C to +60°C |
| Operating humidity | up to 95% |
| Protection class | IP55 |
| Complete set | |
|---|---|
| Complete set |
MotionCam Outdoor Jeweller SmartBracket mounting panel Hood visor Installation kit 4 × CR123A battery (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
