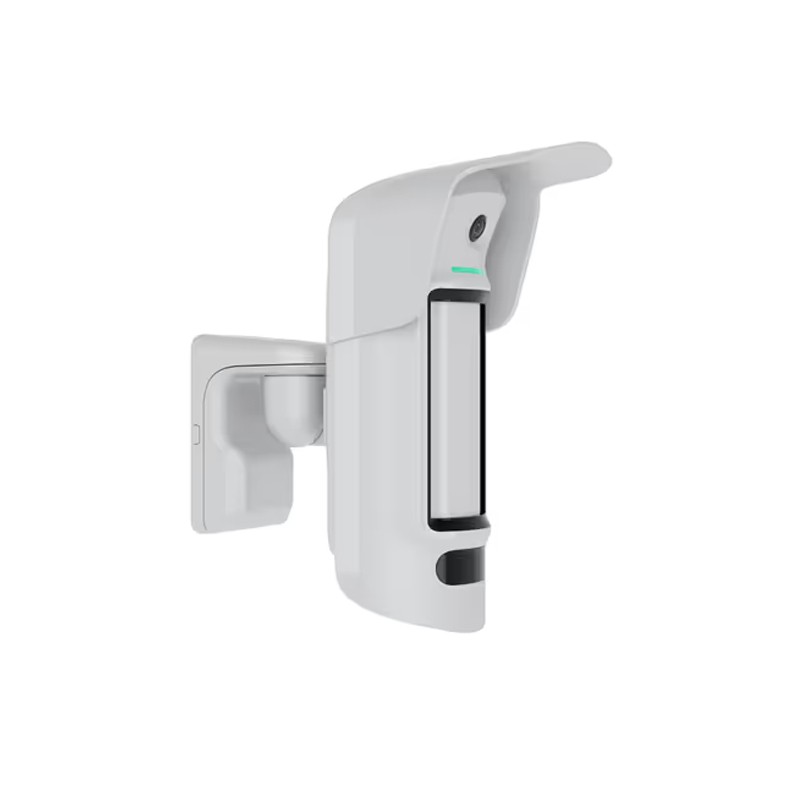

Motion Cam Outdoor High Mount (PhOD)
Home Automation
Wireless PIR motion detector with extended photo verification possibilities. For outdoor installation at a height of 2–4 m.
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless PIR motion detector with extended photo verification possibilities. For outdoor installation at a height of 2–4 m.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Detection | |
|---|---|
| Sensitive elements | 2 × PIR sensor 1 × K-band microwave sensor Operating frequency: 24 GHz. |

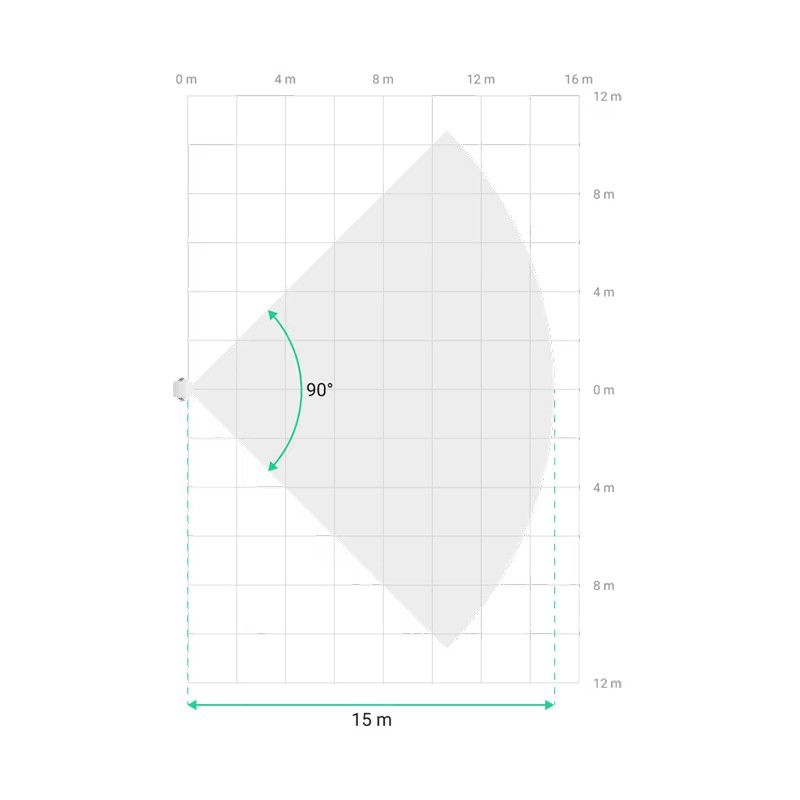

| Motion detection distance | up to 15 m
When installed at a height of 2–4 m. |
| Motion detection angles | horizontal — 90° |
| Motion detection speed | from 0.3 to 2.0 m/s
The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels
Adjusted by a PRO or a user with admin rights in Ajax apps. |
| False alarm prevention | SmartDetect
Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from −25 °C to +60 °C |
| Photo verification | |
|---|---|
| Photo by Alarm | The built-in camera is activated if the detector is armed and movement is detected. Learn more |
| Photo on demand | A user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. Learn more |
| Photo by scenario | The detector takes pictures automatically when other Ajax detectors are triggered. The feature is not configured by default. Learn more |
| Photo by schedule | The detector automatically takes photos at the specified time. The feature is not configured by default. Learn more |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. Learn more |
| Adjustable photo resolution | 640 × 480 px 320 × 240 px (default) Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Camera viewing angles | horizontal — 115° vertical — 84° |
| HDR image | Improves the accuracy of detail in bright and dark scenes. |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 images with a resolution of 320 × 240 px from 1 to 3 images with a resolution of 640 × 480 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Photo delivery time | up to 9 s for 320 × 240 px resolution up to 20 s for 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
| Sabotage protection | |
|---|---|
| Tampering alarm |
Alerts of attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Magnetometer | detects attempts to tilt or shift the detector or detach it from the surface |
| Anti-masking system | detects attempts to block the detector view Learn More |
| Holding screw | secures the device on SmartBracket |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s
Detection time depends on the Jeweller/Fibra settings. |
| Main Power supply | |
|---|---|
| Battery | 6 × CR123A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3 years Learn More |
| Detector operating voltage range | 3.8−6.5 V⎓ |
| DetectorNominal operating voltage | 6 V⎓ |
| Quiescent current consumption at nominal voltage | 45 μA |
| Maximum current consumption at nominal voltage | 1,200 mA |
| Full battery capacity | 4,800 mAh |
| Low battery voltage | 4.2 V⎓ |
| Low battery recovery voltage | 5.0 V⎓/td> |
| End-of-life battery voltage | 3.8 V⎓
The device is switched off. |
| End-of-life battery capacity | 300 mAh |
| Manufacturer | Huiderui |
| Optional power supply | |
|---|---|
| External supply operating voltage | 12−24 V⎓
The batteries serve as a backup when an external power supply is connected. |
| Enclosure | |
|---|---|

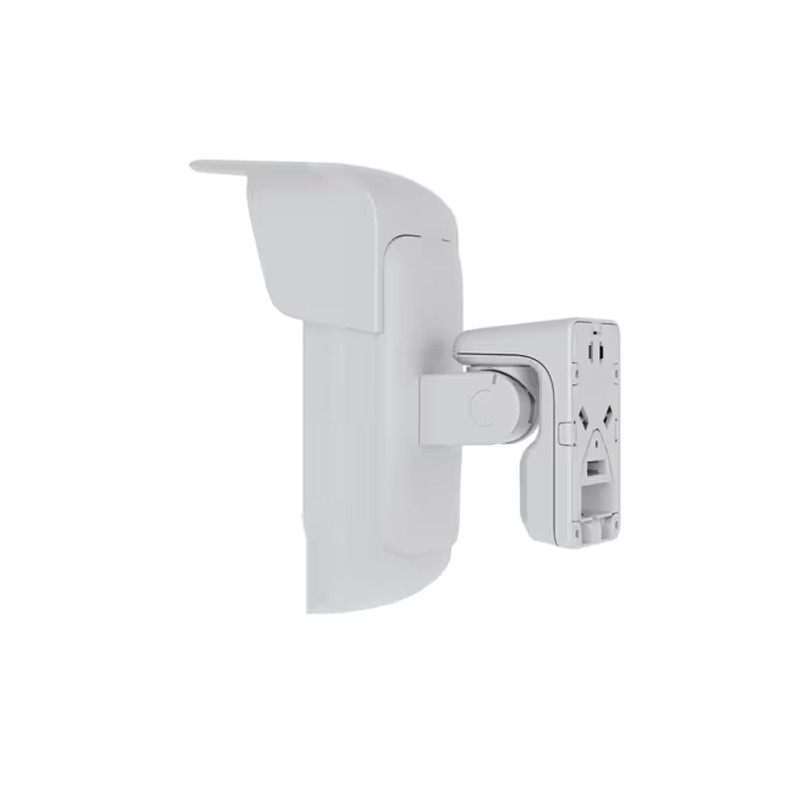

| Dimensions with the swivel mount | 234 × 98 × 230 mm |

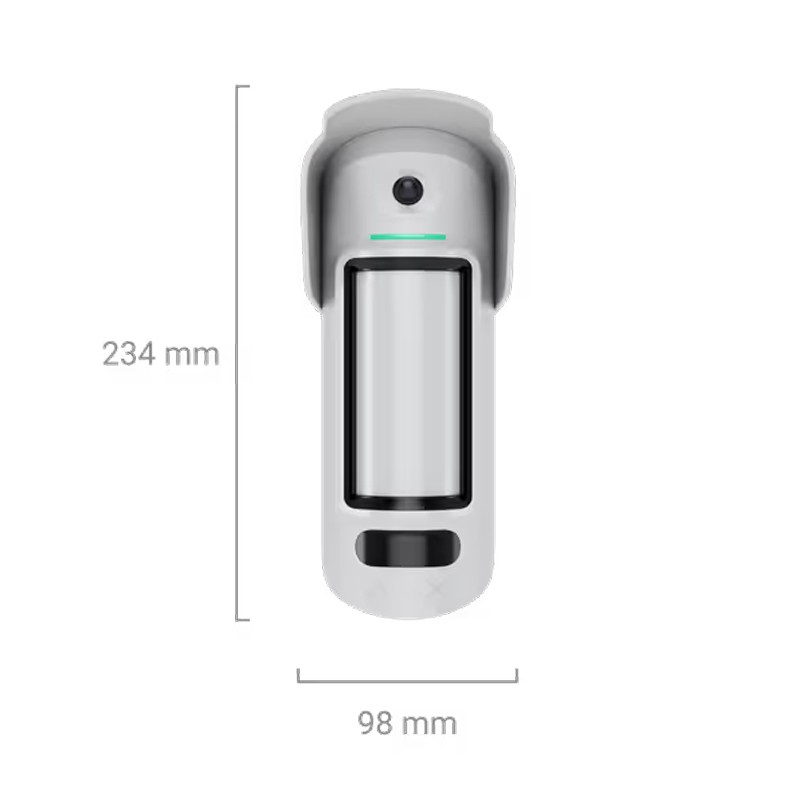

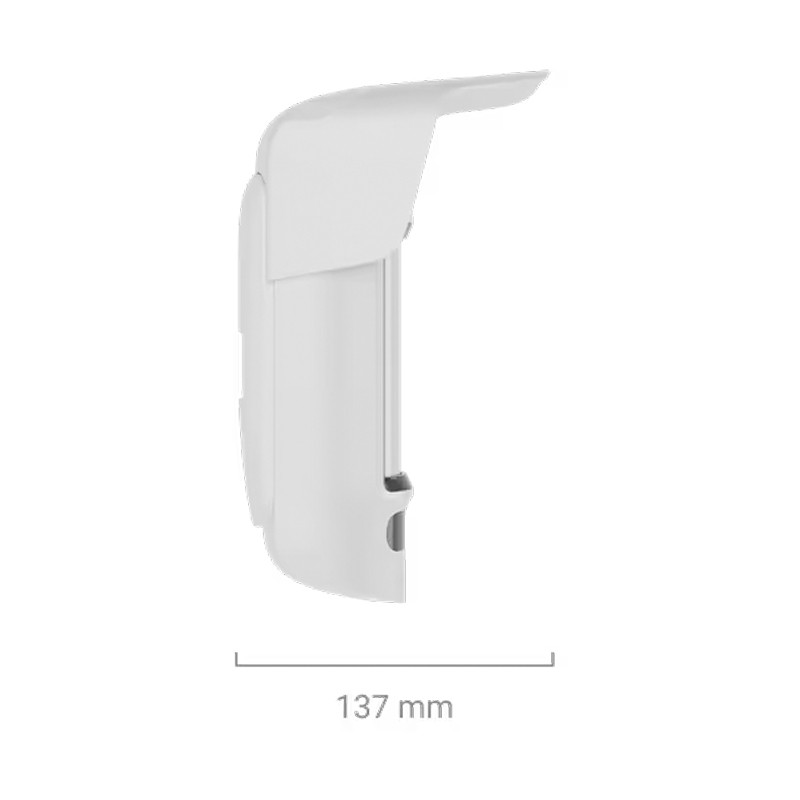

| Dimensions without the swivel mount | 234 × 98 × 137 mm |
| Weight with the swivel mount | 1,010 g |
| Weight without the swivel mount | 620 g |
| Operating temperature range | from −25 °C to +60 °C |
| Operating humidity | up to 95% |
| Protection class | IP55 |
| Complete set | |
|---|---|
| Complete set |
MotionCam Outdoor HighMount (PhOD) Jeweller 6 × CR123A battery (pre-installed) SmartBracket mounting panel Swivel mount Hood Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
