Motion Cam Outdoor (PhOD)
Home Automation
Wireless PIR motion detector with extended photo verification possibilities. For outdoor and indoor use
Principle of operation
Detects movement using two PIR sensors that register the temperature difference between a person and the background. The built-in camera can take photos both during alarms and on demand.
Features
Supports photo by alarm, by scenario, and on demand, allowing users to check the site at any time in the Ajax app.
Installation and set up
Ready to use out of the box. The battery is pre-installed, and the detector is mounted in minutes using the SmartBracket mount.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Radio communication range | up to 1,700 m Between the detector and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Detection | |
|---|---|
| Sensitive elements |
2 × PIR sensor |
| Motion detection distance | up to 3–15 m
When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure. |

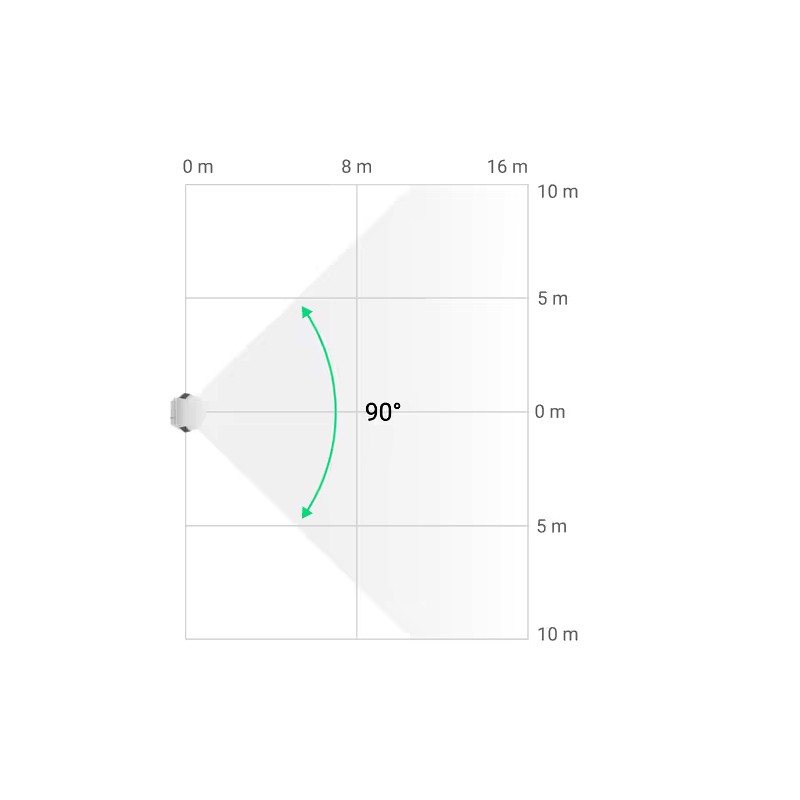

| Motion detection angles | horizontal — 90° vertical — N/A |
| Motion detection speed | from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels
Adjusted by a PRO or user with admin rights in Ajax apps. |
| Pet immunity |
height: up to 80 cm weight: not relevant Learn More |
| False alarm prevention |
LISA SmartDetect Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from −25 °C to +60 °C |
| Photo verification | |
|---|---|
| Photo by Alarm | A built-in camera is activated if the detector is armed and motion is detected. Learn more |
| Photo on demand | User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default. Learn more |
| Photo by scenario | A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default. Learn more |
| Photo by schedule | The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. Learn more |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. Learn more |
| Photo resolution |
640 × 352 px 320 × 176 px (by default) Adjusted by PRO or user with admin rights in the Ajax app. |
| Camera viewing angles | horizontal — 105° vertical — 50° |
| IR backlight | For night photography and low light conditions. |
| Pictures in a series | from 1 to 5 images with resolution of 320 × 176 px from 1 to 3 images with resolution of 640 × 352 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Photo delivery time | up to 9 s — 320 × 176 px resolution up to 20 s — 640 × 352 px resolution When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here. |
| TV distortion (EBU standard) | barrel — 17% |
| Sabotage protection | |
|---|---|
| Anti-masking system | The detector is equipped with masking sensors reacting to hindering, covering and painting the lens. Learn More |
| Tampering alarm |
Alerts of attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against forgery | device authentication |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller settings. Learn more |
| Power supply | |
|---|---|
| Battery | 4 × CR123A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3 years With Delay when entering feature disabled. Learn More |
| Operating voltage range | 3.8−6.2 V⎓ |
| Nominal operating voltage | 6 V⎓ |
| Quiescent current consumption at nominal voltage | 50 μA |
| Maximum current consumption at nominal voltage | 1 mA |
| Full battery capacity | 3,200 mAh |
| Low battery voltage | 4.65 V⎓ |
| Low battery recovery voltage | 5 V⎓/td> |
| End-of-life battery voltage | 3.8 V⎓
Device is switched off. |
| End-of-life battery capacity | 3,080 mAh |
| Manufacturer | Huiderui or Panasonic |
| Enclosure | |
|---|---|

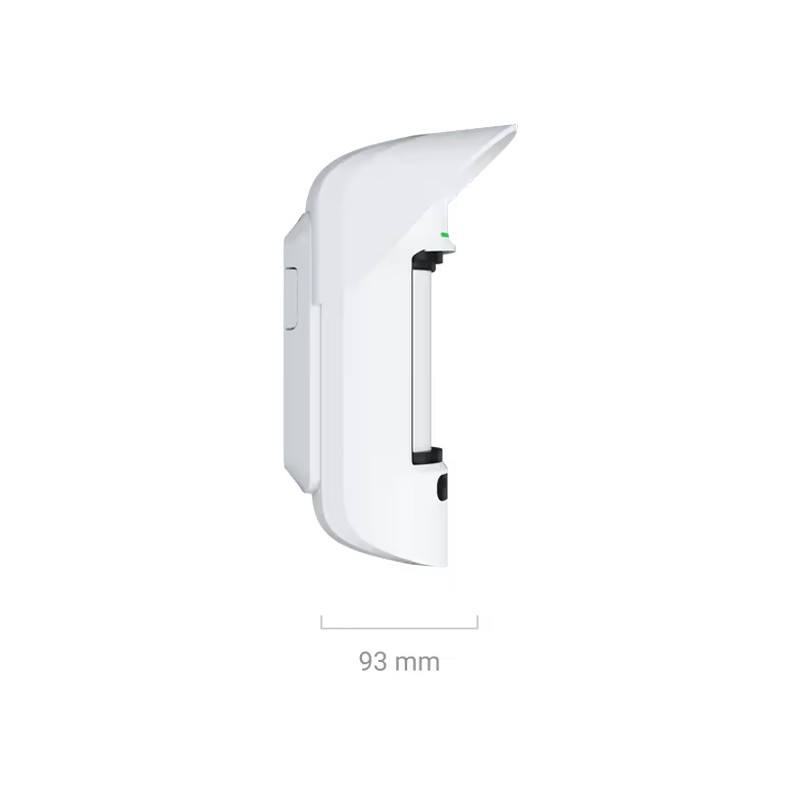

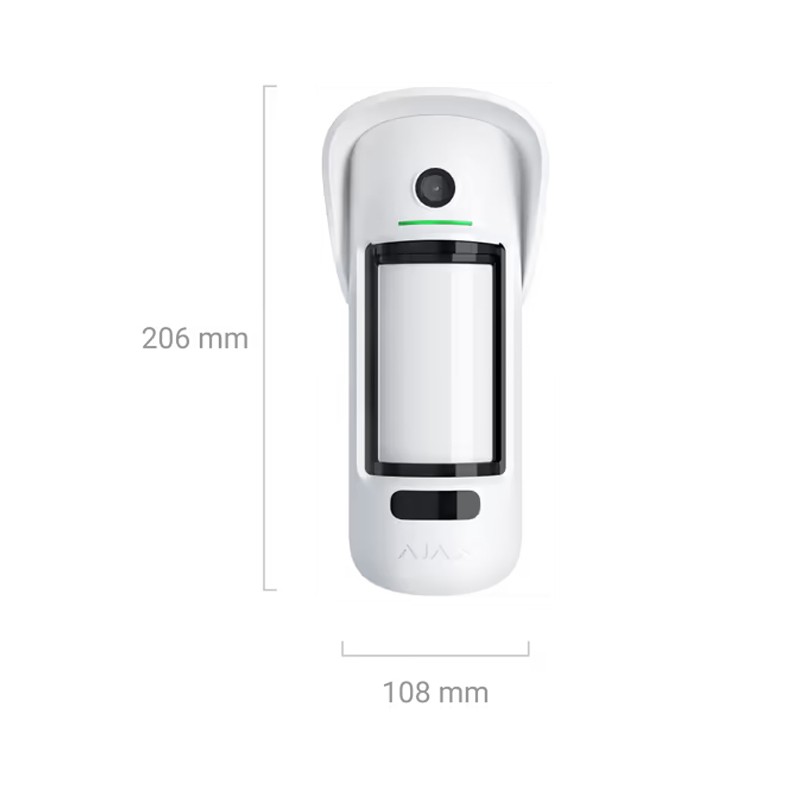

| Dimensions | 206 × 108 × 93 mm |
| Weight | 470 g |
| Operating temperature range | from −25°C to +60°C |
| Operating humidity | up to 95% |
| Protection class | IP56 |
| Complete set | |
|---|---|
| Complete set |
MotionCam Outdoor (PhOD) Jeweller Hood To protect the camera and masking sensors from snow and rain. SmartBracket mounting panel Installation kit 4 × CR123A battery Pre-installed. Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
