Motion Cam (PhOD)
Home Automation
Wireless PIR motion detector with extended photo verification possibilities
Principle of operation
Detects motion using a PIR sensor by sensing the temperature difference between a person and the background. The built-in camera can take photos both during alarms and on demand.
Features
Supports photo on demand, by scenario, and by alarm, allowing users to check the situation at the site at any time from the Ajax app.
Installation and set up
Ready to use out of the box. The battery is pre-installed, and the detector is mounted in minutes using the SmartBracket mount.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio signal range | up to 1,700 m Between a hub and connected devices (in an open space). The maximum range depends on the connected device. Learn More |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photos. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Radio signal range | up to 1,700 m
Between detector and hub or range extender in an open space. Learn more |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. Learn more |
| Detection | |
|---|---|
| Sensitive element |
1 PIR sensor |
| Motion detection distance | up to 12 m
When installed at a height of 2.4 m. |
| Motion detection angles | horizontal — 88.5° |
| Motion detection speed | from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels
Adjusted by a PRO or user with admin rights in Ajax apps. |
| Pet immunity | weight: up to 20 kg height: up to 50 cm Learn More |
| False alarm prevention | SmartDetect
Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from −10°C to +40°C. |
| Photo verification | |
|---|---|
| Photo by alarm | A built-in camera is activated if the detector is armed and motion is detected. Learn more |
| Photo on demand | User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default. Learn more |
| Photo by scenario | A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default. Learn more |
| Photo by schedule | The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. |
| Photo resolution | 640 × 480 px 320 × 240 px (by default) 160 × 120 px Adjusted by a PRO or user with admin rights in Ajax apps. |
| HDR image | Improves the accuracy of detail in bright and dark scenes.
The feature is available for devices with the 16.59.36.5 firmware version or later1. 1 Contact your Ajax supplier or authorized partner to check the availability in your region. |
| IR backlight | For night photography and low light conditions. |
| Pictures in a series | from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with a resolution of 640 × 480 px Adjusted by a PRO or user with admin rights in Ajax apps. |
| Photo delivery time |
up to 7 s — 160 × 120 px resolution up to 9 s — 320 × 240 px resolution up to 20 s — 640 × 480 px resolution When the hub is connected via Ethernet or 4G and the Wings signal strength between a hub and device is 2–3 bars. Photo delivery time when the detector is connected via a range extender is available here. |
| Sabotage protection | |
|---|---|
| Tampering alarm |
Alerts of attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 2 × CR123A
Pre-installed. |
| Calculated battery life | up to 4 years With Photo on demand toggle disabled.up to 3 years With Photo on demand toggle enabled. Learn More |
| Enclosure | |
|---|---|

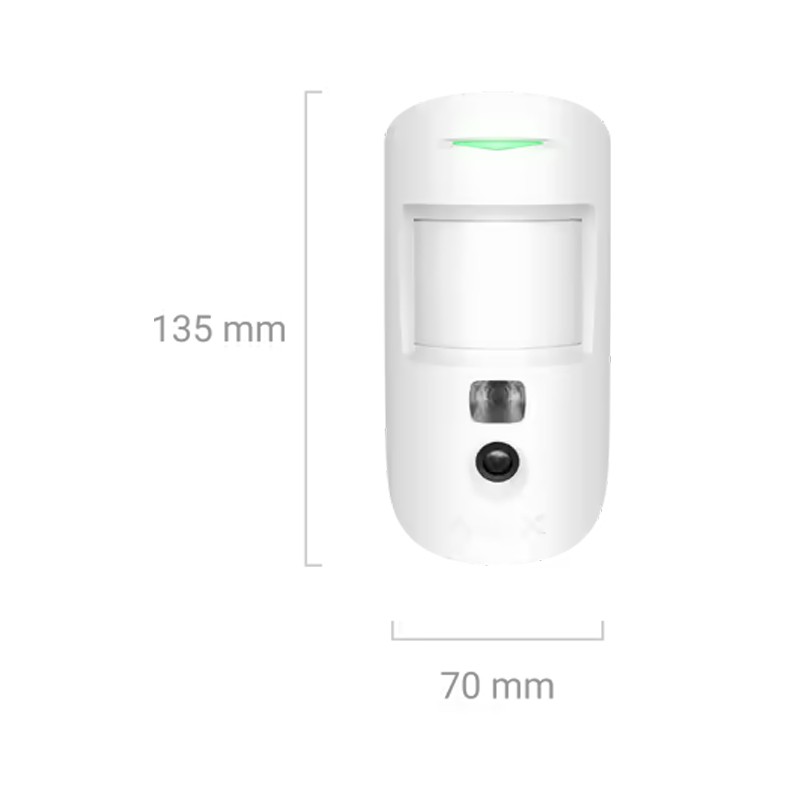

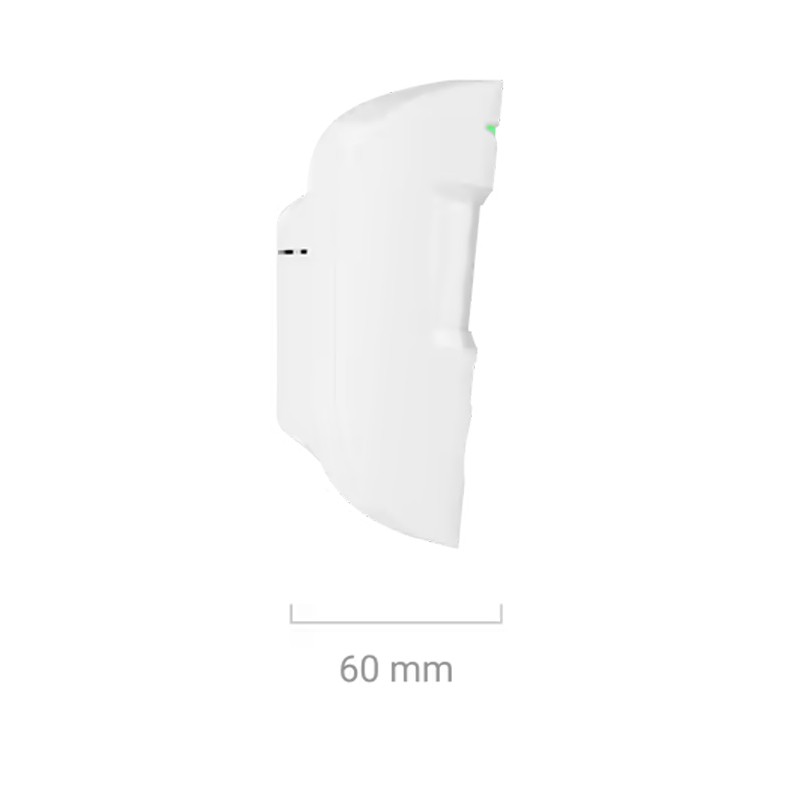

| Dimensions | 135 × 70 × 60 mm |
| Weight | 170 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50 |
| Complete set | |
|---|---|
| Complete set |
MotionCam (PhOD) Jeweller SmartBracket mounting panel Installation kit 2 × CR123A battery (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
