Motion Protect Curtain
Home Automation
Wireless PIR curtain motion detector
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless PIR curtain motion detector
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Detection | |
|---|---|
| Sensitive element |
2 × PIR sensor |
| Motion detection distance | up to 6–15 m
When installed at a height of 2.4 m, and the Correlation Signal Processing feature is disabled. It also depends on the sensitivity level adjusted in the device settings. up to 6–8 mWhen installed at a height of 2.4 m, and the Correlation Signal Processing feature is enabled. It also depends on the sensitivity level adjusted in the device settings. Learn more |
| Motion detection angles | horizontal — 6° vertical — 90° |
| Motion detection speed | from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels
Adjusted by a PRO or user with admin rights in Ajax apps. |
| Pet immunity | Install the detector upside down to prevent it reacting to domestic animals. |
| Temperature compensation | Effective motion detection at temperatures from −10°C to +40°C. Learn more |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Communication loss detection | within 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | CR123A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 5 years Learn More |
| Detector’s operating voltage range | 2.1−3.3 V⎓ |
| Detector’s nominal operating voltage | 3 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 41 μA |
| Maximum detector’s current consumption at nominal voltage | 60.4 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End-of-life battery voltage | 2.1 V⎓
Device is switched off. |
| End-of-life battery capacity | 300 mAh |
| Manufacturer | Huiderui |
| Enclosure | |
|---|---|

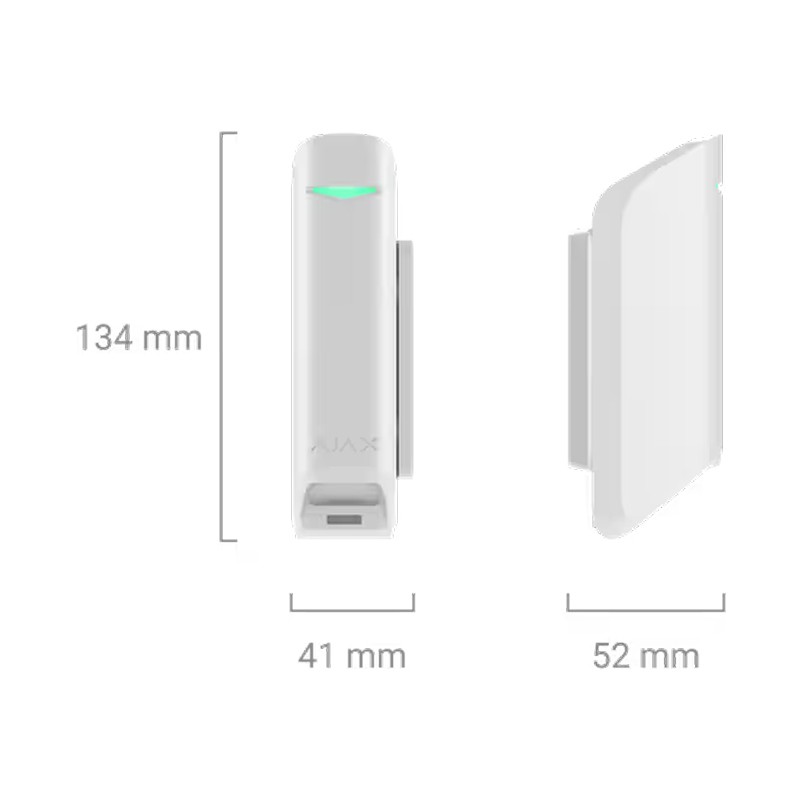

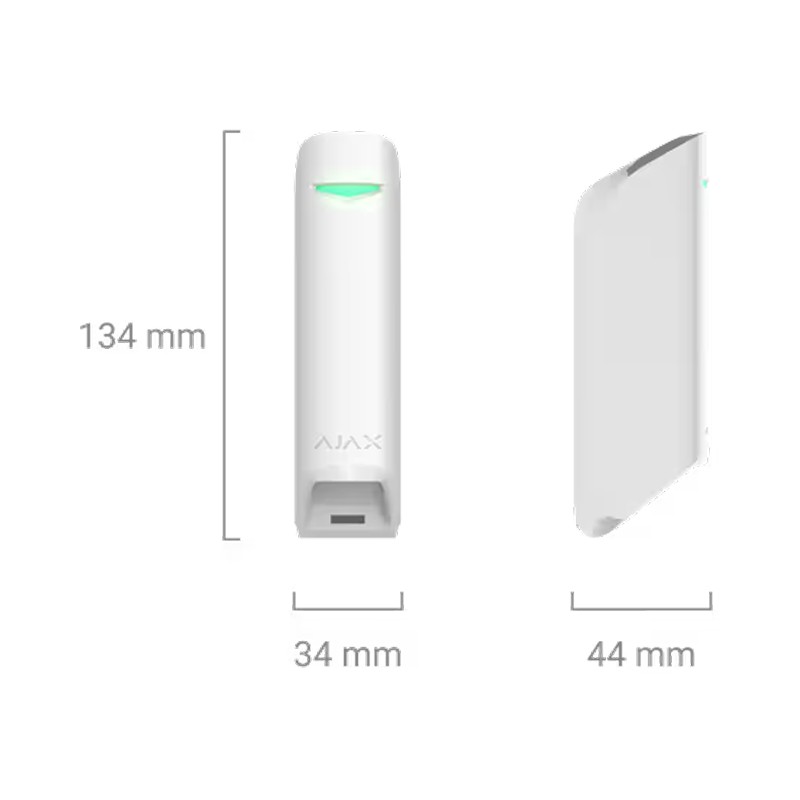

| Dimensions | 134 × 44 × 34 mm with bracket 134 × 52 × 41 mm |
| Weight | 118 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP54 |
| Complete set | |
|---|---|
| Complete set |
MotionProtect Curtain Jeweller SmartBracket mounting panel Bracket Installation kit CR123A battery (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
