Motion Protect Outdoor
Home Automation
Wireless PIR motion detector for outdoor and indoor use
Principle of operation
Detects movement using two PIR sensors that register the temperature difference between a person and the background.
Features
Features adjustable detection range and sensitivity settings, allowing precise tuning for different outdoor areas.
Installation and set up
Ready to use out of the box. The battery is pre-installed, and the detector is mounted in minutes using the SmartBracket mount.
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Radio frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Detection | |
|---|---|
| Sensitive element |
2 × PIR sensor |

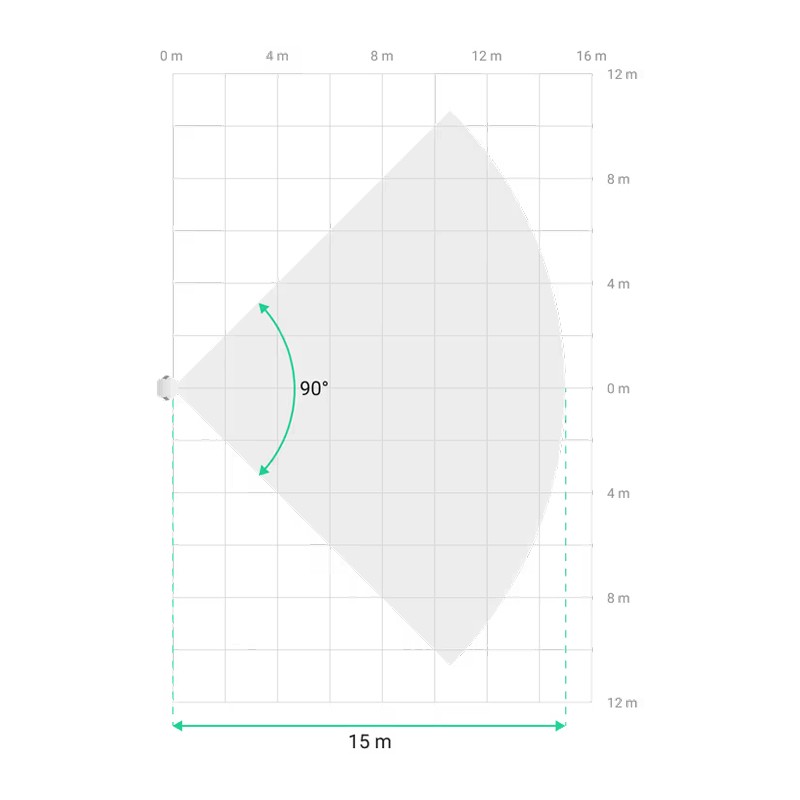

| Motion detection distance | up to 3–15 m
When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure. |
| Motion detection angles | horizontal — 90° vertical — N/A |
| Motion detection speed | from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to the intended path of entry into the facility. |
| Sensitivity | 3 levels
Adjusted by PRO or user with admin rights in the Ajax app. |
| Pet immunity |
weight: not relevant height: up to 80 cm Learn More |
| False alarm prevention | LISA SmartDetect Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from −25 °C to +60 °C |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. Learn more |
| Protection against spoofing | device authentication |
| Anti-masking system | detects attempts to block the detector view Learn More |
| Communication loss detection | after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Main Power supply | |
|---|---|
| Battery | 2 × CR123A
Pre-installed. |
| Type | type C |
| Calculated battery life | up to 5 years Learn More |
| Detector’s operating voltage range | 2.1−3.3 V⎓ |
| Detector’s nominal operating voltage | 3 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 79 μA |
| Maximum detector’s current consumption at nominal voltage | 58.8 mA |
| Full battery capacity | 3,200 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End-of-life battery voltage | 2.1 V⎓ Device is switched off. |
| End-of-life battery capacity | 480 mAh |
| Manufacturer | Huiderui |
| Optional power supply | |
|---|---|
| External supply’s operating voltage | 5−28 V⎓, from 200 mA
The batteries serve as a backup when external power supply is connected. |
| Enclosure | |
|---|---|

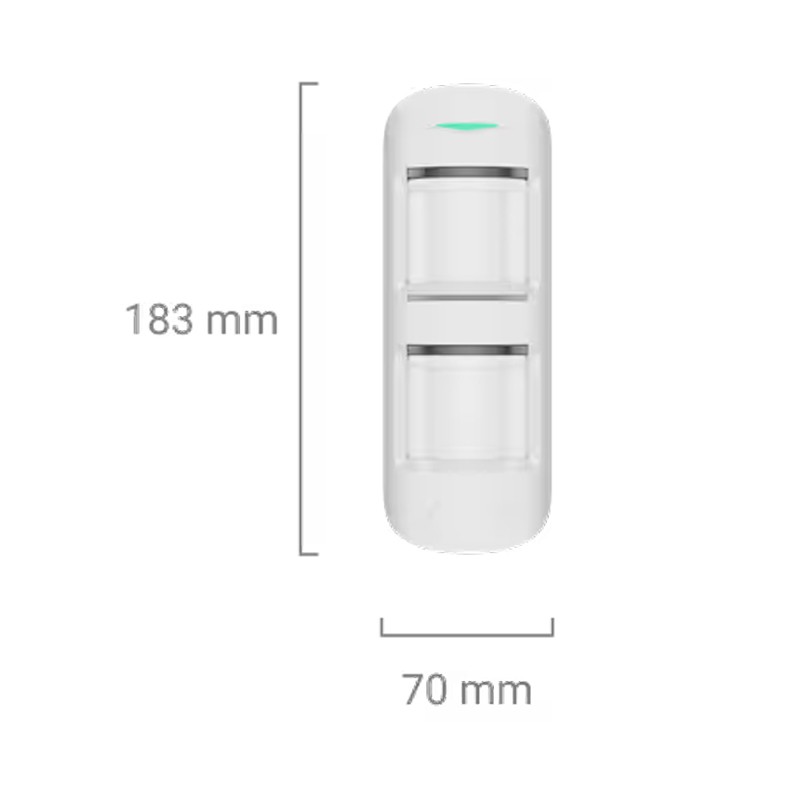

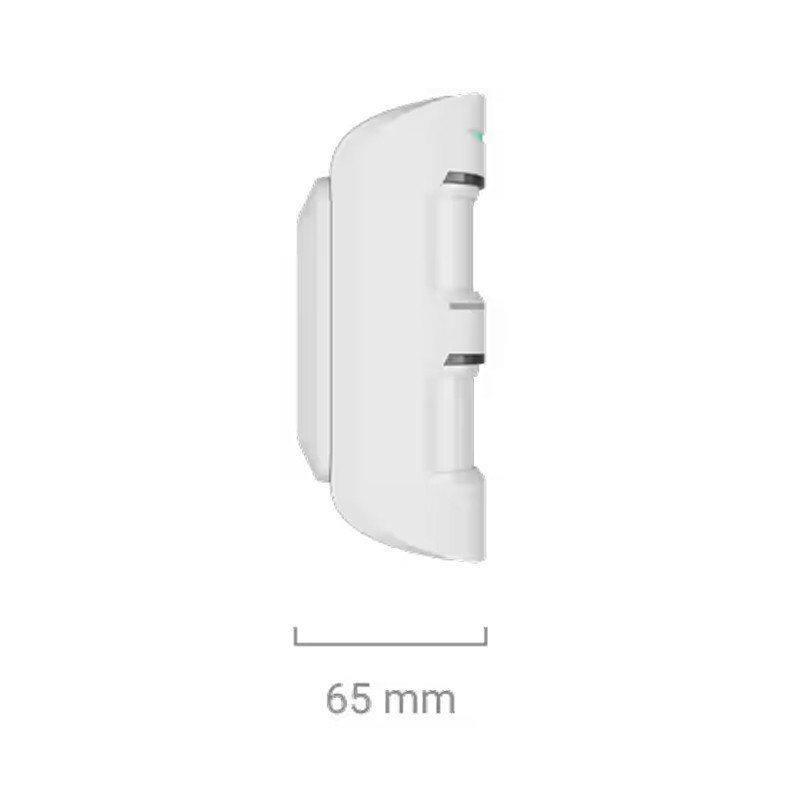

| Dimensions | 183 × 70 × 65 mm |
| Weight | 322 g |
| Operating temperature range | from −25°C to +60°C |
| Operating humidity | up to 95% |
| Protection class | IP55 |
| Complete set | |
|---|---|
| Complete set |
MotionProtect Outdoor Jeweller SmartBracket mounting panel Installation kit 2 × CR123A battery (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
