Network video recorder for 16 channels
| Video stream | |
|---|---|
| NVR models | 16-channel
With up to 4K resolution (25/30 FPS). |
| IP cameras |
|
| Storage | hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size)
HDD not included. The hard drive with power consumption of up to 7 W can be connected. Learn more |
| Decoding formats | H.265 H.264 |
| Bandwidth | up to 100 Mbps |
| Communication channel | |
|---|---|
| Ethernet | up to 100 Mbps |
| Bluetooth | BLE frequency band: 2.400–2.4835 GHz
To set up an Ethernet connection. |
| Radio signal power | 2.5 mW (100 mW limit) |
| Key features | |
|---|---|
| Motion detection | NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms. |
| In-app video management system |
|
| Visual verification of Ajax alarms | NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps. |
| Support for ONVIF authorization | Profile S Profile T (partially) Ajax cameras and NVRs can be integrated into third-party video management systems (VMS). Learn more |
| Privacy | Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop. |
| Power supply | |
|---|---|
| Main | 110–240 V~, 50/60 Hz, 0.6 A
Up to 24 W of mains power consumption. |
| Backup | CR2032 battery, 3 V
Only to power the system clock. |
| Sabotage protection | |
|---|---|
| Tamper alarm | Notifications about attempts to detach the device from the surface or remove it from the mounting panel. Learn More |
| Enclosure | |
|---|---|

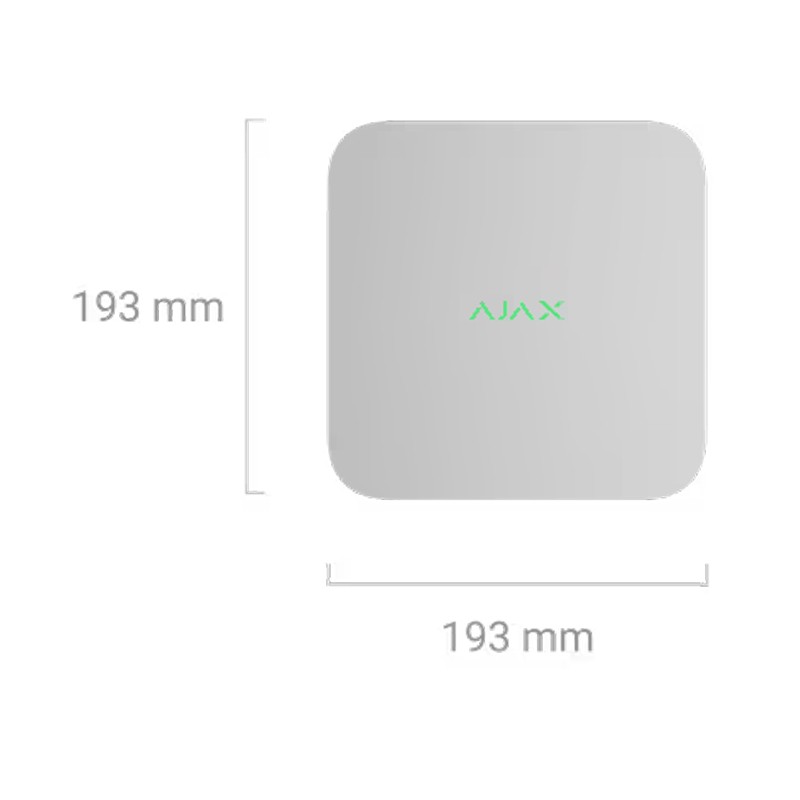

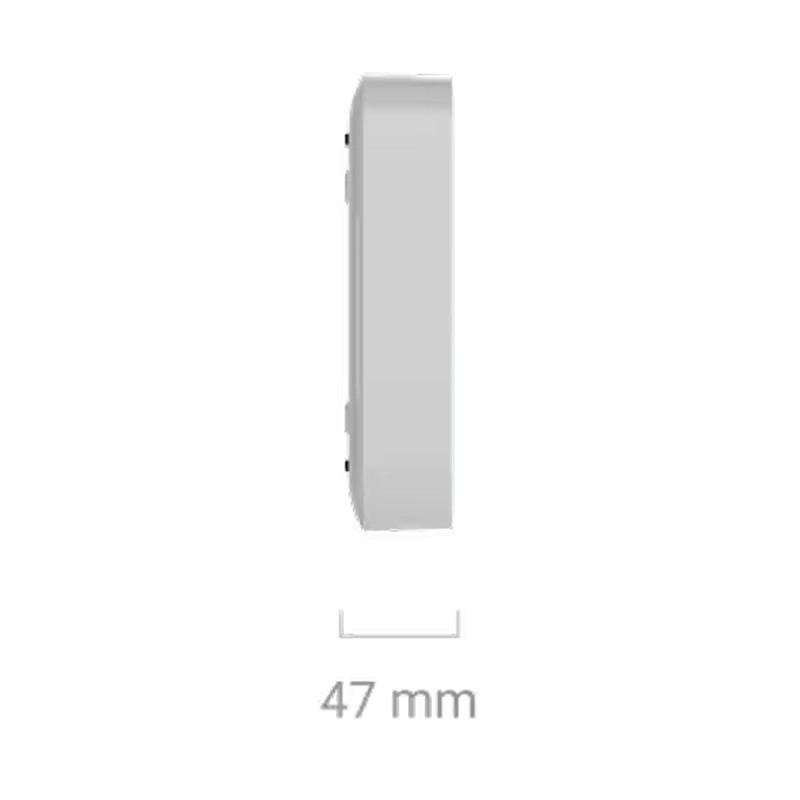

| Dimensions | 193 × 193 × 47 mm |
| Weight | 615 g
Without a hard drive. |
| Operating temperature range | from 0 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | |
|---|---|
| Complete set |
NVR SmartBracket mounting panel Power cable Ethernet cable Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
