NVR (8-ch)
Home Automation
NVR is a network video recorder for home and office video surveillance. You can connect Ajax video devices and third-party IP cameras to the device.
Bluetooth
Ethernet
Instant Notification
Qr
Synchronization
Network video recorder for 8 channels
The user can view archived and live videos in Ajax apps. NVR records the received data with corresponding settings and a hard disk drive or solid-state drive (not included). If the storage device is not installed, the video recorder is used only for integrating third-party IP cameras into the Ajax system. NVR provides users with video alarm verification.
NVR requires Internet access to connect to the Ajax Cloud service. The video recorder is connected to the network via Ethernet using the corresponding connector.
| Video stream | |
|---|---|
| NVR models | 8-channel
With up to 4K resolution (25/30 FPS). |
| IP cameras |
|
| Storage | hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size)
HDD not included. The hard drive with power consumption of up to 7 W can be connected. Learn more |
| Decoding formats | H.265 H.264 |
| Bandwidth | up to 100 Mbps |
| Communication channel | |
|---|---|
| Ethernet | up to 100 Mbps |
| Bluetooth | BLE frequency band: 2.400–2.4835 GHz
To set up an Ethernet connection. |
| Radio signal power | 2.5 mW (100 mW limit) |
| Key features | |
|---|---|
| Motion detection | NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms. |
| In-app video management system |
|
| Visual verification of Ajax alarms | NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps. |
| Support for ONVIF authorization | Profile S Profile T (partially) Ajax cameras and NVRs can be integrated into third-party video management systems (VMS). Learn more |
| Privacy | Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop. |
| Power supply | |
|---|---|
| Main | 110–240 V~, 50/60 Hz, 0.6 A
Up to 24 W of mains power consumption. |
| Backup | CR2032 battery, 3 V
Only to power the system clock. |
| Sabotage protection | |
|---|---|
| Tamper alarm | Notifications about attempts to detach the device from the surface or remove it from the mounting panel. Learn More |
| Enclosure | |
|---|---|

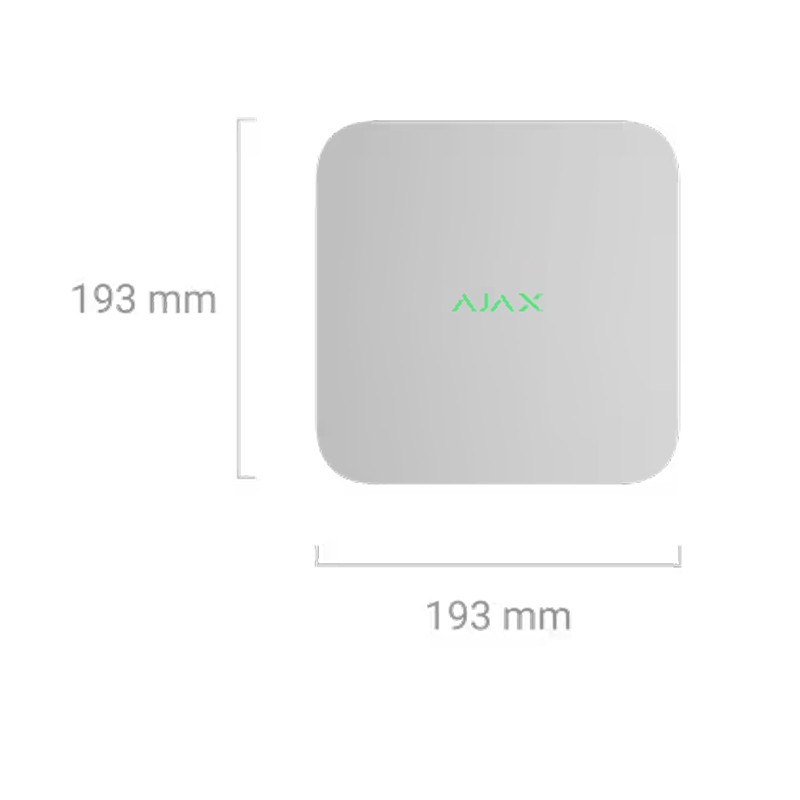

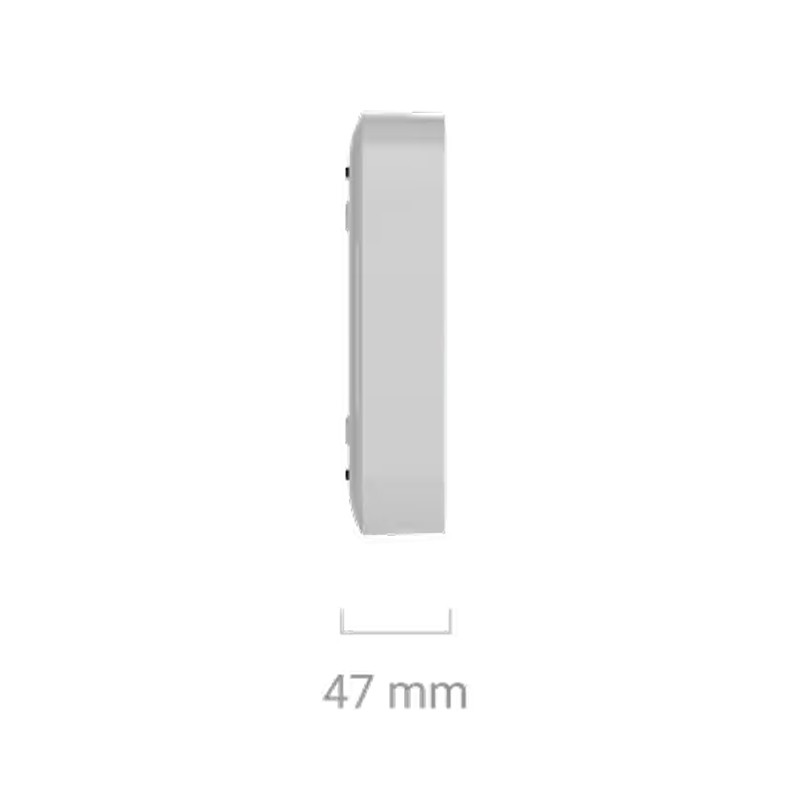

| Dimensions | 193 × 193 × 47 mm |
| Weight | 615 g
Without a hard drive. |
| Operating temperature range | from 0 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | |
|---|---|
| Complete set |
NVR SmartBracket mounting panel Power cable Ethernet cable Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
