Home Automation

Ajax

Wireless radio signal range extender

ReX is the radio signal range extender that boosts the range of all Ajax security system devices and manages their communication with the hub. The intelligent radio signal range extender enables users to place Ajax devices at a considerable distance from the hub for protecting multi-story offices, detached buildings, and even production plants.

ReX integrates the devices into an autonomous group within the system. The extender takes full control of the situation if the connection with the hub is interrupted for some reason. If one of its detectors sends an alarm signal, ReX may activate the siren to attract attention to the incident and scare off the burglar.

ReX runs on OS Malevich and is as capable as the hub. The intelligent extender manages its connected devices and makes critical decisions in a blink of an eye. The capabilities and the role of ReX in the security system continue to evolve with the free OS Malevich updates available for all the users.

The OS Malevich unique operation logic protects ReX against software and hardware attacks and makes it resistant to viruses or exploits. Moreover, all the ReX communications are encrypted, which makes any signal interception practically impossible. And even during a blackout, ReX will continue to stay on guard of your property using the in-built back-up battery.

To connect ReX to the system, scan the QR code, name it, and switch it on. Then, select the devices which should operate via the range extender from the list. Proceed by installing ReX in a safe spot. No disassembling required. Just use the SmartBracket mount.

Connection possibilities
Number of ReX Jeweller connected to the hub up to 5
Depends on the hub model.
Number of devices connected to ReX Jeweller up to 199
Depends on the hub model
Communication
Jeweller communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Learn More
Frequency band 865.0–867.0 MHz
Maximum effective radiated power (ERP) up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation GFSK
Radio communication range up to 1,800 m

Between the range extender and a hub in an open space.

Calculate radio communication range at the facility
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping

To prevent radio interference and jamming.

Learn More
Delivery time
Alarm delivery time to the hub 0.3 s
Sabotage protection
Tamper alarm

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Learn More
Protection against spoofing

device authentication

Communication loss detection after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Learn more
Power supply
Main

110–240 V, 50/60 Hz

Up to 6 W of mains power consumption.

Backup built-in rechargeable battery Li-ion 2 Аh
  • Up to 24 hours of backup battery life when Ethernet is disabled.
Calculated battery life:
  • Up to 35 hours of backup battery life.
  • Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity.
* From the backup battery after the loss of the main power supply.

The range extender manufactured after October 7, 2022, has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually.

Learn more
Type type A
Quiescent device’s current consumption at nominal voltage 11.4 mA
Maximum device’s current consumption at nominal voltage 14 mA
Low battery voltage 3.7 V⎓
Low battery recovery voltage 4.1 V⎓
End-of-life battery voltage 3.6 V⎓

Device is switched off.

Minimum energy level for a backup battery in the charged state 100%
Alternative 12 V⎓

Connected via an alternative power supply unit 12V PSU for Hub/Hub Plus/ReX which is sold separately.

Learn More
Enclosure

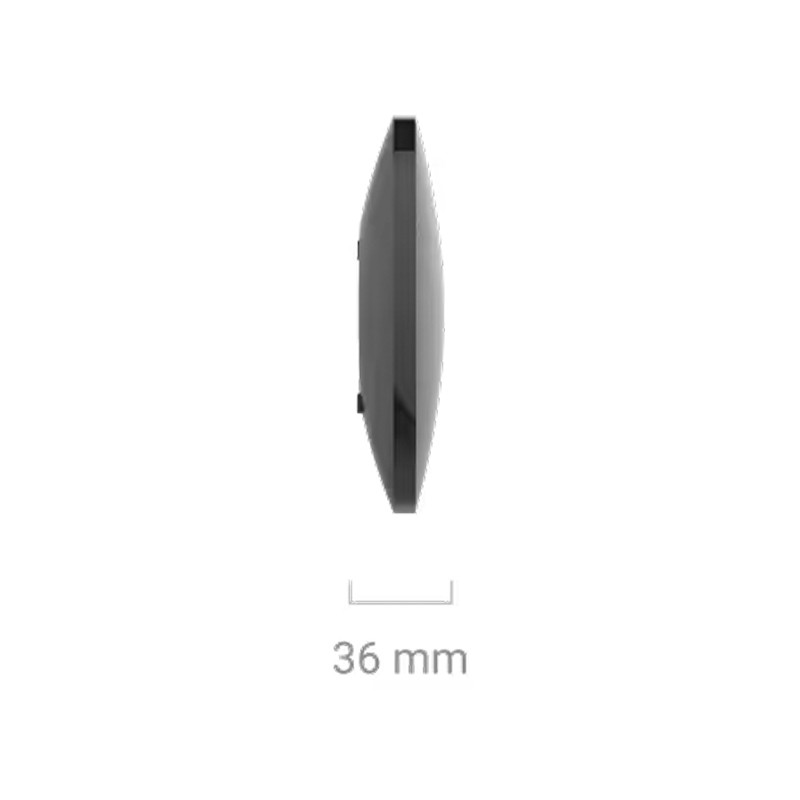

Dimensions 163 × 163 × 36 mm
Weight 330 g
Operating temperature range from −10 °C to +40 °C
Operating humidity up to 75%
Protection class IP20
Complete set
Complete set

ReX Jeweller

SmartBracket mounting panel

Power cable

Installation kit

Quick start guide

Additional information
Compliance with standards Learn more
User manual Learn more
Warranty 24 months
Learn more
