ReX 2
Home Automation
Wireless radio signal range extender. Connectable via Ethernet
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Wireless radio signal range extender. Connectable via Ethernet
Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices. By connecting all or part of the devices to ReX 2 Jeweller, you will ensure the security and automation of a business center, big estate, warehouse complex, or a large production facility.
ReX 2 Jeweller works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of animated pictures, helping to assess the situation at the facility. This reduces unnecessary patrol dispatches and saves the clients' nerves.
ReX 2 Jeweller works as an extra intelligent control panel: it connects devices into an autonomous group and takes over control at the right time. Thanks to automatic adjustment of signal power and frame synchronization, any number of system devices can be connected to ReX 2 Jeweller — the reliability of communication will not be affected by this. If, for some reason, radio communication with the hub is interrupted, ReX 2 Jeweller will continue to operate via Ethernet. If a connection via Ethernet is lost, ReX 2 Jeweller receives an alarm from a detector and activate a siren to draw attention to the incident and deter the burglar.
ReX 2 Jeweller is protected from attacks at the software and hardware levels. It runs on the OS Malevich operating system, which is immune to viruses. All data transmitted by the range extender is encrypted. Thanks to the built-in backup battery, a sudden blackout at a facility will not be a problem.
ReX 2 Jeweller connection and configuration process greatly saves the installer time. To add a range extender to a system, simply scan a QR-code with the Ajax app and assign it a name and a room. The device is also configured in real time in the app. If necessary, ReX 2 Jeweller can be disabled or reconfigured without site visits.
| Connection possibilities | |
|---|---|
| Number of ReX 2 Jeweller connected to the hub | 5 For all compatible hub models. |
| Number of devices connected to ReX 2 Jeweller | up to 199 Depends on the hub model |
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m Between the range extender and a hub in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Radio communication range | up to 1,700 m
Between the range extender and a hub in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. Learn more |
| Ethernet | 1 8P8C socket (up to 100 Mbps)
An alternative or main communication channel to transmit events, alarms, and photos. |
| Delivery time | |
|---|---|
| Alarm delivery time to the hub | 0.3 s |
| Photo delivery time to the hub | 18 s
Via ReX 2 Jeweller using the Wings channel. Delivery time depends on the settings. 10 sVia ReX 2 Jeweller using the Ethernet channel. Delivery time depends on the settings. Learn more |
| Sabotage protection | |
|---|---|
| Tamper alarm |
Notifications on attempts to detach the device from the surface or remove it from the mounting panel. Learn More |
| Protection against spoofing |
device authentication |
| Communication loss detection | after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Main |
110–240 V, 50/60 Hz Up to 6 W of mains power consumption. |
| Backup | built-in rechargeable battery Li-ion 2 Аh
The range extender manufactured after October 7, 2022, has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually. Learn more |
| Type | type A |
| Quiescent device’s current consumption at nominal voltage | 14.5 mA |
| Maximum device’s current consumption at nominal voltage | 95.8 mA |
| Low battery voltage | 3.7 V⎓ |
| Low battery recovery voltage | 4.1 V⎓ |
| End-of-life battery voltage | 3.6 V⎓
Device is switched off. |
| Minimum energy level for a backup battery in the charged state | 100% |
| Alternative |
6 V⎓
Connected via an alternative power supply unit 6V PSU type A which is sold separately. 12 V⎓Connected via an alternative power supply unit 12V PSU for Hub/Hub Plus/ReX which is sold separately. Learn More |
| Enclosure | |
|---|---|

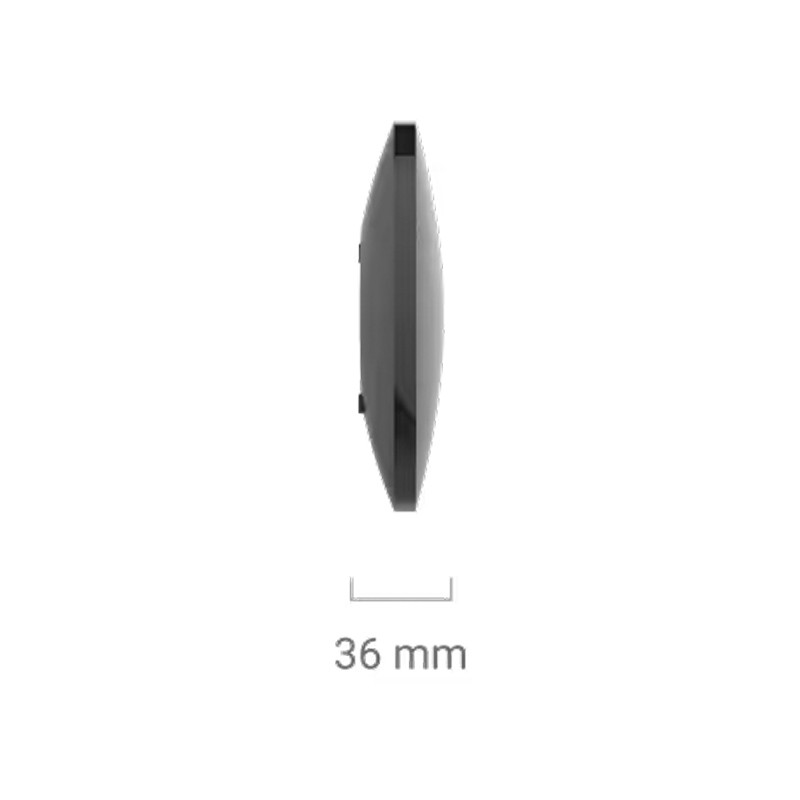

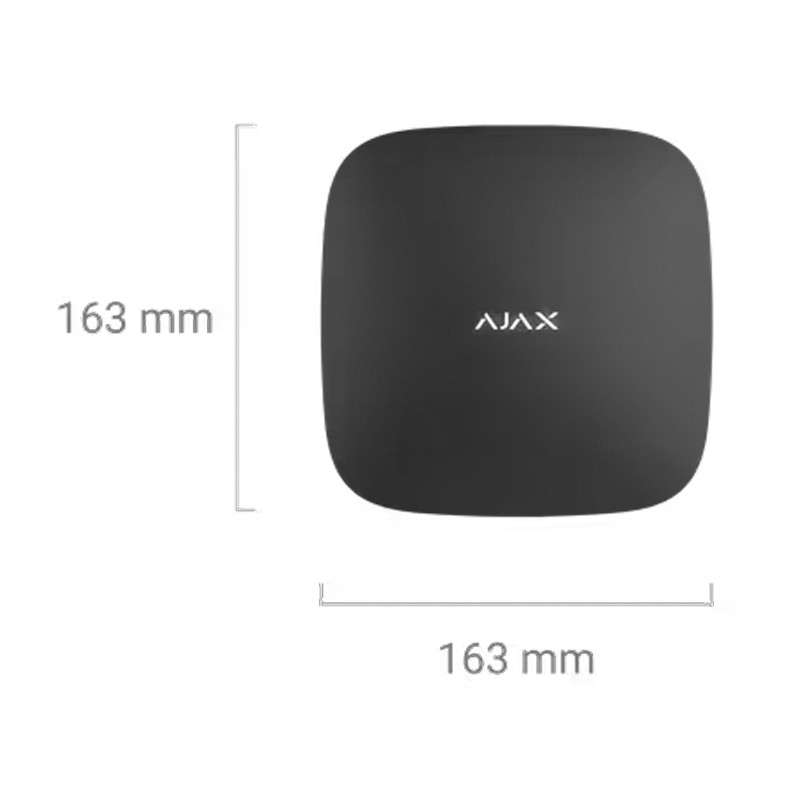

| Dimensions | 163 × 163 × 36 mm |
| Weight of the white device | 364 g |
| Weight of the black device | 336 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP30, IK06 |
| Complete set | |
|---|---|
| Complete set |
ReX 2 Jeweller SmartBracket mounting panel Power cable Screw terminal block Adapter (only for INCERT compliance) Ethernet cable Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
