Socket (type F)
Home Automation
Smart plug with power consumption monitoring
PAN India — B2B Distribution Network
PAN India — B2B Distribution Network
Home Automation
Smart plug with power consumption monitoring
| Power supply | |
|---|---|
| Power supply voltage | 110–230 V~, 50/60 Hz |
| Maximum continuous load current | 11 A |
| Output power | up to 2.5 kW (resistive load at 230 V~) up to 1.2 kW (resistive load at 110 V~) |
| Average consumption | up to 1 W |
| Current protection | more than 11 A (when Current protection is enabled) more than 13 A (when Current protection is disabled) Once the current exceeds the specified level, the plug turns off automatically. |
| Voltage protection for 230 V~ mains electricity | min — 184 V~ max — 253 V~ Once the voltage exceeds the specified levels, the plug turns off automatically. |
| Voltage protection for 110 V~ mains electricity | min — 88 V~ max — 121 V~ Once the voltage exceeds the specified levels, the plug turns off automatically. |
| Temperature protection | more than +85 °C
f protection is triggered, the plug turns off. |
| Electric shock protection class | Class I (with grounding terminal) |
| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,000 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Radio Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Key features | |
|---|---|
| Control via smartphone | The user can set up the plug configurations and receive a detailed event log in the Ajax app. |
| Automation scenarios |
Learn more 1 Scenarios by humidity and CO2 concentrations are available when LifeQuality Jeweller is added to the system. |
| Energy consumption monitor | Control of the current, voltage, power, and electric energy consumed by connected appliances. |
| Adjustable pulse duration2 | from 1 to 255 s |

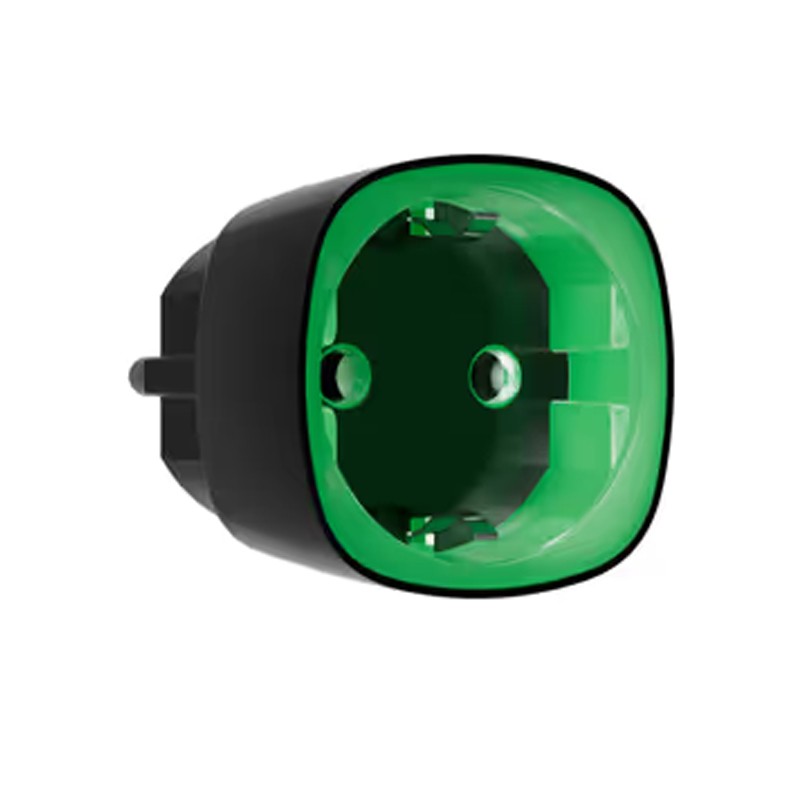

| LED indication | Informs about the plug’s state and the power consumption of connected appliances with different colors. The brightness of the LED frame can be adjusted or turned off in the Ajax app. |
| Operation modes |
2 Available on devices with firmware version 5.54.1.0 or higher manufactured after March 4, 2020. |
| Contact state |
|
| Childproofing | The plug is equipped with special internal shutters. They protect children by preventing them from inserting items like screwdrivers, scissors, or hairpins into the plug and also guard against dust and splashes. |
| Sabotage protection | |
|---|---|
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s The detection time depends on the Jeweller or Jeweller/Fibra settings. Learn More |
| Enclosure | |
|---|---|

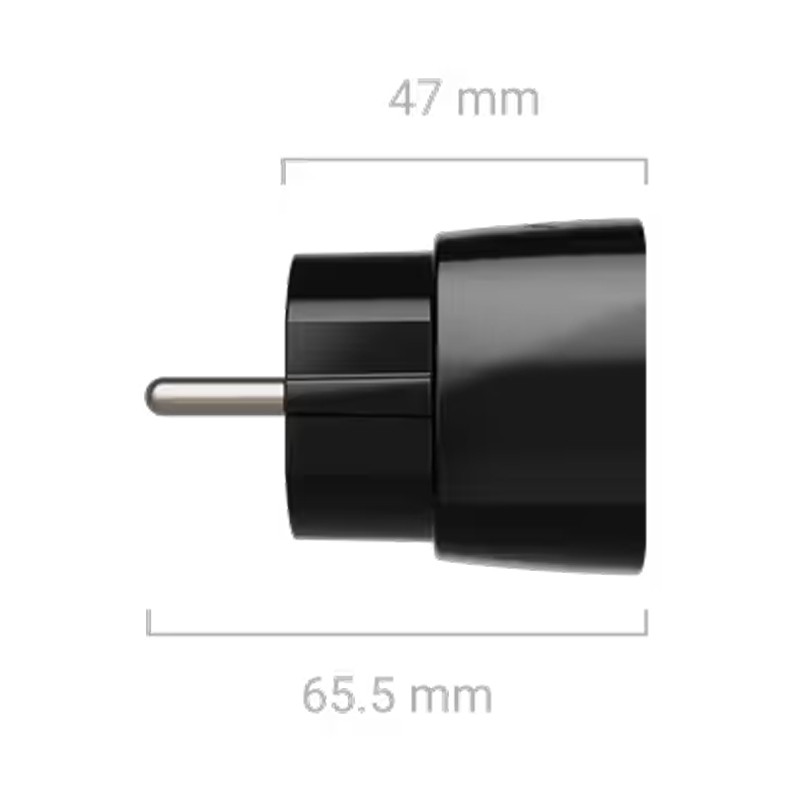

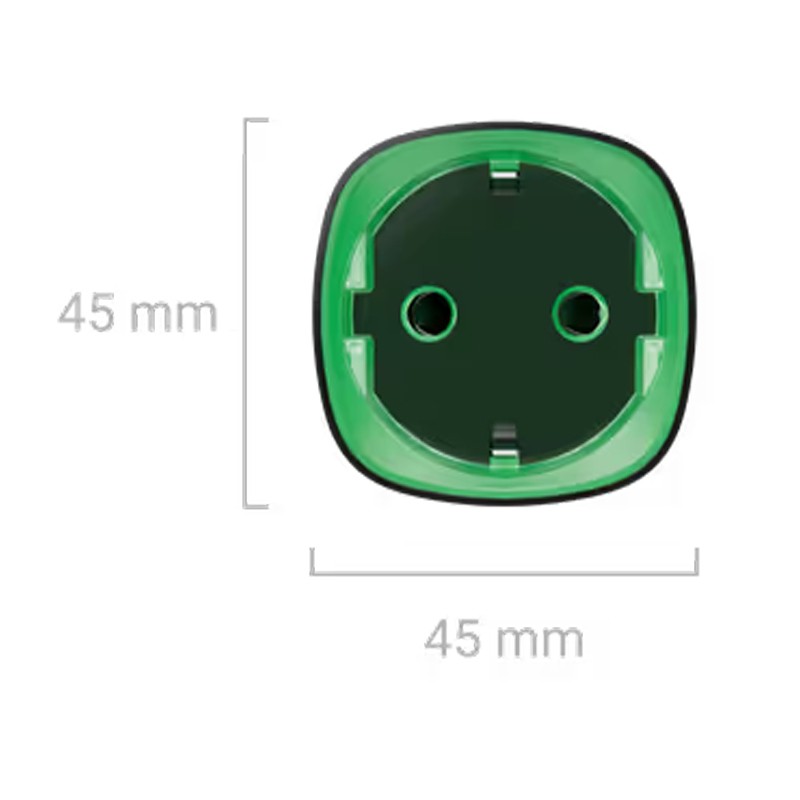

| Dimensions | 45 × 45 × 65.5 mm |
| Weight | 58 g |
| Operating temperature range | from 0°С to +40°С |
| Operating humidity | up to 75% with no condensation |
| Protection class | IP20 |
| Complete set | |
|---|---|
| Complete set |
Socket (type F) Jeweller Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
