Home Automation

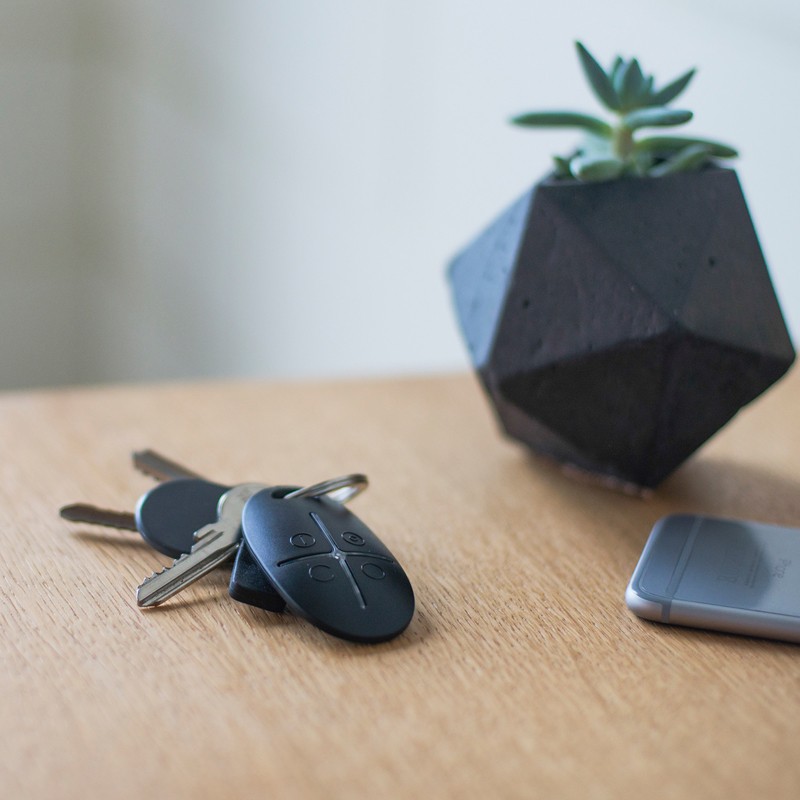

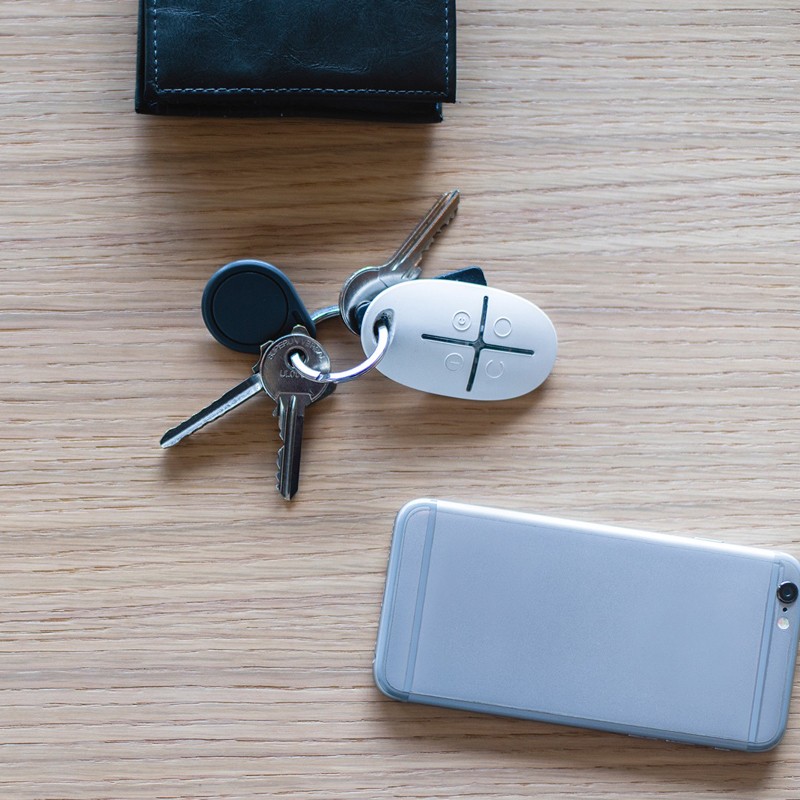

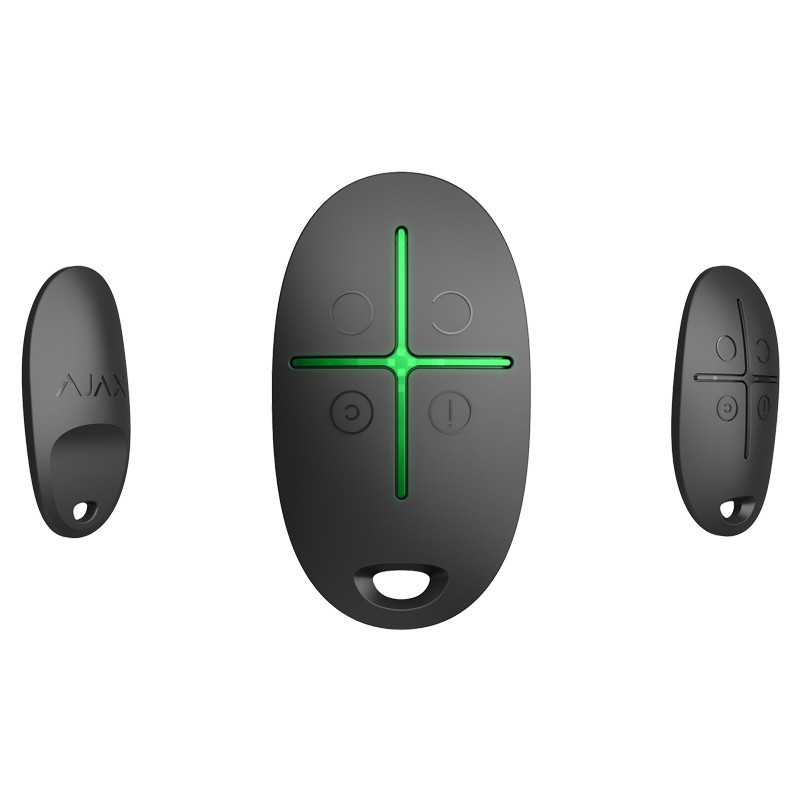

A key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble.
| Communication | |
|---|---|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,300 m
Between the device and a hub (or a range extender) in an open space. Calculate the radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn more |
| Key features | |
|---|---|
| Number of buttons |
4
|
| Group management | A user can select a security group that the key fob manages. |
| Assigning to a user | When a key fob is assigned to a user, its events are sent to Ajax apps under the user’s name. The key fob has the same security mode management rights as the user. |
| Accidental press protection |
long or double press Available on key fobs with firmware version 5.54.1.0 or higher manufactured from March 19, 2020. |
| Power supply | |
|---|---|
| Battery | 1 × CR2032 (pre-installed), Type C |
| Battery capacity | 225 mAh |
| Nominal voltage | 3 V⎓ |
| Quiescent current | 0.7 μA |
| Maximum current | 26 mA |
| Calculated battery life | up to 5 years |
| Manufacturer | Renata, Panasonic |
| Enclosure | |
|---|---|
| Dimensions | 65 × 37 × 10 mm |
| Weight (white) | 13 g |
| Weight (black) | 12.7 g |
| Operating temperature | from −25 °C to +50 °C |
| Operating humidity | up to 95% |
| Protection class | IP50, IK04 |
| Colors | Black, White |
| Complete set | |
|---|---|
| Package contents |
Ajax SpaceControl Jeweller CR2032 battery (pre-installed) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty |
24 months Learn more |
