Tag
Home Automation
Contactless key fob to control security modes
Purpose and operation
Ajax Tag is a contactless access device used to control the Ajax security system. It allows users to arm and disarm the system by holding the Tag near a compatible keypad.
Features
Uses encrypted contactless technology for secure and fast authentication.
Installation and set up
Ready to use out of the box. The Tag does not require a battery or setup and is ready for immediate use.
| Devices compatibility | |
|---|---|
| Devices compatibility |
KeyPad Plus Jeweller Superior KeyPad Plus Jeweller KeyPad TouchScreen Jeweller Superior KeyPad TouchScreen Fibra |
| Contactless authentication | |
|---|---|
| Communication technology | DESFire® |
| Operating standard | ISO 14443-А (13.56 MHz) |
| Encryption | Triple DES encryption and AES hardware encryption with 128-bit key. |
| Key features | |
|---|---|
| Possibility to assign the user |
Set the name and access permissions for each key fob in Ajax apps. |
| Control security modes | Manage security modes without a password, account, or access to an Ajax app. |
| Control via smartphone | In an Ajax app, the user can set the necessary key fob settings and view a detailed event log. |
| Simultaneous work with several hubs | One Tag can be paired with up to 13 Ajax hubs simultaneously. |
| Sabotage protection | |
|---|---|
| Protection against spoofing | Signal interception protection |
| Power supply | |
|---|---|
| Power supply | Not required |
| Enclosure | |
|---|---|

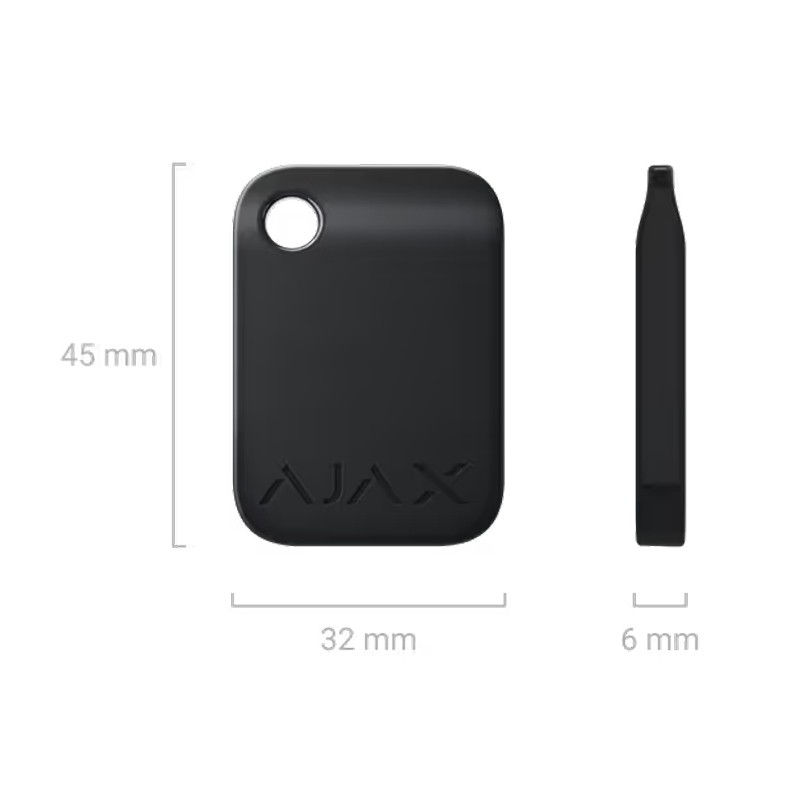

| Dimensions | 45 × 32 × 6 mm |
| Weight | 7 g |
| Operating temperature range | from –10 °C to +40 °C |
| Operating humidity | up to 75% |
| Complete set | |
|---|---|
| Complete set |
3, 10, or 100 Tag key fobs (depending on the package) Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
