| Communication | |
|---|---|
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
Learn More |
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,600 m Between the device and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn More |
| Wired devices connection | |
|---|---|
| Supported configurations | Transmitter Jeweller has two pairs of terminal inputs for tamper and alarm sensor connection. Alarm and tamper inputs can be used to connect a wired device using the AATT (Alarm Alarm Tamper Tamper) scheme. |
| Terminals for wired device connection |
|
| Third-party device contact states | NO, NC |
| Tamper contact states | NO, NC |
| Cable length | up to 130 m
When using 24 AWG twisted pair cable. |
| Operating modes | pulse, bistable |
| Sensor modes | Notify of alarms, Switch arming modes |
| Event types | 14 event types of wired devices
Adjusted by a PRO or a user with admin rights in the Ajax app. |
| Sabotage protection | |
|---|---|
| Protection against spoofing | integration module authentication |
| Accelerometer | alert when the integration module is moved |
| Tamper alarm terminals | Terminals for connecting to a wired device tamper (if applicable). |
| Detection of communication loss with integration module | after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Power supply | |
|---|---|
| Battery | 3 × CR123A
Pre-installed. Battery life depends on the power consumption of a connected wired device. |
| Output to the connected wired device | 3.3 V⎓, up to 125 mA
One power supply line from Transmitter Jeweller. Learn More |
| Board | |
|---|---|

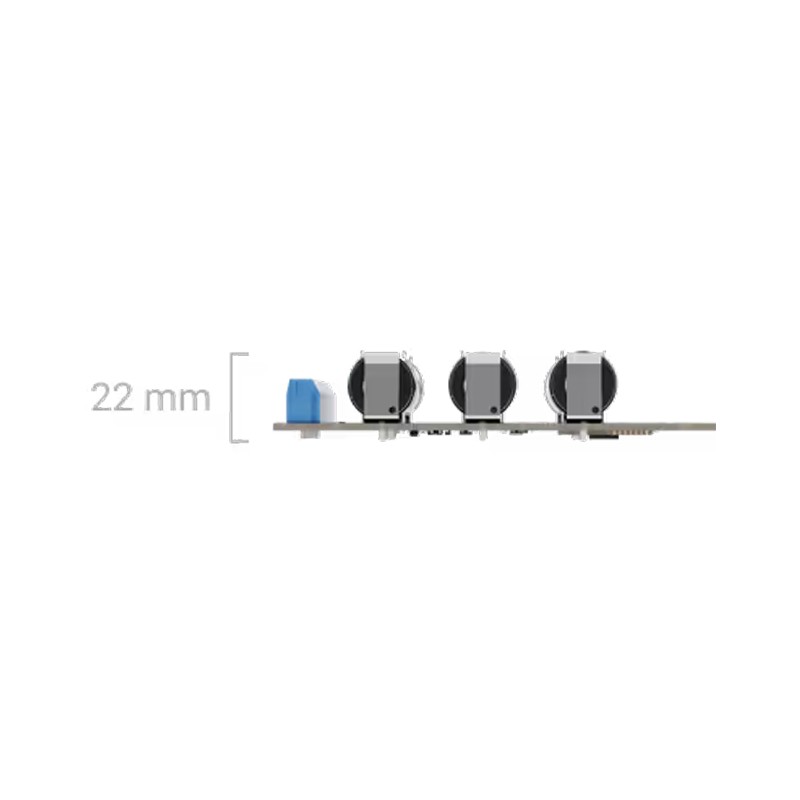

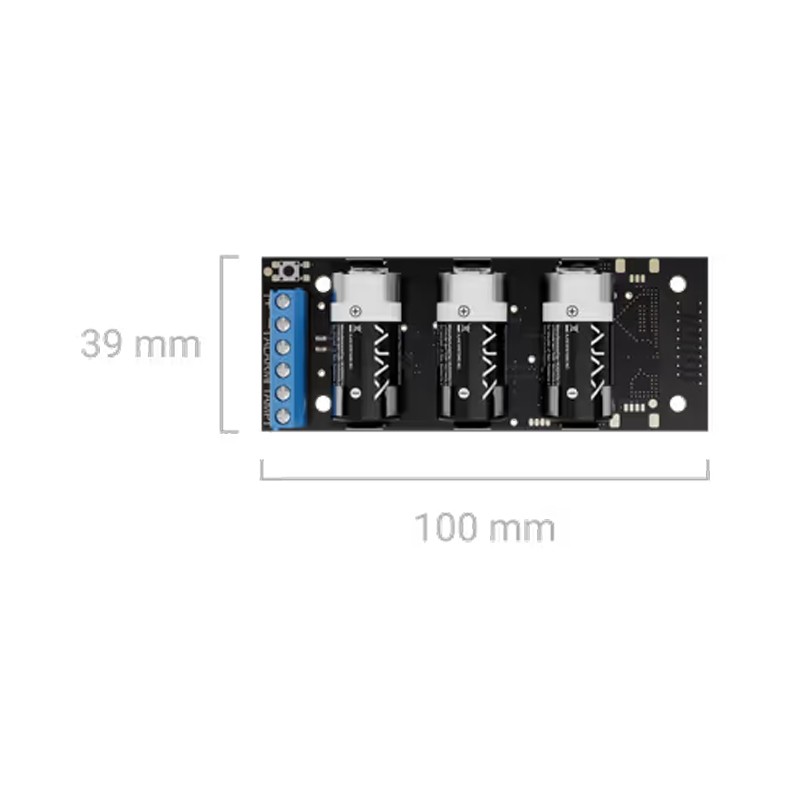

| Dimensions | 100 × 39 × 22 mm |
| Weight | 74 g |
| Operating temperature range | from −25 °C to +50 °C |
| Operating humidity | up to 75% |
| Electric shock protection | Class III |
| Complete set | |
|---|---|
| Complete set |
Transmitter Jeweller 3 × CR123A battery (pre-installed) Installation kit Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
