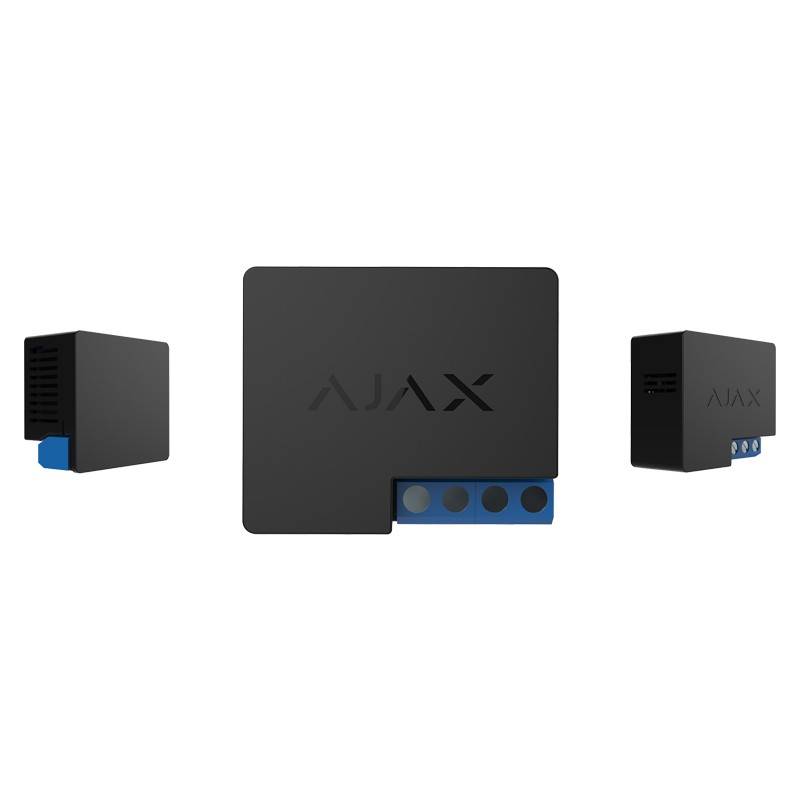

Wireless power relay to control 110/230 V~ power supply remotely
Principle of operation
The device controls the electric power supply by means of relay, which closes and opens the power supply network.
Features
Operates in 110 V and 220 V mains. The meter shows the power consumption in real time.
Installation and set up
It is installed into a recessed wall plate and connected to the internal power supply network.
| Power supply | |
|---|---|
| Power supply voltage | 110–230 V ± 10%, 50/60 Hz |
| Maximum continuous load current | 13 A |
| Output power |
up to 3.0 kW (resistive load at 230 V~) up to 1.5 kW (resistive load at 110 V~) |
| Average consumption | up to 1 W |
| Current protection |
more than 11 A (when Overcurrent protection is enabled) more than 13 A (when Overcurrent protection is disabled) Once the current exceeds the specified level, the device turns off automatically. |
| Voltage protection (230 V~) |
min: 184 V~ max: 253 V~ Once the voltage exceeds the specified levels, the device turns off automatically. |
| Voltage protection (110 V~) |
min: 92 V~ max: 132 V~ Once the voltage exceeds the specified levels, the device turns off automatically. |
| Temperature protection |
over +65 °C If protection is triggered, the device turns off. |
| Electric shock protection class | Class II |
| Communication | |
|---|---|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency band | 865.0–867.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,000 m Between the relay and a hub (or a range extender) in an open space. Calculate radio communication range at the facility |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. Learn more |
| Key features | |
|---|---|

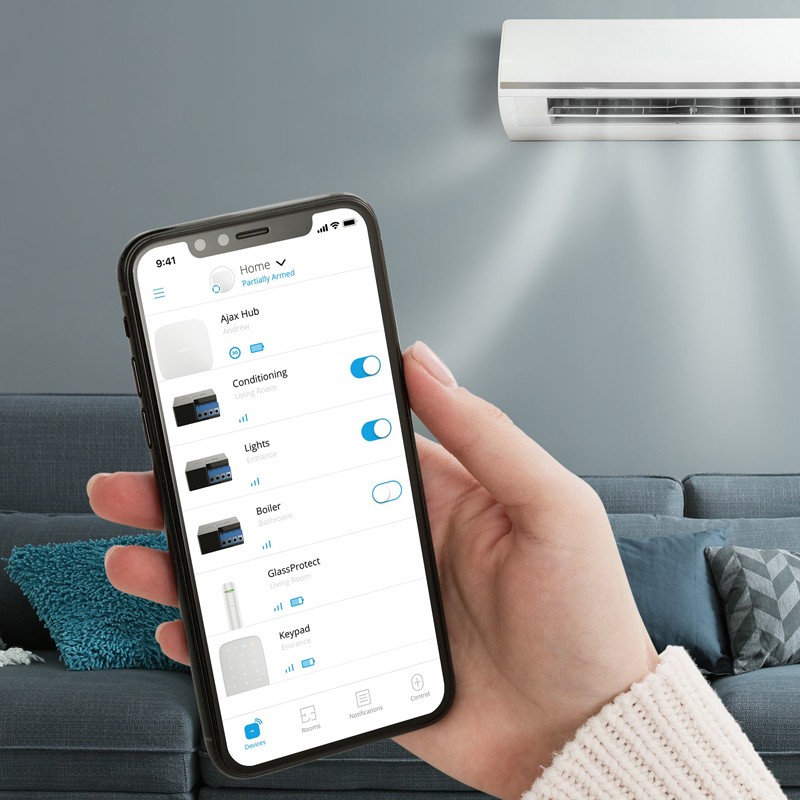

| Control | Control via smartphone in Ajax app |
| Automation scenarios |
Learn more |
| Energy consumption monitor | Control of current, voltage, power, and consumed electric energy. |
| Adjustable pulse duration | from 1 to 255 s |
| Operation modes |
pulse bistable Available on devices with firmware 5.54.1.0 or later manufactured after March 5, 2020. |
| Contact state |
normally open normally closed |
| Recommendations | |
|---|---|
| Installation |
A professional electrician should install the device. The device is designed for indoor use only. It is recommended to mount WallSwitch Jeweller on a DIN rail using DIN Holder (sold separately). Buy DIN Holder |
| Sabotage protection | |
|---|---|
| Protection against spoofing | Device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. Learn more |
| Enclosure | |
|---|---|
| Dimensions | 39 × 33 × 18 mm |
| Weight | 30 g |
| Operating temperature | from 0 °C to +64 °C |
| Operating humidity | up to 75% with no condensation |
| Protection class | IP20 |
| Colors | Black |
| Complete set | |
|---|---|
| Package contents |
WallSwitch Jeweller Wires — 2 pcs. Quick start guide |
| Additional information | |
|---|---|
| Compliance with standards | Learn more |
| User manual | Learn more |
| Warranty | 24 months Learn more |
