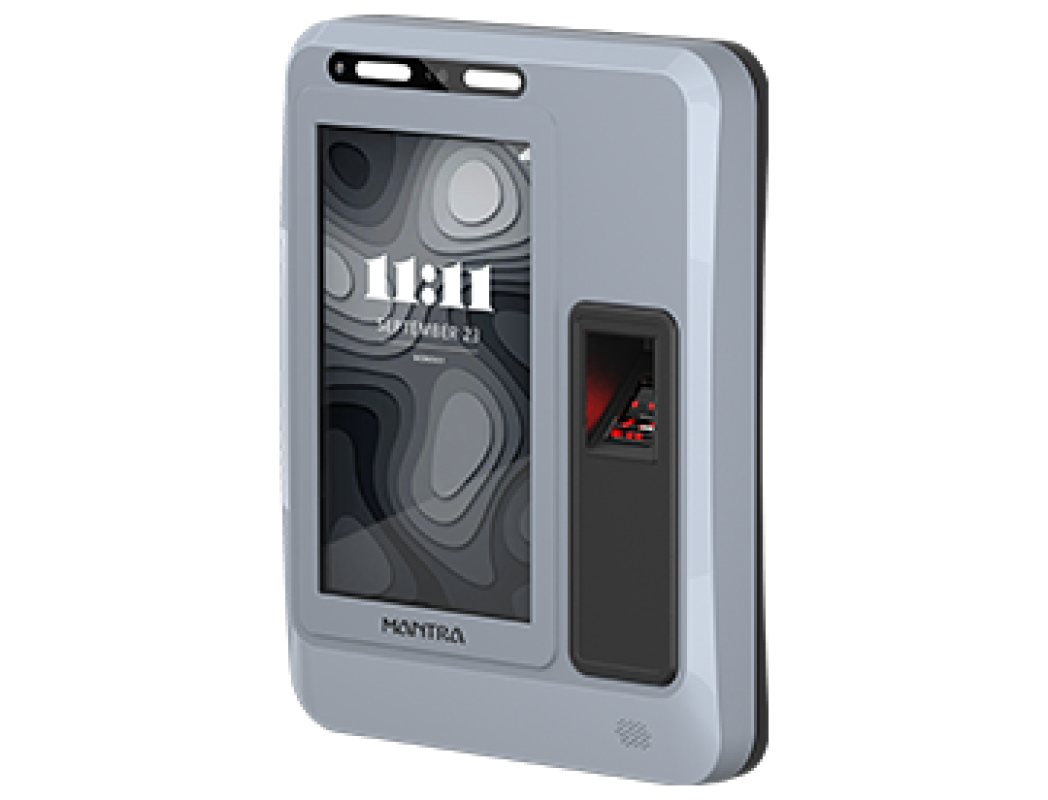

The MBAS40 features facial recognition, STQC-certified fingerprint sensor, and smart card support. With a 7" HD touchscreen and multiple connectivity options (4G, GPS, Wi-Fi), it delivers seamless operation in demanding environments. Built for both indoor and outdoor deployment, it ensures secure and fast authentication.
Multi-Layered Authentication
Defense & PSU Installations
Public Distribution Verification
Access Control with Face + Finger + Card
Smart City Projects
Hardware & System
CPU:
ARM Cortex A55 @2.0GHz Quad Core Processor
Memory:
4GB RAM + 32GB Flash
LCD:
7" TFT LCD with 1024×600 Resolution
Touch:
Scratch Resistant Multi-Point Capacitive Touch Screen with G+Toughen Glass
Audio:
High-Quality 1W Speaker for Announcements
Object Detection Sensor:
IR based Proximity sensor for device auto sleep & wakeup
Operating System:
GMS Certified Android 14
RTC:
Yes
Control Buttons:
1x Power On/Off, 1x Reset Key
Operating / Storage Temperature:
0 Deg to 50 Deg C
Operating Humidity:
10%–90% RH (Non-Condensing)
Dimensions:
238 × 185 × 37 mm
Weight:
Approx. 0.8 Kg
Certifications:
CE, RoHS, BIS, IP54
Fingerprint Sensor (Model: MFS110)
Fingerprint Type:
Scratch Free Optical FAP10 Sensor
Fingerprint Image:
276 × 336 Pixels (Platen Area: 14.0 mm × 17.0 mm)
Image Specs:
500DPI, 8 Bit Grayscale
Certifications:
CE, FCC, RoHS, STQC, L1 UIDAI, FBI PIV, EN/IEC 62368-1, IS13252 Part II
Facial Camera Sensor
Camera Resolution:
8 Mega Pixel
Camera Focus:
Auto Focus 10–150 cm
Camera Illumination:
White LED Auto ON-OFF based on ambient lighting
Camera Interface:
MIPI interface with OS control
Smart Card Reader (Optional)
Contactless Card (Optional):
ISO14443 Type A/B Cards, MIFARE Classic 1K/4K, MIFARE DESFire Light, MIFARE DESFire EV1/EV2 4K,
MIFARE Plus 2K, NTAG
Interfaces
2G GSM/GPRS/EDGE:
850/900/1800/1900
3G WCDMA:
B1/B2/B5/B8
4G FDD:
B1/B3/B5/B7/B8/B38/B40/B41
4G TDD:
All Band
Wi-Fi:
IEEE 802.11 a/b/g/n/ac
GPS:
16 Channel NMEA Compliant with Flex Antenna, AGPS Supported
SD Card:
MicroSD Card (Supports up to 256GB)
Bluetooth:
BT & BLE 5.0
Ethernet:
10/100 Mbps
SIM Socket:
2 × Micro SIM Socket
SAM Socket:
2 × SAM Card (As per ISO7816 standard)
DC Jack:
1 × DC Power Input
Micro USB:
1 × Micro USB Port for PC connection as debug port
USB 2.0:
1 × USB 2.0 Type-A Connector
Electrical
Power Adaptor:
Input AC: 90–265V, 50Hz; Output DC: 5V/3A
Battery Capacity:
Li-Ion 6000 mAh Rechargeable & Replaceable Battery
