MFS110
Aadhaar / Biometric Scanner

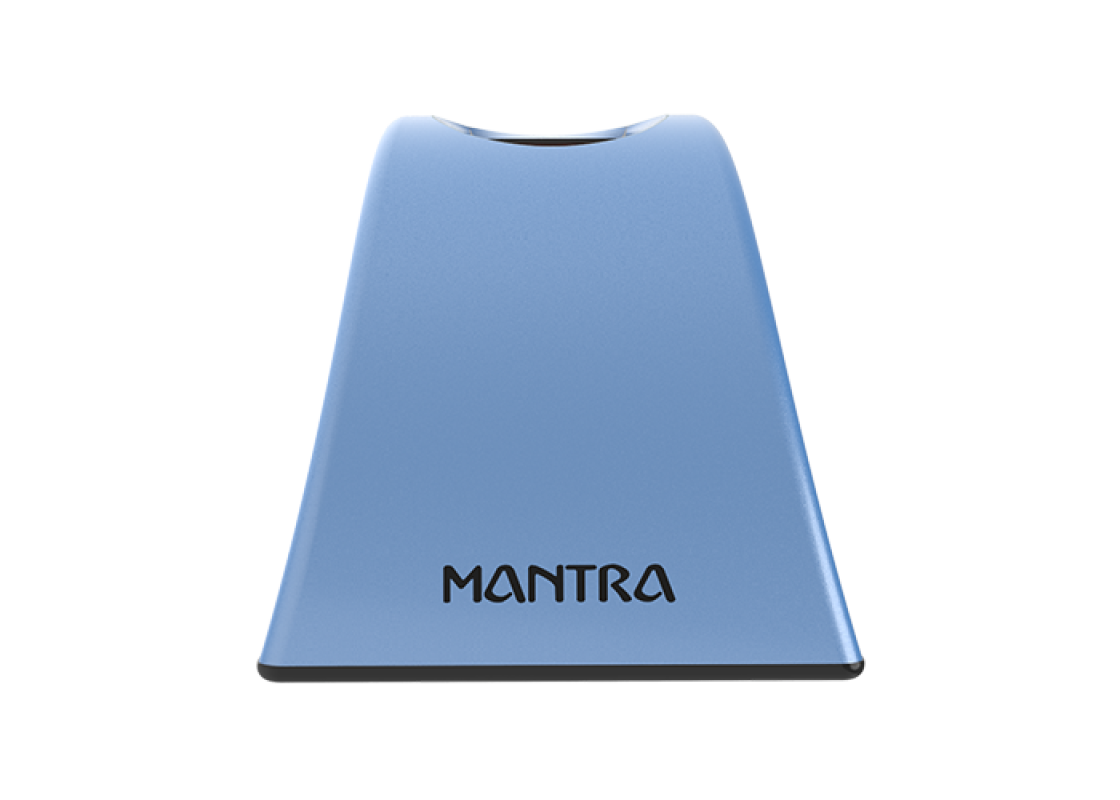

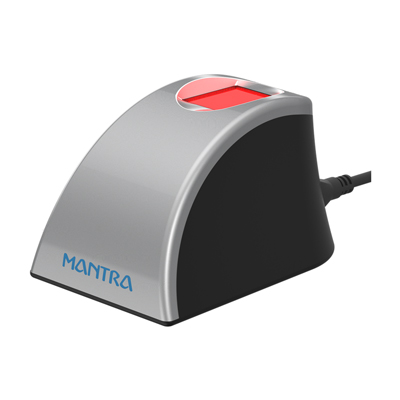

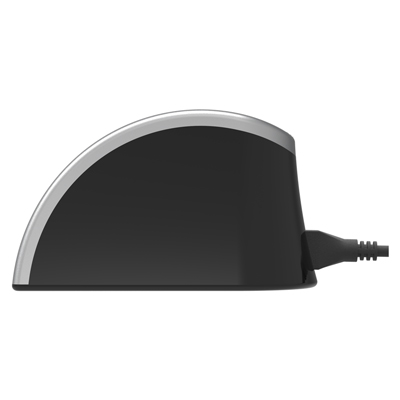

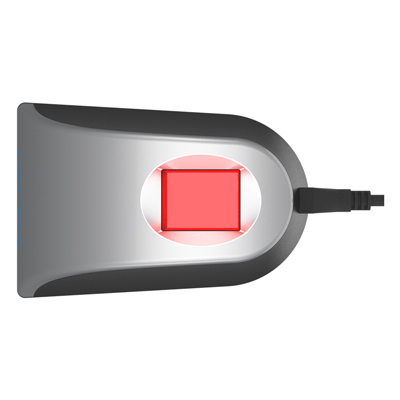

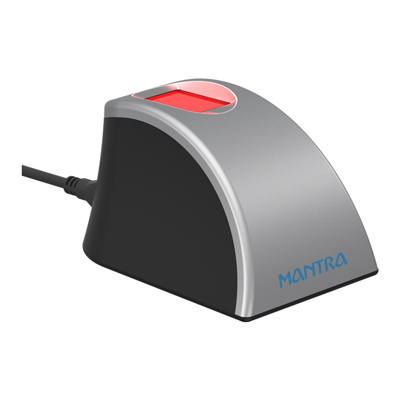

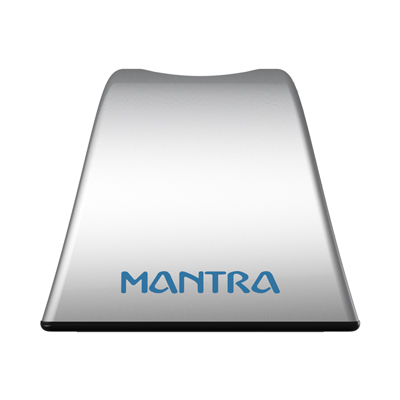

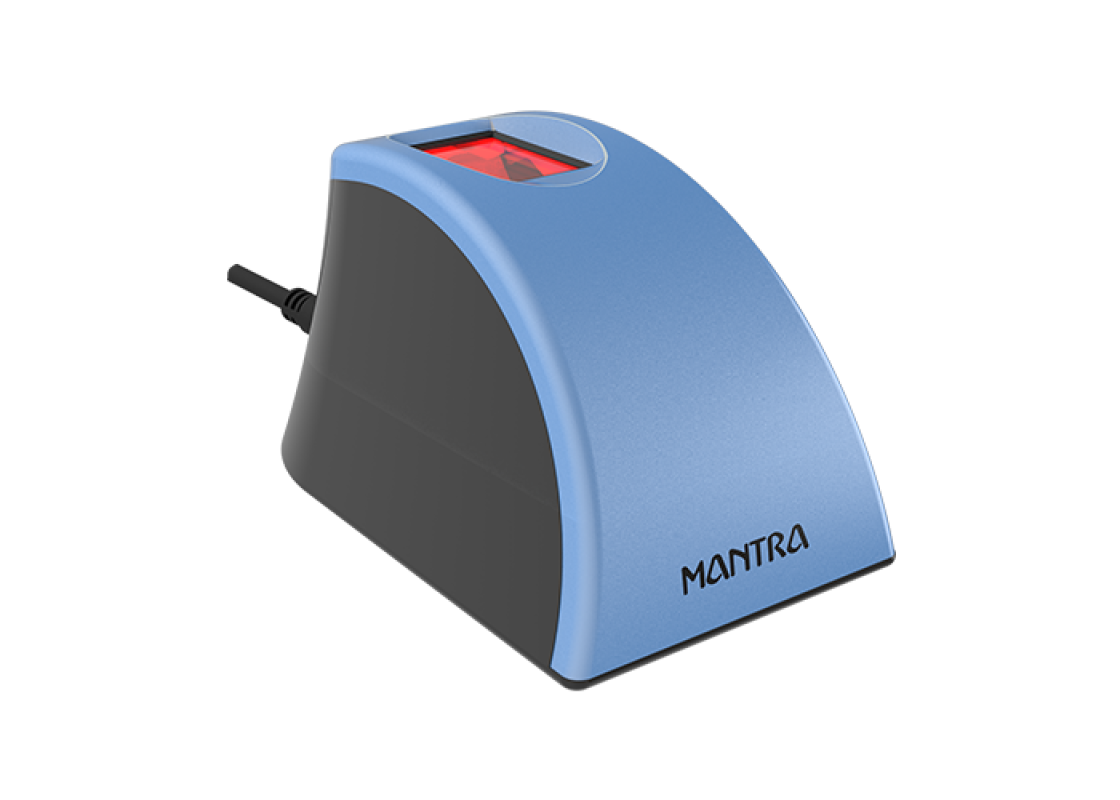

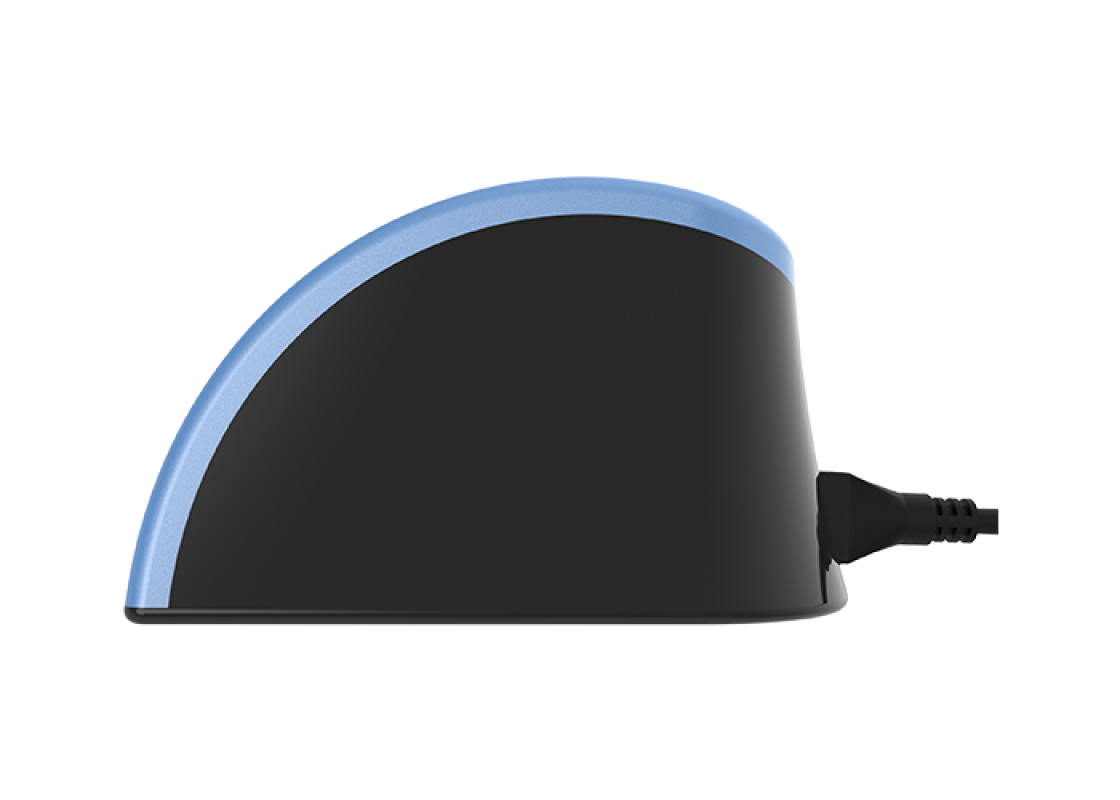

The Mantra MFS110 is an L1 fingerprint scanner built for Aadhaar authentication and other identity checks where a certified device with hardware-based encryption is required. It captures 500 DPI images through an optical sensor, connects by USB 2.0 and works with Windows and Android. Mivanta supplies the MFS110 in bulk to dealers, system integrators, banking correspondent networks and enterprises across India.
Anti Ways
Cloud Based
Fingerprint Scanner
Temperature
Web
L1 fingerprint reader is a secure, rugged fingerprint scanner that ensures consistent image quality and precise results. This L1 fingerprint scanner is designed for many biometric-based identification applications. It is certified as FBI PIV-071006 as a compliant fingerprint scanner. This device has IP54 certification, which indicates that it is protected from dust and splashing water.
The L1 scanner is based on optical technology, which assures high-quality fingerprint scanning even when dusty, dirty, or rough fingers are scanned. developed for law enforcement, IT security, border administration, and national ID programs. Its advanced cryptography and ergonomic design make it an excellent performing and secure L1 biometric device for field operations.
- Scratch free Sensor Surface
- High speed USB 2.0 interface with secured communication
- MINEX Compliance Extractor
- Auto Finger Detection
- Lower FAR and FRR
- 500 DPI optical fingerprint sensor
- Supports Windows Operating Systems
- Supports Android Operating Systems
- PC/Network security
- E-commerce
- Groupware
- Time and Attendance System
- Smart Card Application
- Public Application
- AFIS
- Health & Medical
- UIDAI Auth Application
| Sensor Characteristics | |
|---|---|
| Fingerprint Sensor Type | Optical Sensor |
| Spatial Resolution | 500 DPI ± 2% |
| Platen Area | 14.0 mm × 17.0 mm |
| Image Size | 276 × 336 Pixels |
| Image Grayscale | 256 (8-bit Gray Level) |
| Light Source | Red LED |
| Maximum Acquisition Time | < 2 Sec (Placement to Template) |
| Approx. Dimensions (L × W × H) | 61 × 91 × 54 mm |
| Approx. Weight | 0.140 kg |
| Capture Mode | Auto capture with built-in quality check (NIST quality considerations) |
| Security | |
|---|---|
| Crypto Operation | Hardware-based RSA2048 key generation, AES-GCM-256, SHA-256, TRNG support |
| Secure Memory | TEE support, secure memory with key wrapping feature |
| Secure Boot | Supported by device |
| Electrical | |
|---|---|
| Operating Voltage | 5V ± 5% (USB powered) |
| Operating Current | < 90 mA |
| Standby Current | 50 mA |
| Interface | USB 2.0 |
| Environmental | |
|---|---|
| Operating Temperature | 0 to 50°C |
| Storage Temperature | 0 to 50°C |
| Humidity | < 90% RH, Non-condensing |
| Compliance & Standards | |
|---|---|
| Biometric Data Format | ISO 19794-2 (Minutiae), ISO 19794-4 (Image Template – Encrypted PID) |
| EHS Compliance | RoHS |
| Safety | EN/IEC 62368-1, IS 13252 (Part 1) |
| EMI / EMC | CE, FCC Part 15B |
| Image Quality | FBI PIV, STQC |
| IP Rating | IP54 |
| Device Driver | WHQL Certified |
| Operating System | Windows x86 & x64, Android |
Get the latest downloads includes software & drivers upgrades.
Download DriversWhat makes the MFS110 an L1 device
L1 is the higher of the two security levels used for Aadhaar-registered biometric devices. In the MFS110, fingerprint capture and encryption happen inside the scanner itself, with hardware-based RSA 2048 key generation, AES-GCM-256 and SHA-256 support, and secure memory with key wrapping. The scanner carries STQC and FBI PIV image-quality compliance, and its ISO 19794-2 minutiae output works with standard biometric applications.
Mantra MFS100 vs MFS110: which one should you buy
Many buyers still search for the MFS100, so the difference is worth stating plainly. The MFS100 is an L0 device. The MFS110 is an L1 device. UIDAI has moved Aadhaar authentication to L1 devices, which means an MFS100 can no longer be used for Aadhaar-based services. For new purchases and for replacing older MFS100 units, the MFS110 is the correct choice.
| Mantra MFS100 | Mantra MFS110 | |
|---|---|---|
| Security level | L0 | L1 |
| Aadhaar authentication | No longer accepted under current UIDAI rules | Supported with RD Service |
| Best for | Non-Aadhaar uses only | New purchases and MFS100 replacements |
Where the MFS110 is used
The MFS110 is a common choice for Aadhaar authentication and eKYC, AePS and banking correspondent counters, CSC and government service centres, and PC or network login. It also fits attendance projects that run on a PC-connected fingerprint reader. For eye-based verification, Mivanta also supplies the IRIS scanner range, and the full Aadhaar biometric devices category lists compatible options.
Drivers, RD Service and setup
Drivers are available from the Drivers tab on this page, which links to Mantra's download portal. For Aadhaar use, the device needs an active RD Service registration, which is tied to the scanner's serial number and renewed as per Mantra's process. Once the driver and RD Service are installed, the scanner works as a plug-and-play USB device.
Buy the MFS110 in bulk from Mivanta
Mivanta is a venture by Mantra Softech and supplies the MFS110 through its PAN India B2B network. Dealers, system integrators, CSP networks and enterprise buyers can share the quantity and delivery city through the Inquiry button and receive a quotation from the sales team. Browse the wider Mantra range or the fingerprint scanner category to compare models. For attendance terminals with a built-in display, see fingerprint devices.
Frequently asked questions
The MFS100 is an L0 device and the MFS110 is an L1 device. L1 means fingerprint capture and encryption are handled inside the scanner using secure hardware. UIDAI has moved Aadhaar authentication to L1 devices, so the MFS110 is the model to buy for Aadhaar work and for replacing older MFS100 units.
Yes. The MFS110 is an STQC-certified L1 fingerprint scanner designed for Aadhaar authentication, eKYC and similar identity checks. It needs an active RD Service registration on the device to be used for Aadhaar services.
Yes, for Aadhaar-based use. RD Service is registered against the scanner and renewed as per Mantra's process. Keep the device serial number handy when you register or renew.
The MFS110 supports Windows (x86 and x64) and Android. It connects over USB 2.0 and is powered directly from the USB port at 5V.
A capture, from finger placement to template, takes under 2 seconds. The device uses a 500 DPI optical sensor with auto finger detection and a built-in quality check, so poor placements are flagged instead of being accepted.
Use the Drivers tab on this page. It links to Mantra's download portal, where Windows and Android drivers and RD Service software are available.
Yes. Mivanta, a venture by Mantra Softech, supplies the MFS110 to dealers, system integrators, banking correspondent networks and enterprise buyers across India. Use the Inquiry button with your quantity and delivery city to get a quotation.
