Time Attendance & Access Control System
Fingerprint Time Clock

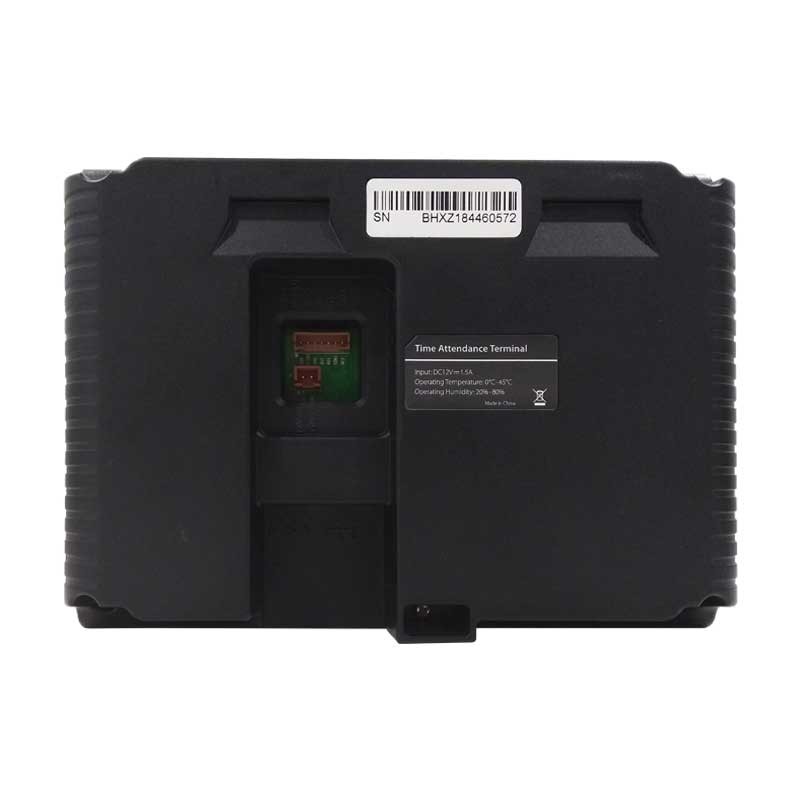

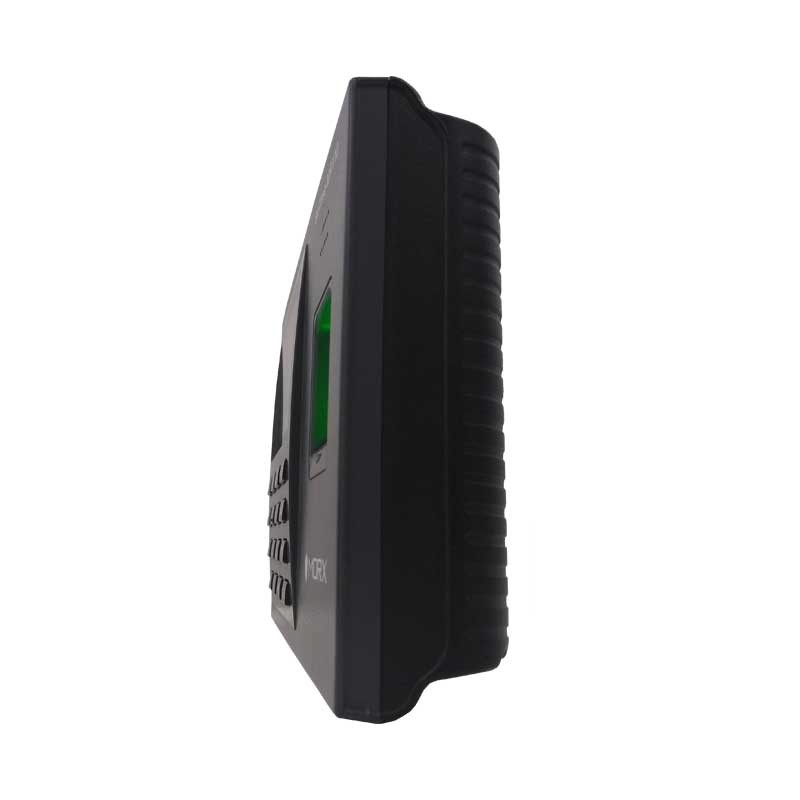

BioTime MR 110 is a fingerprint Time Attendance & Access Control Terminal, which can connect with Electric lock, Exit button. With SSR report(self-service Report) stored in the time clock. The 2.8inch TFT screen can display more information vividly, including fingerprint image and verification result etc. TCP/IP communication is a standard function which makes sure the data transmission between terminal and PC can be easily done within several seconds. Internal backup battery insures the device working normally when the power cut off suddenly. It's an ideal product for SMB market.
| Technical Specification | |
|---|---|
| Display | 2.8 inch TFT Screen |
| Fingerprint Capacity | 2,000 |
| ID Card Capacity | 2,000 Proximity card |
| Record Capacity | 2,00,000 |
| Communication | TCP/IP, USB-host |
| Battery | Inbuilt Battery Back-up |
| Standard Functions | Workcode, SMS, DLST, Self-Service Query, T9input, SSR report(optional), Automatic Status Switch , 9 digit User ID |
| Access Control Interface | Electric Lock, Exit Button |
| Software | PayTime / Minop |
| Power Supply | DC 12V 1.5A |
| Operating Temp. | 0°C ~ 45°C |
| Operating Humidity | 20% ~ 80% |
| Dimension | 185×140×30 mm |
| Certication | CE, FCC, RoHS |
