MORX HA12
UHF Solution
12 Dbi Long Range RFID Antenna
- 12dBi Long Range RFID Antenna
- IP67 protection level, suitable for outdoor scenes
- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
Original appearance designed high-end UHF RFID Antenna, high gain but low standing-wave ratio brings performance.Engineering plastic housing, rugged construction, high protection level for wide using with our fixed reader, such as assets tracking, warehouse management, intelligent traffic management, vehicle tracking, production line management, intelligent weight measurement etc.
| Features |
|---|
| Low profile with high gain reading distance range up to 20m |
| Maximum efficiency and performance across the entire frequency band |
| Seamlessly compatible with different brand RFID readers |
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
| Physical Characteristics | |
|---|---|

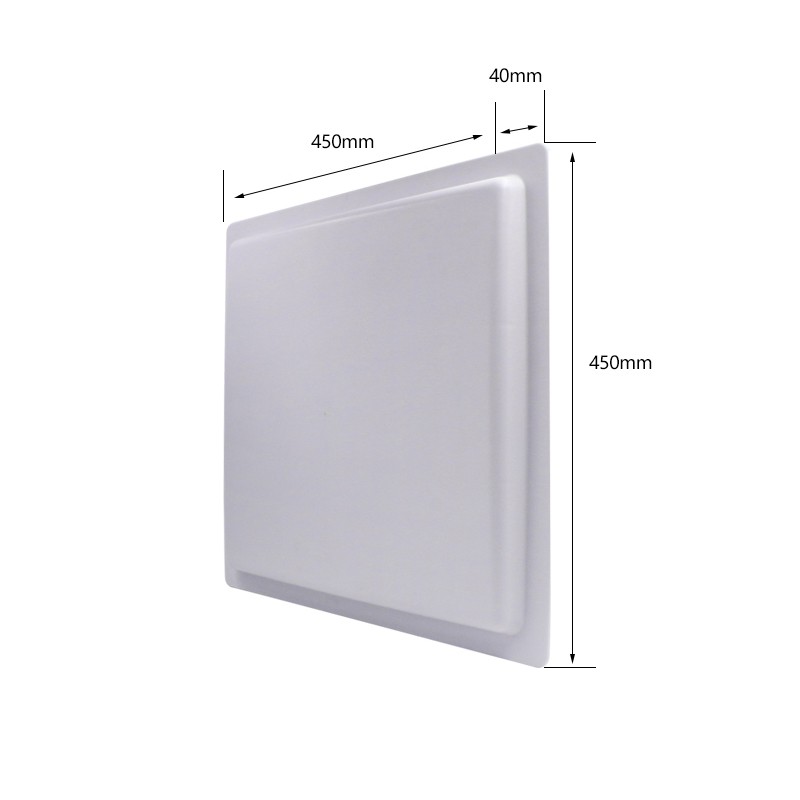

| Dimensions (L x W x D) | 445mm×445mm×40mm |
| Weight | 1.95Kgs |
| Random Material | Aluminum +ABS |
| Sealing | IP66 |
| Connector type / position: | TNC female or Customizable |
| Mounting | Bracket |
| Operating Temperature | -40- +70°C |
| Storage Temperature | -40- +70°C |
| Electrical Specifications | |
|---|---|
| Frequency Range | 860MHz~960MHz |
| Polarization | Circular |
| Far-Field Gain | 12 dBi |
| H side Beamwidth | 45° |
| E side Beamwidth | 45° |
| Typical VSWR | VSWR≤1.3 |
| Nominal Impedance | 50 (Ω) |
| Maximum Input Power | 100W |
| Lightning Protection | DC to ground |
