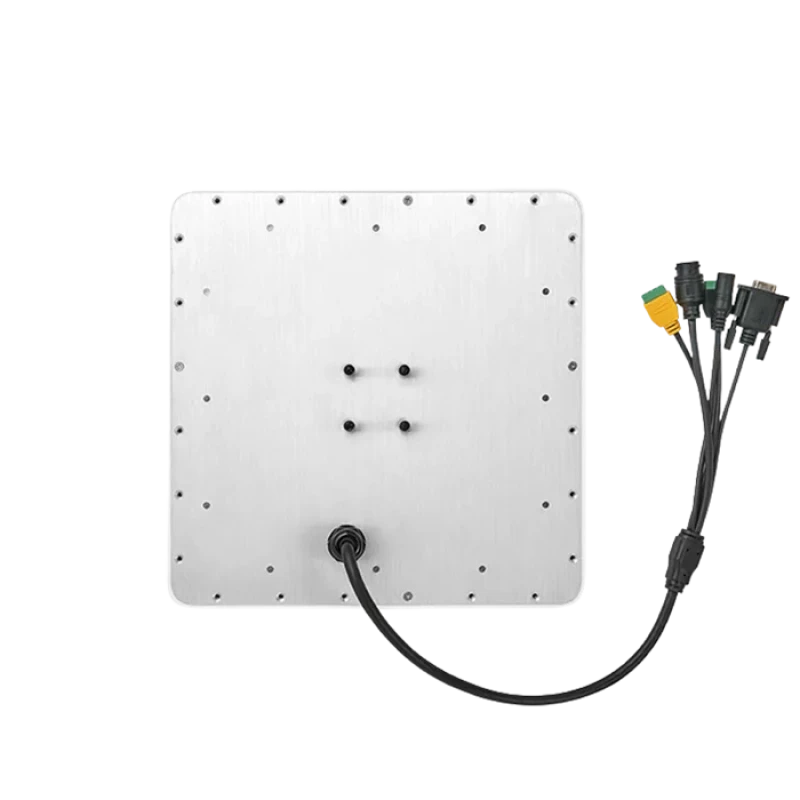

HR18

HR18

HR18

UHF Solution

Morx

UHF Integrated Reader

  • Logistics industry such as, warehouse management, cargo transfer tracking, etc.
  • Intelligent vehicle management e.g. vehicle inspection, customs clearance, etc.
  • Anti-forgery identification.
  • Production automation, parts flow management, etc.
  • E-ticketing and identification of personnel cards, etc.
  • Asset access management, etc.
  • HR18 UHF Integrated Reader achieves beyond-expected tag reading performance to meet various application scenarios
  • Rich communication interfaces (Ethernet, RS232, Wiegand, etc.)
  • The built-in buzzer can be set as the tag reading prompt sound
  • Support online upgrade
  • Support RSSI and tag data filtering
  • Support custom data output format
RFID Reader Specifications
SDK AND FIRMWARE MANAGEMENT
Firmware Upgrade Demo software
API Support Windows – .NET, Java SDK
Android – Java SDK
Linux – Java SDK
PHYSICAL CHARACTERISTICS
Dimensions 276mm×276mm×41mm
Weight 1.6kg (Without accessories)
Housing Material Aluminium + ABS
RFID CHARACTERISTICS
Air Protocols ISO/IEC18000-6C / EPC C1Gen2
Frequency 865MHz~867MHz
Chipset Impinj E310/QM100
Built-in antenna Circular 9dBi, VSWR ≤ 1.2:1
RF Output Power 0-33dBm (±1dBm) adjustable
Channel bandwidth <200KHz
Reading Distance 0-15m (According to Tag & Environment)
Anti-collision Support multi-tag inventory
Work Mode Fixed / hop frequency optional
CONNECTIVITY
Communications RJ45, RS232, Wiegand26/34/66
General Purpose I/O 1 optocoupler input, 1 relay output
Power supply DC 10V~30V
Working power consumption: <6W (read tags with 30dB output power)
Standby: <2W
ENVIRONMENTAL
Operating Temp. -20°C to +70°C
Storage Temp. -40°C to +85°C
Humidity 5-90% non-condensing (+25°C)
Sealing IP65
