Time Attendance & Access Control System

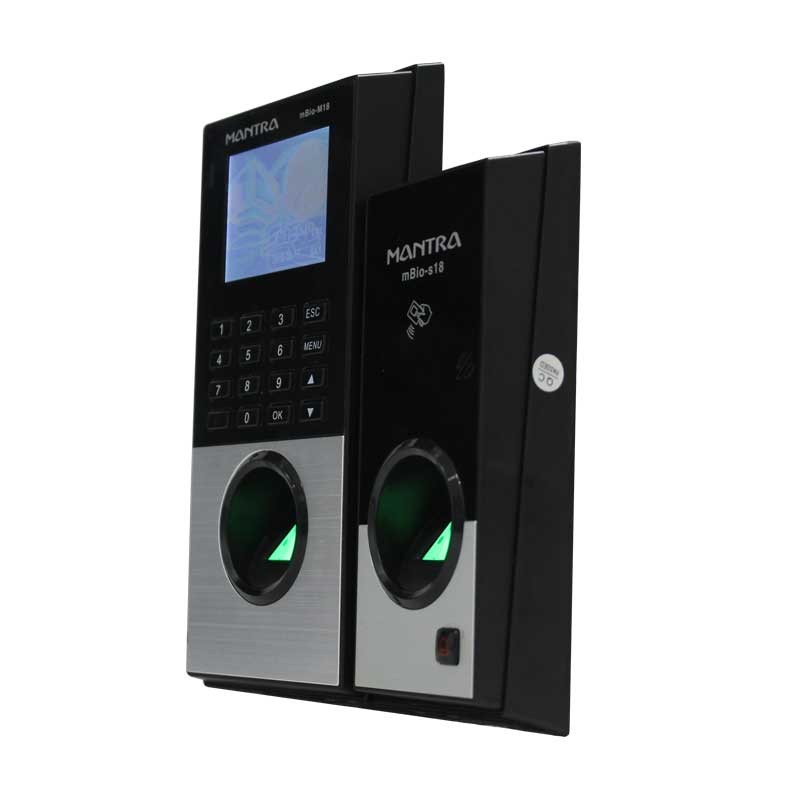

Access Control Terminal
mBio-M18 is a professional Color display fingerprint time attendance and access control system designed for medium to large size enterprise, it integrates fingerprint identification, built in RFID card reader, with TCP/IP Communication. It is possible to integrate all kind of applications like ERP, HRMS, Payroll, Attendance and SAP with the device. It support various communication interface like TCPIP, USB to communicate with Host PC. It also gives real-time transactions on transactions monitor.
| Body | |
|---|---|
| Display | 2.8" Color TFT Screen |
| Battery | NA |
| Dimension | 90*34*205 mm |
| Functionality | |
|---|---|
| Fingerprint Capacity | 1000 |
| ID Card Capacity | 1000 |
| Record Capacity | 100000 |
| Card Type | Proximity card |
| Identify mode | Finger, Card, Password |
| LED Indicator | 2 LED Status (Green, Red) |
| Voice Prompt | Yes |
| Identification Time | < 1 sec |
| Keypad Type | T9 input |
| Wiegand/RS485 Interface | RS485, Wiegand Input & Output 26/34 bit |
| Technical Specification | |
|---|---|
| Fingerprint scanner type | 600 DPI Optical Sensor |
| Communication | TCP/IP, USB |
| Push Data technology | Yes |
| FRR | 0.001 |
| FAR | 1.0E-6 |
| Operation Humidity | 20% ~ 80% |
| Operation Temperature | 10° C ~ 60° C |
| Power | DC 9~12V 2A |
| Finger placement angle | 360° rotation allowed |
| Software | PayTime / Minop |
| Accessories | |
|---|---|
| Wiring Connections | External Finger/Card Reader, Electric Lock, Exit Button, Alarm, Bell |
