MORX HR15T

MORX HR15T

MORX HR15T

UHF Solution

Morx

UHF Integrated Reader for Toll Tax

  • Powered by Impinj RAIN RFID with reading range up to 15 mtr

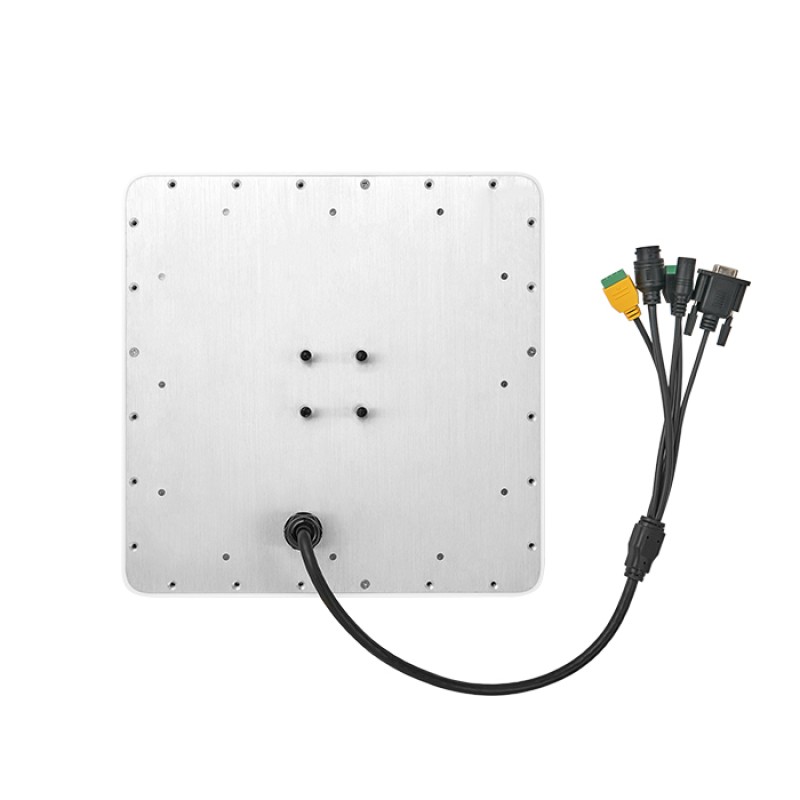

  • Communication interfaces: RJ45, RS232, RS485, WG26/WG34/WG66, GPIO
  • Operating Voltage DC 24V/2.5A power adapter

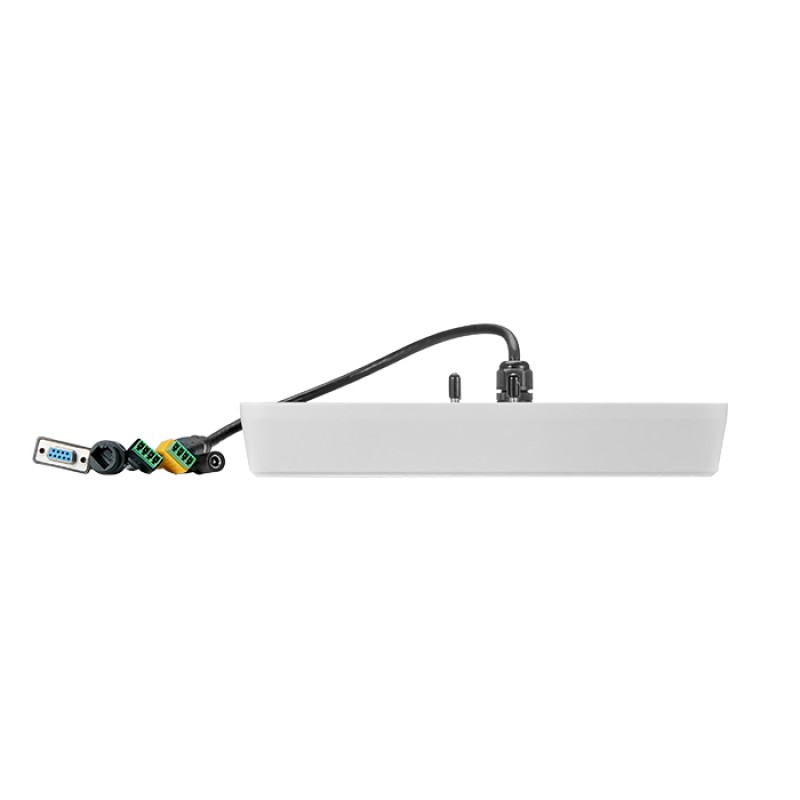

  • Industrial, installation-friendly I/O connector. EPC+TID+User memory for FastTag Application
Access Control

Access Control

RFID

RFID

TCP IP

TCP IP

Toll Tax

Toll Tax

UHF

UHF

USB

USB

Online Support 24/7

Online Support 24/7

  • High performance Integrated UHF RFID reader RFG-HR15T, supporting ISO 18000-6C protocol, long range RFID reading, fast identification, excellent multi-tag reading, strong Anti-collision, automatic reading, white list functions.
  • Widely used fixed asset management, logistic, warehouse inventory, products tracking transshipment, e parking system vehicle management, production automation etc.
  • Impinj IndyE510/E710 (Optional) chipset offer high performance

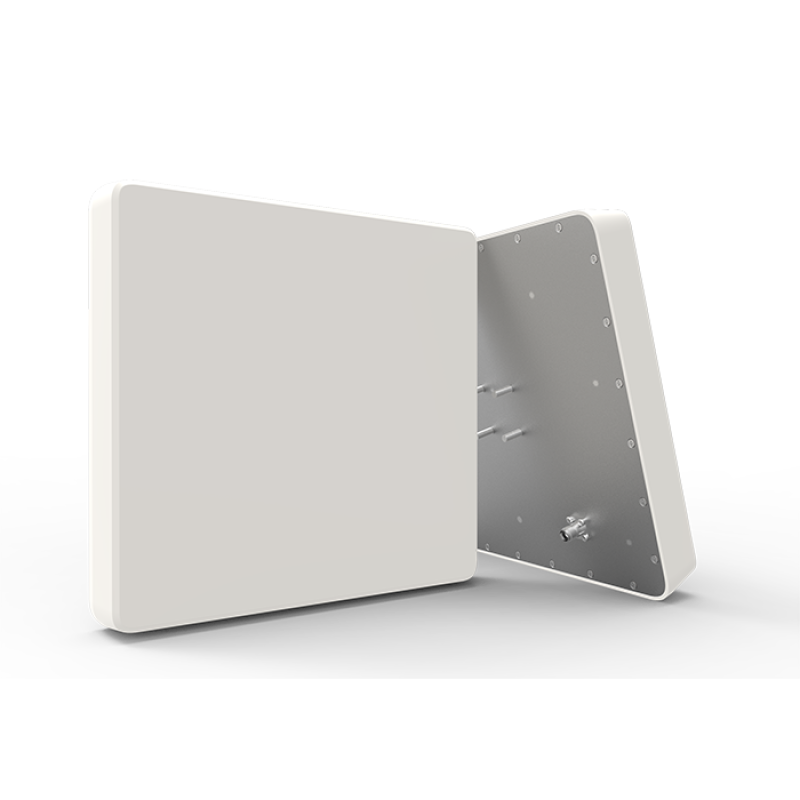

  • Aluminum casting/waterproof housing apply to all weather industrial scenarios
  • Various communication / software Interfaces helps faster application system
  • Different developing languages SDK meet different developer needs
  • Excellent communication protocol architecture support faster data processing algorithm
  • Integrated design supports better deploy /installation / engineering / wiring
  • Special application projects customized interfaces / data transferring prolongable
  • Seamlessly compatible with RFID middleware for rapid implementation of large projects
  • Widely used in E-parking, garbage truck, feeding vehicle, access control and so on
  • Fixed asset management in offices, plants, and campuses for automated identification and auditing of tagged assets.
  • Logistics and warehouse inventory operations, including products tracking and transshipment at docks, staging areas, and storage zones.
  • E‑parking and vehicle management systems for automated gate access and parking monitoring.
  • Production automation and WIP tracking on industrial lines where multi‑tag, long‑range reading is required.
  • Special vehicle and service operations such as garbage trucks, feeding vehicles, and access control points requiring rugged, outdoor‑rated RFID.
Specification
HARDWARE, OS AND FIRMWARE MANAGEMENT
Firmware Upgrade Demo software / Telnet
API Support Windows - .NET, C++ and Java SDK Android - Java Linux platform - C and Java SDK
PHYSICAL CHARACTERISTICS
Weight Main body 1.4Kgs
Dimensions 276mm * 276mm x 40mm
Housing Material Aluminum plate / ABS cover
RFID CHARACTERISTICS
Air Protocols ISO/IEC18000-6B, 6C / EPC C1 Gen2
Frequency USA: 902 MHz-928MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302208) CN: 920-925MHz (CMIIT)
Chipset Impinj E510 (E710- Optional)
Programing Functions Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Mod bus compatible) RF Micron / EM Temperature sensor custom Services
Supportable /Optional Russian / Japan / Korea / Malaysia / Thailand/ other customizable
Built-in antenna Circular 9dBi, VSWR ≤ 1.2:1
Output Power OdBm-30dBm (+1 dBm) adjustable
Channel bandwidth >200KHz
Reading Distance 0-15m (According to Tag & Environment)
Anti-collision RSSI/multi-tag/intensive inventory supportable
Work Mode Fixed/hop frequency optional
CONNECTIVITY
Communications RJ45, RS-232, RS-485, Wiegand
General Purpose I/O 1 optocoupler input, 1 pair 5V output or Wiegand output (Wiegand output is shared with 5V output)
Power supply DC 24V/2.5A (DC 9V ~ 30V,30W)
ENVIRONMENTAL
Operating Temp. -30-+70°C
Storage Temp. -40- +85°C
Humidity 5-90% non-condensing (+25°C)
Sealing Ip66

Downloads

Connection Diagram

Connection Diagram
