Exit Push Door Release Button Switch Stainless Steel Rectangle
Access Control
Fire Scenario
Switch
Temperature
Wall Switch

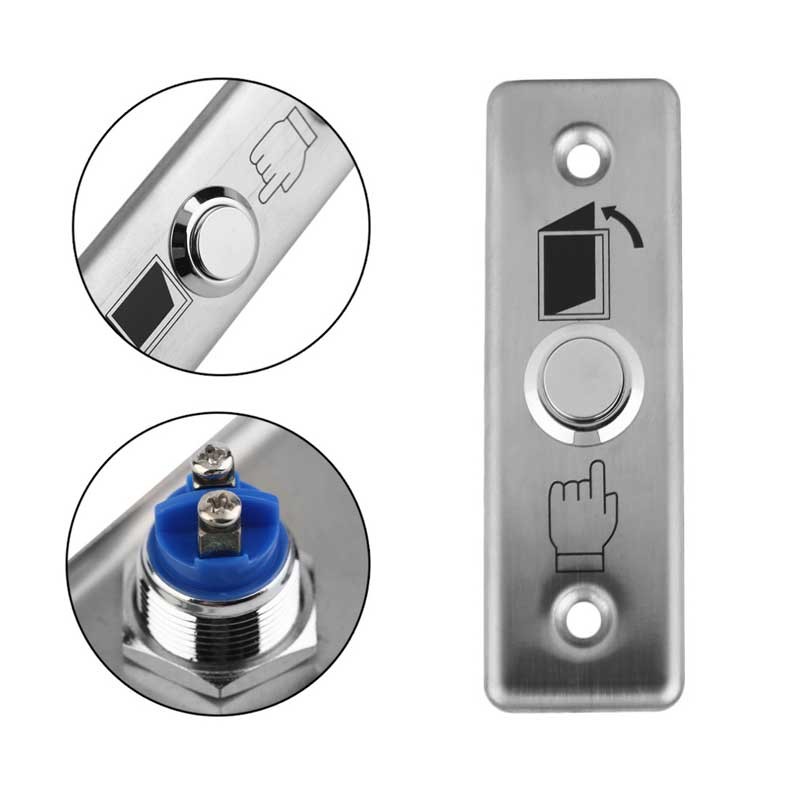

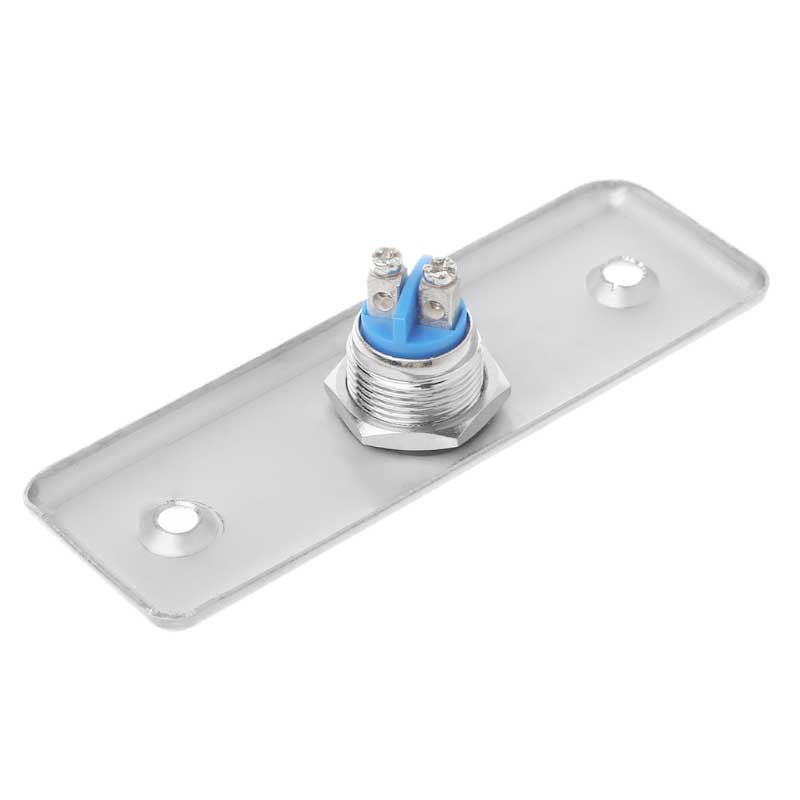

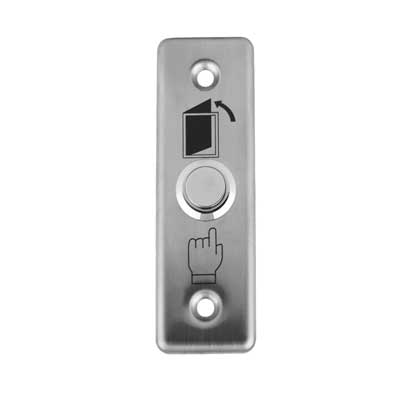

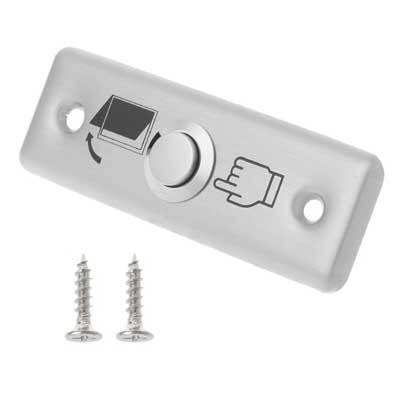

Exit Push Door Release Button Switch Stainless Steel Rectangle For Electric magnetic Lock Door Access Control.Stainless steel Panel with Nickel-plated copper button, 500000 times life, Auto reset, Can be used as door release button, it's widely used for access control system.
Features:-
- Stainless steel Panel with Key,Nickel-plated copper button
- Mechanical Life: 500000 tested
- Contact Output: NO. (NC.&NO. contact can be customized)
- Suitable for Door: Hollow Door
| Body | |
|---|---|
| Current rating | 3A 36V DC maximum with NO \ NC \ COM |
| Switch with stand voltage | 250V |
| Output mode | Normally open / normally closed |
| Reset mode | automatic reset |
| Working temperature | -20 ~ 60 ° |
| Size | 92mm*28mm*25mm |
| Protruding button | 23 * 2mm |
| Standard structure | Stainless steel panel with strongly style and Stainless steel switch |
| Performance testing | 1000000 times aging test. |
| Applicable type | for hollow door frame |
| Applicable temperature | -10 ~ +55 ° (14-131F) |
| Applicable humidity | 0 ~ 95% (relative humidity) |
| Product weight | 0.18kg |
