UHF Solution

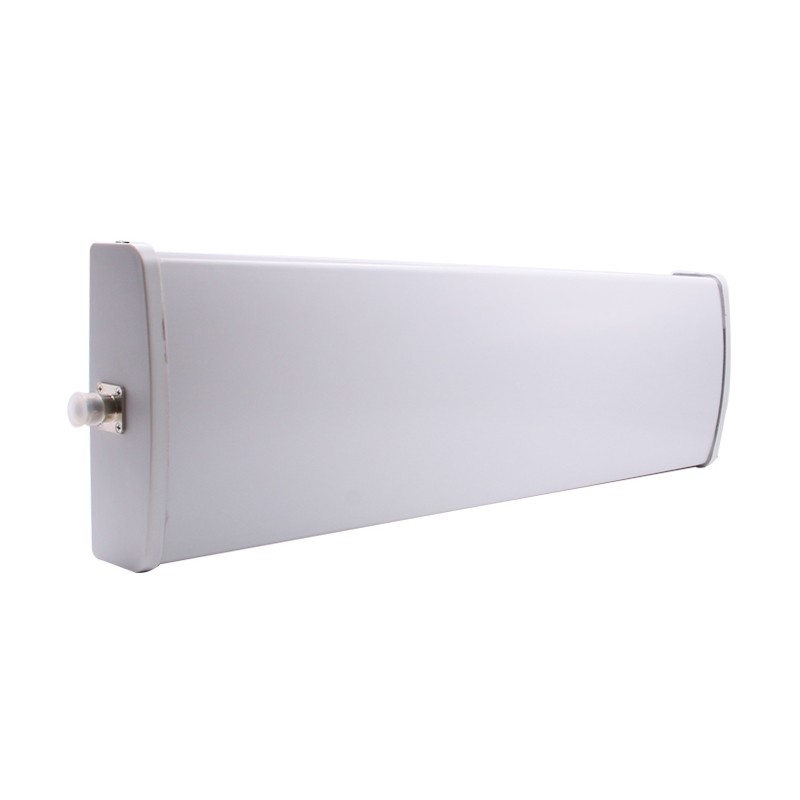

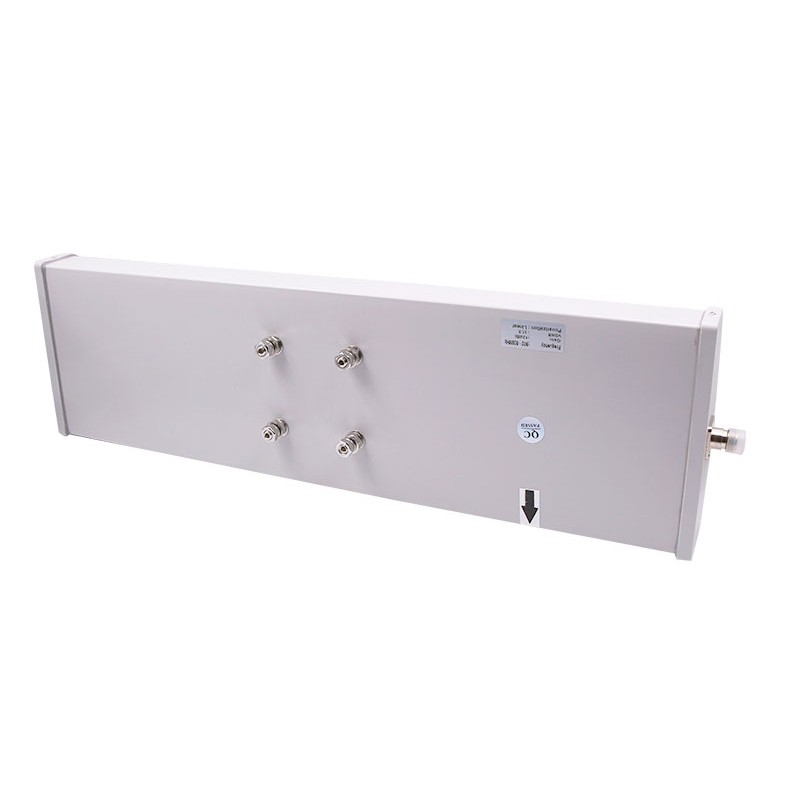

Specialized original appearance designed for Vehicle management, Linear polarization, high-end UHF RFID Antenna, high gain but low standing-wave ratio brings best performance. Engineering plastic housing, rugged construction, high protection level for wide using with our split-type fixed reader, such as ETC, parking management, intelligent traffic management, vehicle tracking, traffic analysis etc.
| Features |
|---|
| Low profile with high gain, reading distance range up to 20m |
| Maximum efficiency and performance across the entire frequency band |
| Seamlessly compatible with different brand RFID readers |
| Applications |
|---|
| Widely used in ITS/ETC, access control, vehicle management, etc. |
| Physical Characteristics | |
|---|---|
| Dimensions (L x W x D) | 600mmx180mmx55mm |
| Weight | 0.6KG |
| Random Material | Aluminum +ABS |
| Sealing | IP66 |
| Connector type / position: | N female or Customizable |

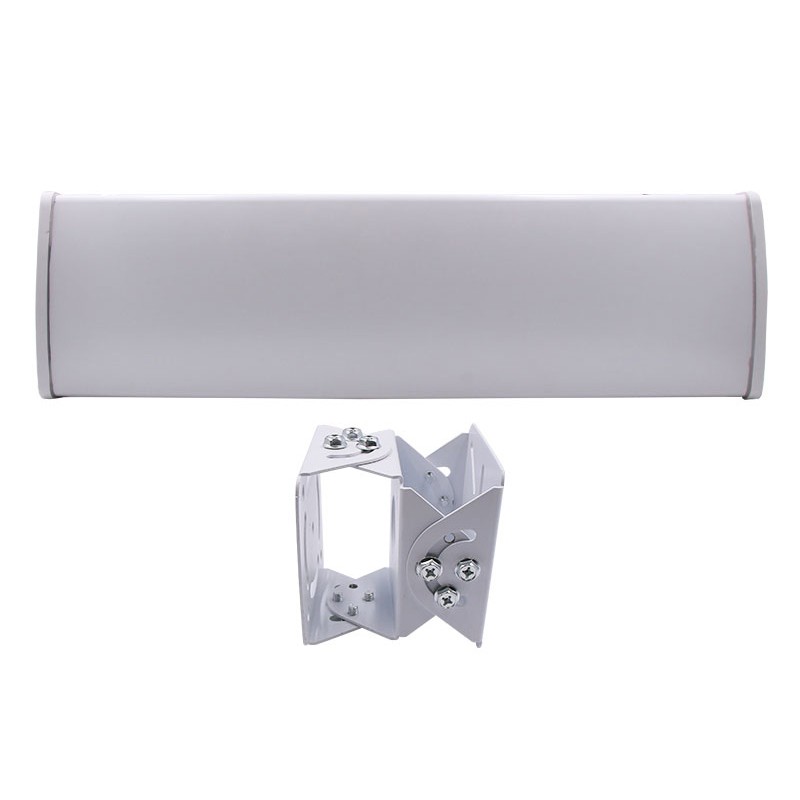

| Mounting | Bracket |
| Operating Temperature | -40-+85°C |
| Storage Temperature | -40-+85°C |
| Electrical Specifications | |
|---|---|
| Frequency Range | 840MHZ 960MHz |
| Polarization | Horizontal |
| Far-Field Gain | 12 dBi |
| H side Beamwidth | 50° |
| E side Beamwidth | 70° |
| Typical VSWR | VSWR≤1.3 |
| Nominal Impedance | 50 (Ω) |
| Maximum Input Power | 100W |
| Lightning Protection | DC to ground |
