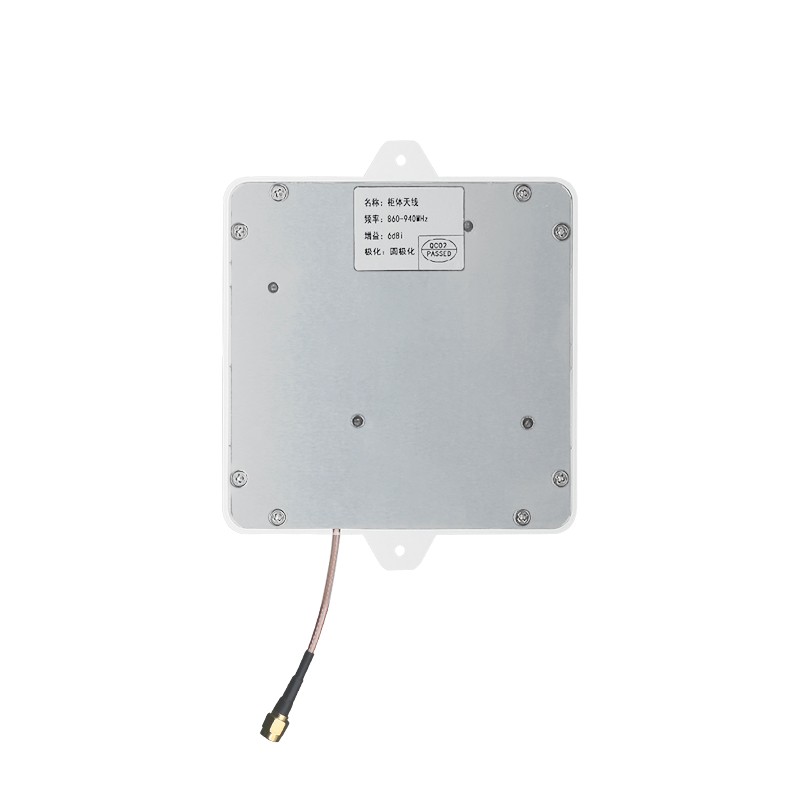

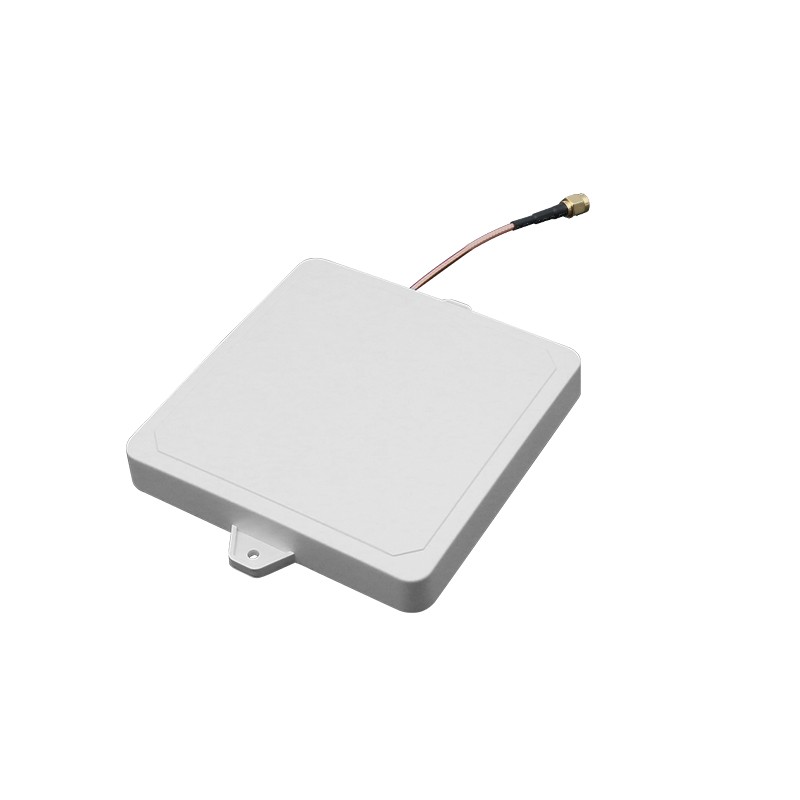

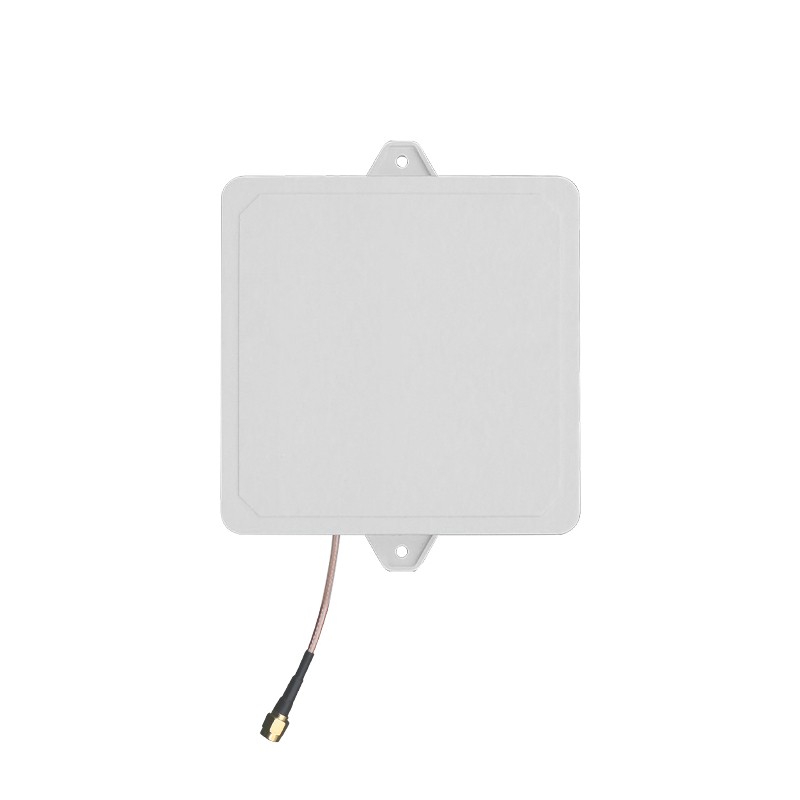

UHF 6dBi smart cabinet antenna
UHF 6 dBi smart cabinet antenna is a near‑field, directional RFID antenna designed for short‑to‑medium range item‑level identification.
Compact and lightweight, it is optimized for integration into cabinets, shelves, and small enclosures where space is limited.
Provides stable circularly polarized coverage to reliably read tags regardless of orientation within its beam.
Supplied with a standard 3‑meter feeder (RG58) and optional customized cable types and lengths for flexible installation.
Suitable as an add‑on antenna for UHF RFID readers in applications that require controlled read zones and minimized stray reads.
| Specification | |
|---|---|
| Frequency | 868-868MHz (EU) 902~928MHz(US) |
| Gain | 6dBi |
| Reading distance reference | 0-6 meters (depending on reader and tag) |
| Feeder | Side lead-out |
| Polarization mode | Circular polarization |
| Radiation angle | Horizontal: 106° Vertical: 106° |
| Operating temperature | -40～55℃ |
| Installation method | Mounting ear installation |
| Standard | Antenna*1 |
| Maximum power | 50W |
| Axis ratio | ≤2dB |
| Standing wave ratio | ≤1.4° |
| Impedance | 50 Ω |
| Lightning protection | DC grounding |
| Random color | White |
| Radiative Materials | copper |
| Antenna cover material | ABS |
| Antenna size | 156*130*20mm |
| Antenna Net Weight | 0.2kg |
