MORX CR06
UHF Solution
Mid Range Reader with TCP/IP and Relay
- Reading range 6 mtr (9 Dbi Linear Antenna)
- Reading performance <200 tags

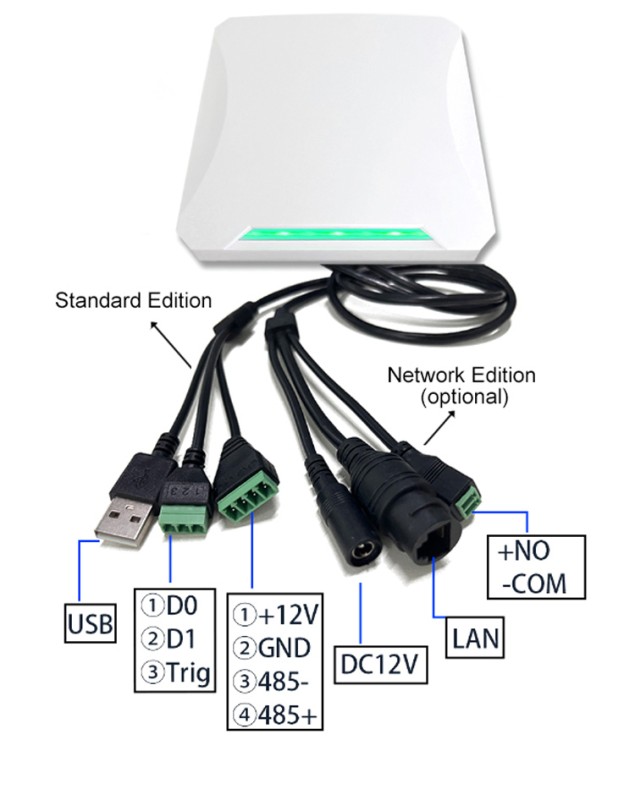

- Communication Interface: RS232, WG26/WG34, TCP IP, RS 485
- Operating Voltage DC 12V/2A power adapter
- ARM7 core processor.
Access Control
TCP IP
USB
100% Money Back Guarantee
Free Shipping
Online Support 24/7
Application areas where it is used:
- Vehicle and parking access control solutions for residential societies, offices, and commercial parking lots.
- Boom barrier automation enabling hands-free vehicle entry and exit at gates and toll-like checkpoints.
- Warehouse gates and dock doors for tracking pallet, carton, or trolley movements.
- Fixed asset and logistics checkpoint tracking at entry and exit locations.
- Industrial automation points on conveyors or production lines for tagged item detection.
- Integrated UHF RFID reader with built-in antenna, optimized for mid-range (about 5–6 m) reading in parking and gate applications.
- Supports UHF ISO18000-6C / EPC GEN2 tags, making it compatible with common windshield, vehicle, and asset tags.
- Offers multi-tag reading with anti-collision for reliable detection of several tags in the read zone.
- Provides multiple communication interfaces (typically RS232, TCP/IP, and access-control-friendly outputs like Wiegand/relay) for easy system integration.
- Rugged, compact housing suitable for outdoor mounting near boom barriers, gates, and dock doors in vehicle and warehouse environments.
Logistics and warehousing management: item flow and warehousing management, as well as flow management of mail, parcels, transport luggage, etc.
| Technical Specifications | |
|---|---|
| System parameters | AFMT+UHF module |
| Working frequency | European standard (865~ 867MHz) Other multinational frequency standards (customized) |
| Recognition distance | 6 meters |
| Group read performance | >50 tags |
| Tag protocol | Supports IS01 8000-6C (EPC GEN2) protocol electronic tags |
| Frequency hopping | Wide spectrum frequency hopping (FHSS) or fixed frequency,can be set by software |
| Way of working | Automatic mode, trigger mode, interactive mode, etc. |
| RF power | 0-30dBm (power software adjustable) |
| Antenna parameters | 9dBi linear polarized antenna (built-in) |
| Support interface | Standard RS232, RS485, Wiegand 26, Wiegand34, optional RJ45, WIFI, GPRS, etc. |
| Operating Voltage | 12V/2A |
| Identify tips | Beeps or LED Flashes |
| Power consumption | 1W |
| Operating temperature | -20 C ~ +70 C (out of range needs to be customized) |
| Working humidity | 20% ~ 95% (no condensation) |
| Storage temperature | -40 C, +125 C |
| Size | 180x180x47mm |
| Net weight | 900G |
| Gross weight | 1500G |
Low power, stable and reliable reading and writing distance
Fast data reading rate
Tag wake-up recognition
Multi-region and multi-tag reading
Multi-protocol compatible
Waterproof appearance design
IP66 waterproof grade, strong and durable.
Intelligent parking lot management: parking lot management and charging automation
Production line management: identification of fixed points of production processes
Product anti-counterfeiting detection: Use the write protection function of the memory in the label to identify the authenticity of the product
Other fields: Systems have been widely used in club management, libraries, student status, consumption management, attendance management, dining management, swimming pool management and other systems.
